INJORA Metal Gear 14KG INJS014 Digital Low Profile Servo for 1/10 RC On-Road Touring Drift Car Tamiya Kyosho Helicopter Model
INJORA Metal Gear 14KG INJS014 Digital Low Profile Servo for 1/10 RC On-Road Touring Drift Car Tamiya Kyosho Helicopter Model
Couldn't load pickup availability
SPECIFICATIONS
Brand Name: INJORA
Origin: Mainland China
Material: Composite Material
Recommend Age: 12+y
Recommend Age: 14+y
RC Parts & Accs: Servo Accessories
Size: 1PCS
For Vehicle Type: Cars
Use: Vehicles & Remote Control Toys
Upgrade Parts/Accessories: Servo
Remote Control Peripherals/Devices: Servo
Tool Supplies: Assembled class
Quantity: 1 pcs
Technical parameters: Value 2
Model Number: for RC Model
Four-wheel Drive Attributes: Assemblage
Wheelbase: Bottom Plate

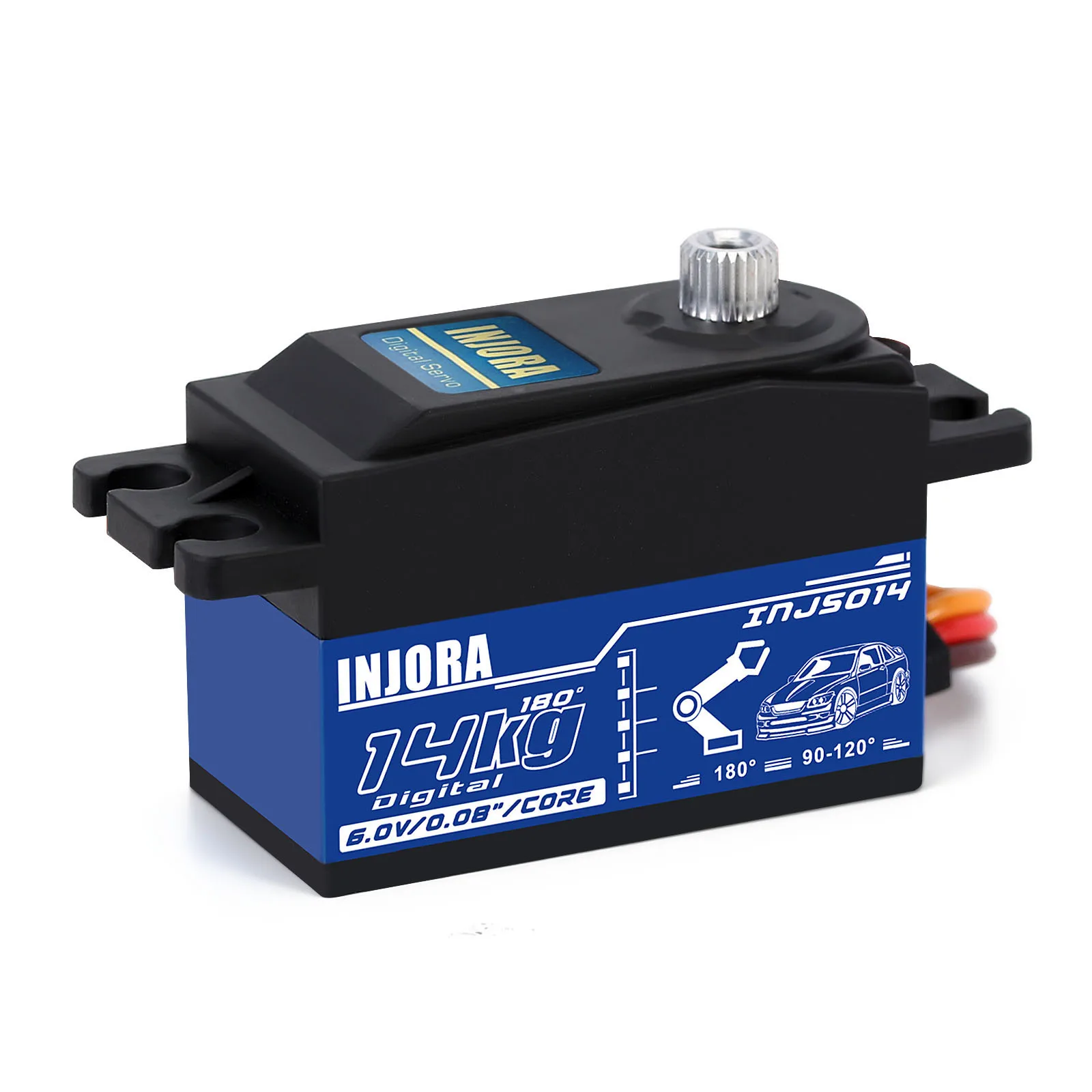

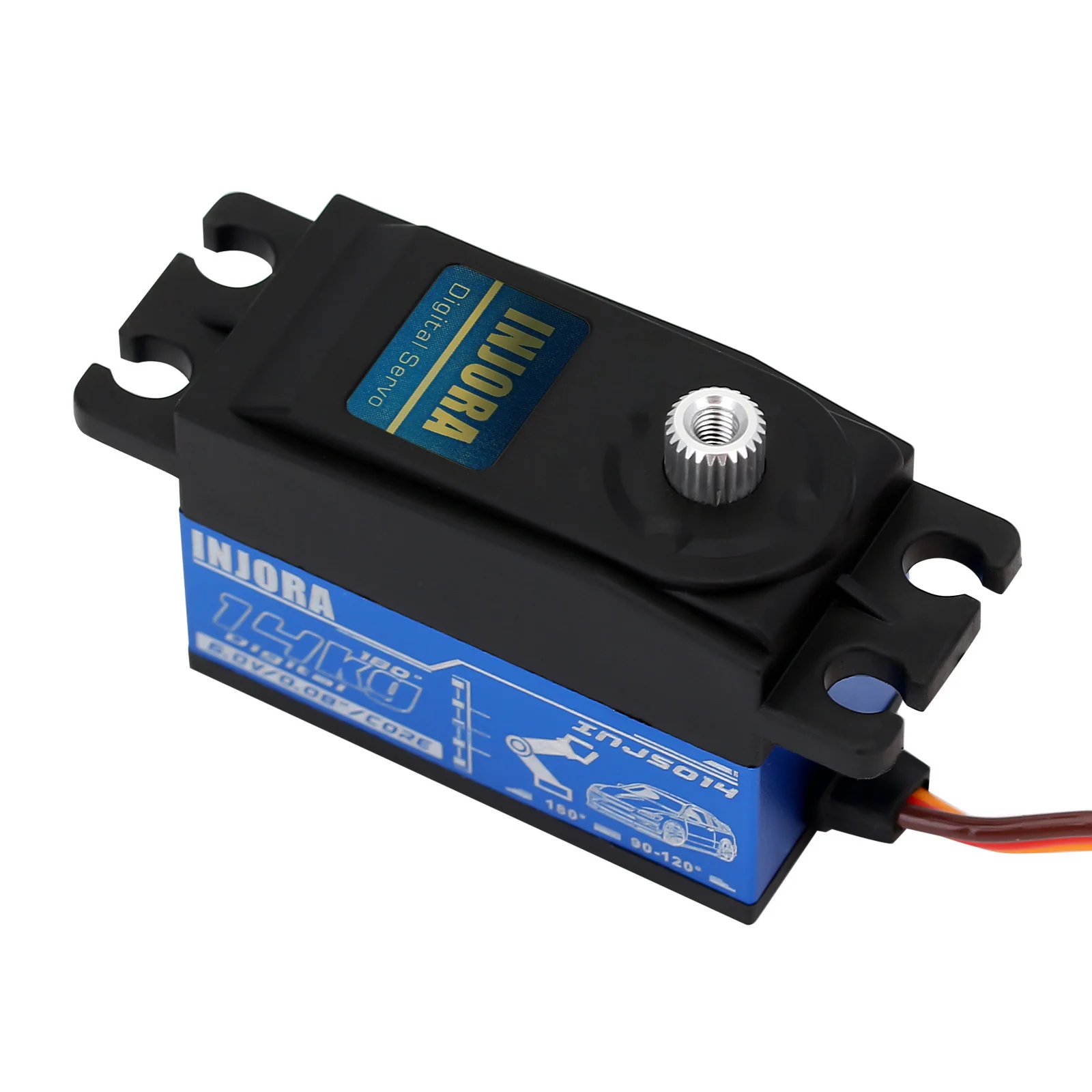

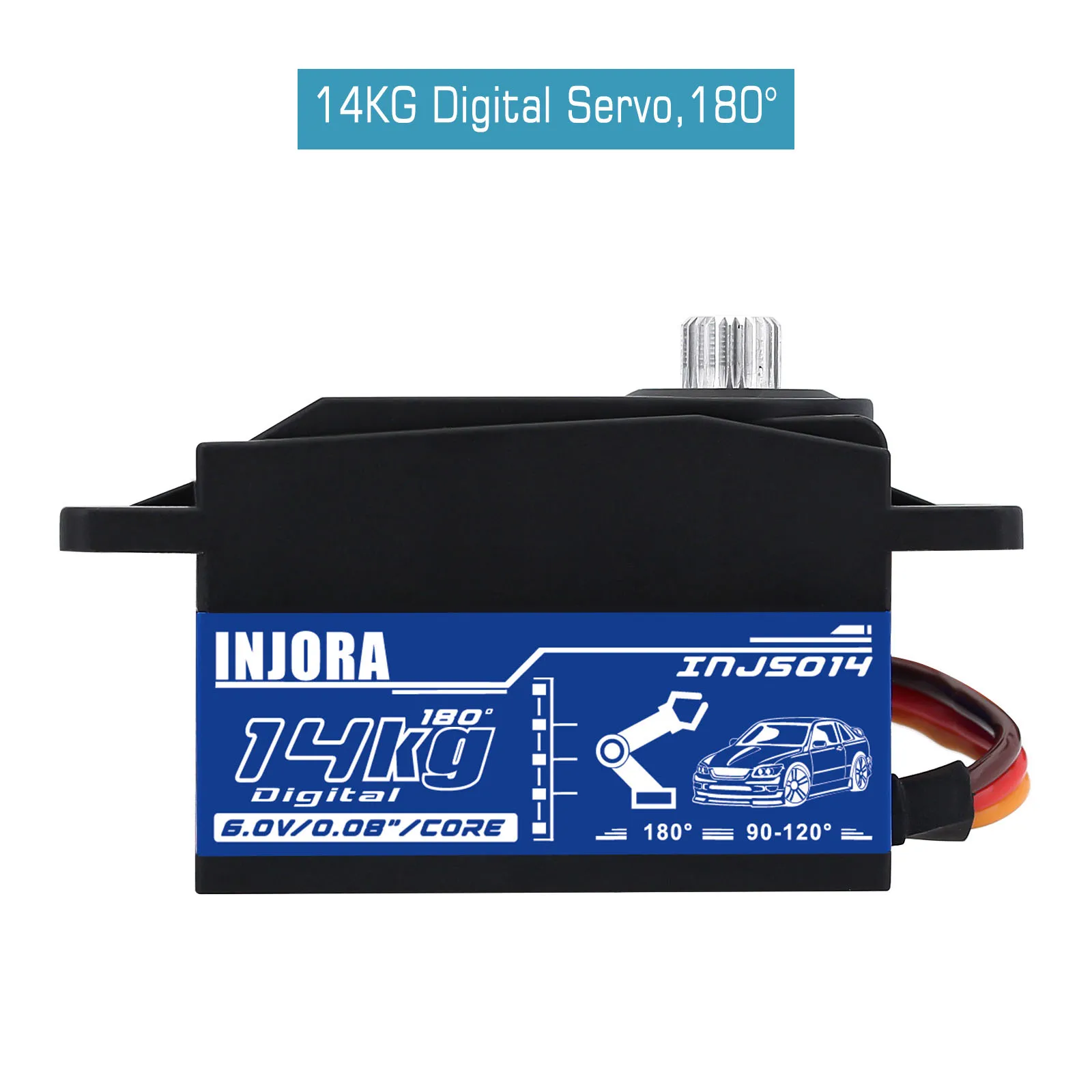

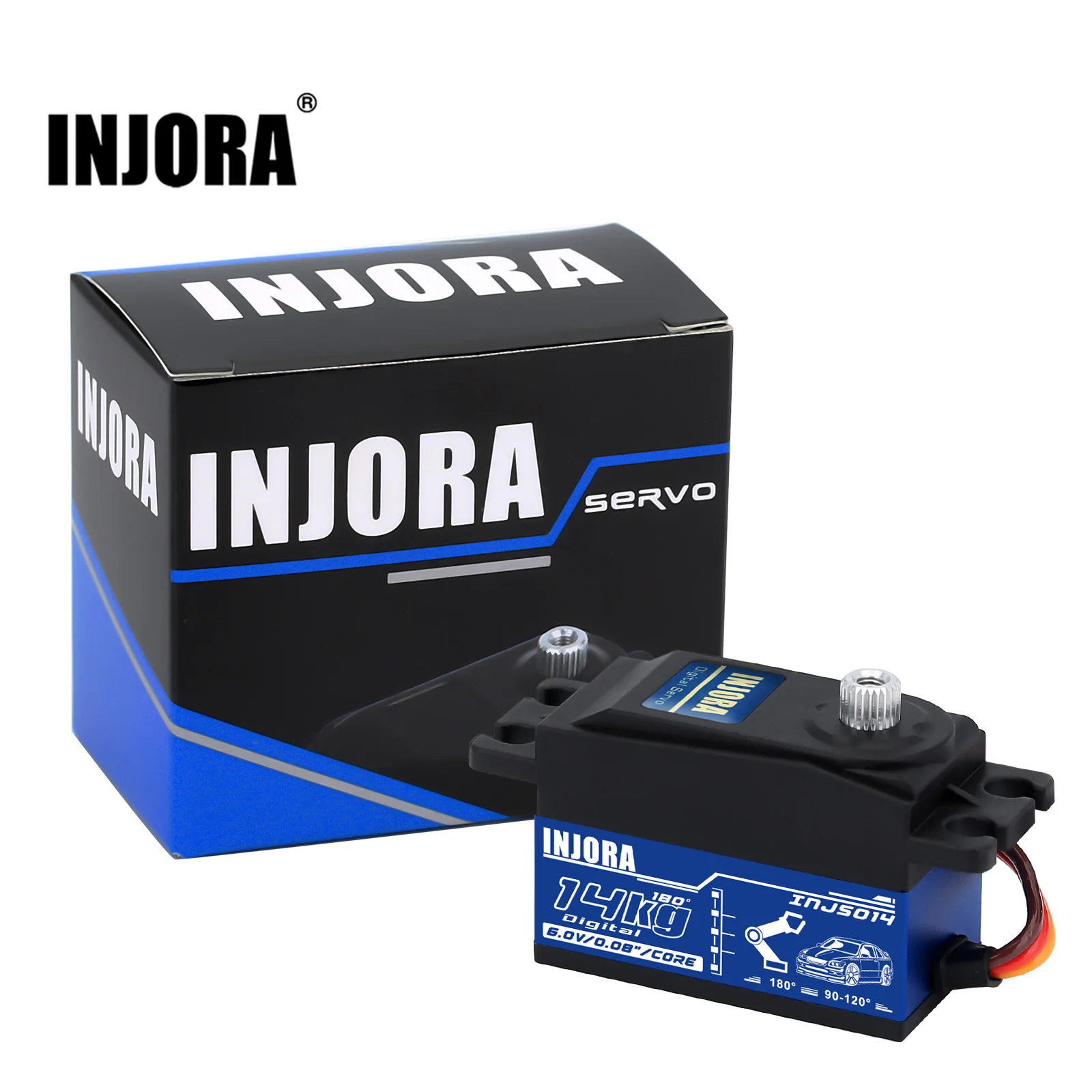

This is the INJORA Low Profile Digital Metal Gear Servo.
INJORA Servos have been developed to provide enthusiasts with high quality servo's that will exceed expectations at every level.
Features:
Low Profile case saves space and weight.

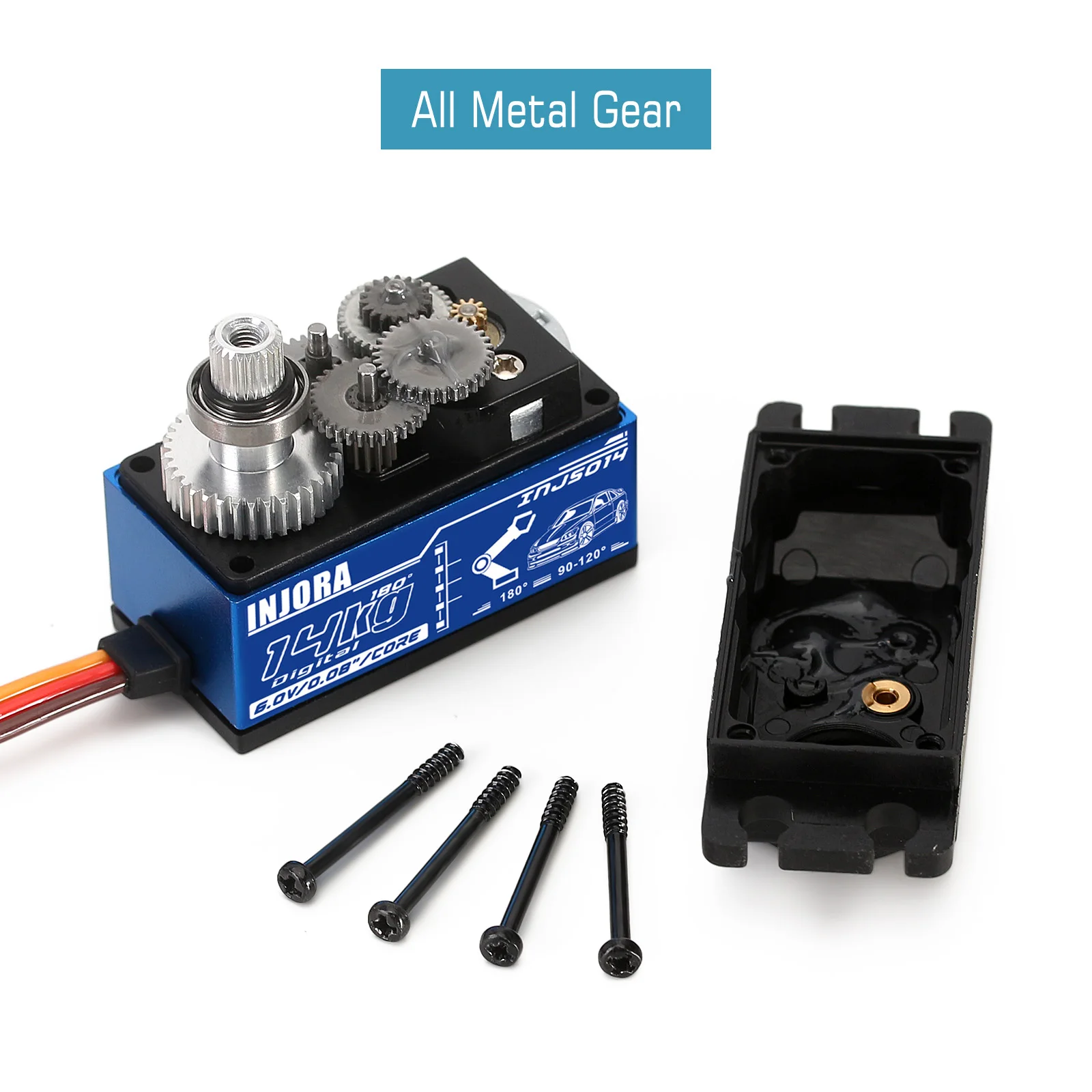

Full metal gears and dual ball bearings
Plastic case with aluminum center band
0.10 transit speed, and 11.2kg of torque @ 4.8V
0.08 transit speed, and 14kg of torque @ 6.0V
Ideal for any 1/12 to 1/10 scale vehicle application

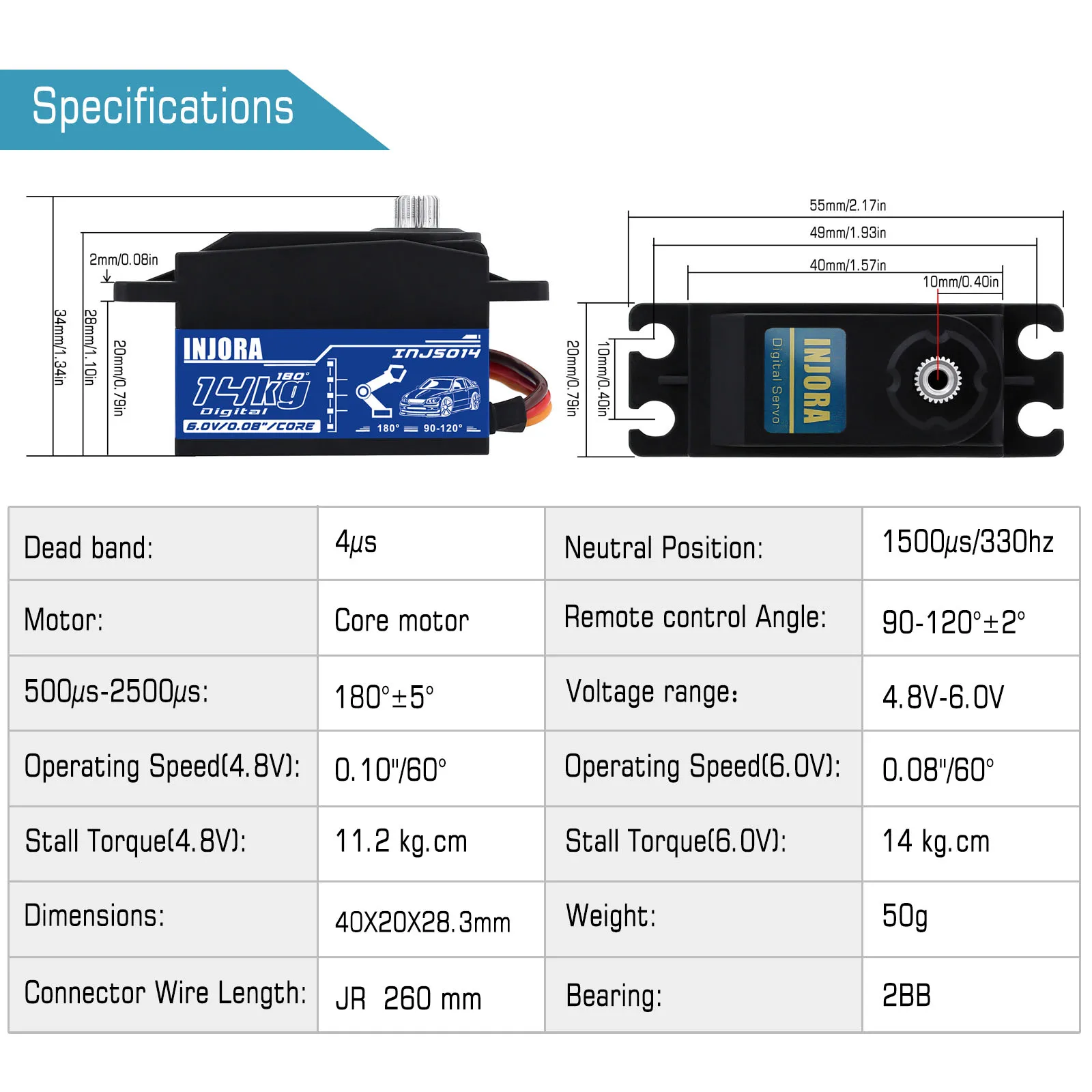

Specifications:
Item Number: INJS014
Dead band:4μs
Neutral Position:1500μs/330hz
Motor: Core motor
Remote control Angle:90-120°±2°
500μs-2500μs:180°±5°
Voltage range:4.8V-6.0V
Operating Speed(4.8V):0.10''/60°
Operating Speed(6.0V):0.08''/60°
Stall Torque(4.8V):11.2 kg.cm
Stall Torque(6.0V):14 kg.cm
Dimensions:40X20X28.8mm
Weight: 50g
Connector Wire Length: JR 260 mm
Bearing: 2BB

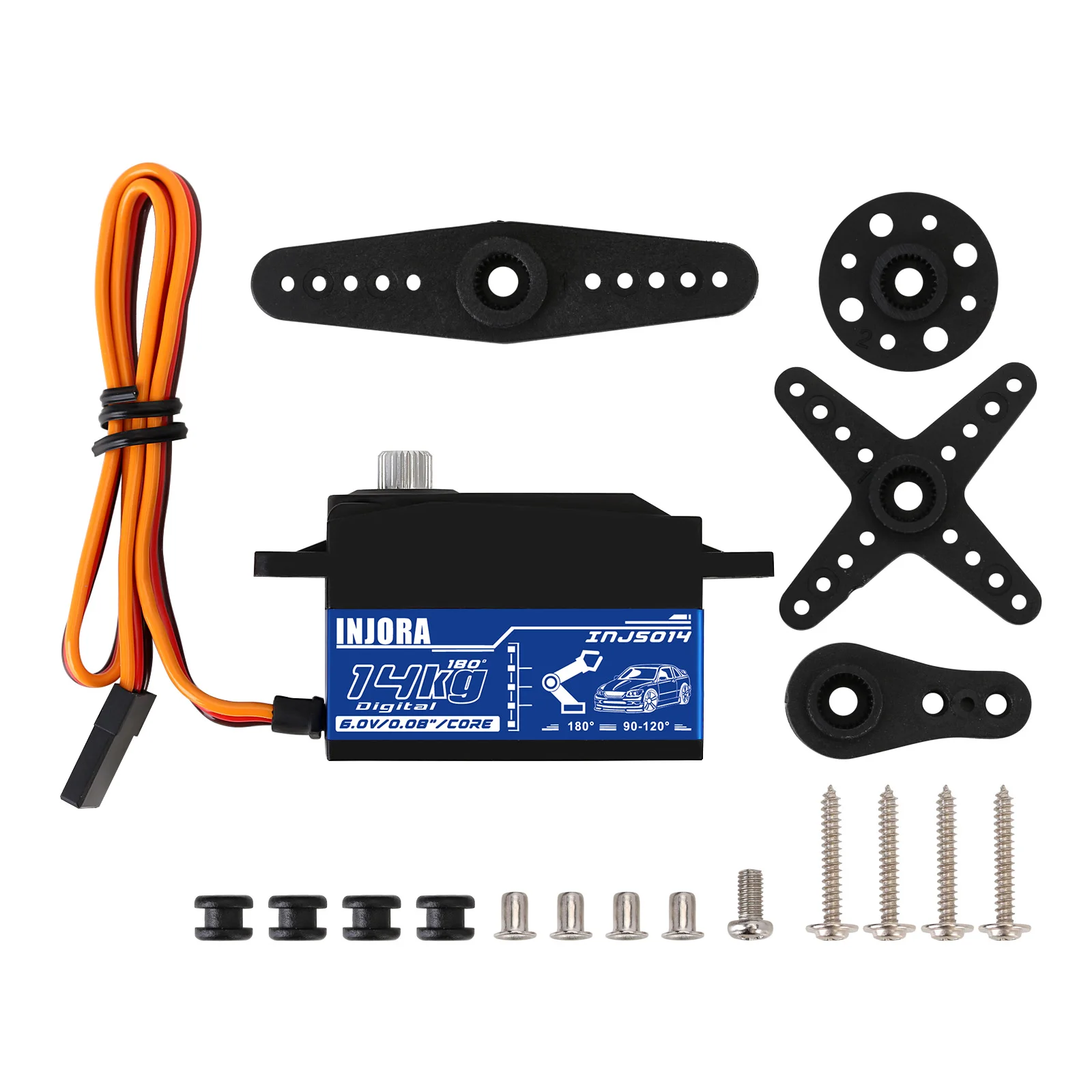

Package Included:
1 * RC Car INJS014 Servo
