Product name
QuicRun Fusion BL SYS for Crawler-S40 Spec
Product number
30120400,30120401

Types of
Ratio: 1/10
Brushed/Brushless: Brushless
Sensor/Sensorless: Sensor
Waterproof characteristics: waterproof

Hardware specifications
Continuous/peak current: 40A/160A
Number of batteries: 2-3S Lipo/6-9 Cell NiMH
BEC output: switch mode: 6V/7.4V @4A
Motor KV value: 2300KV
Motor outer diameter/length: 36mm/64mm
Shaft diameter/exposed shaft length: 3.175mm/16mm
Number of motor poles: 4

Cable and plug
Power cord: red-14AWG 200mm*1 black 14AWG-200mm*1
Power plug: XT60 (unsoldered)
Note: All the wire lengths above are the length of the raw material, not the length of the wire that is actually exposed to the outside of the ESC. The actual exposed length of the ESC will be slightly shorter than the marked value.

Parameter programming method
SET button of ESC itself: not supported
LED programming parameter adjustment: support
LCD programming box tuning: support
WFi Express wireless module: not supported

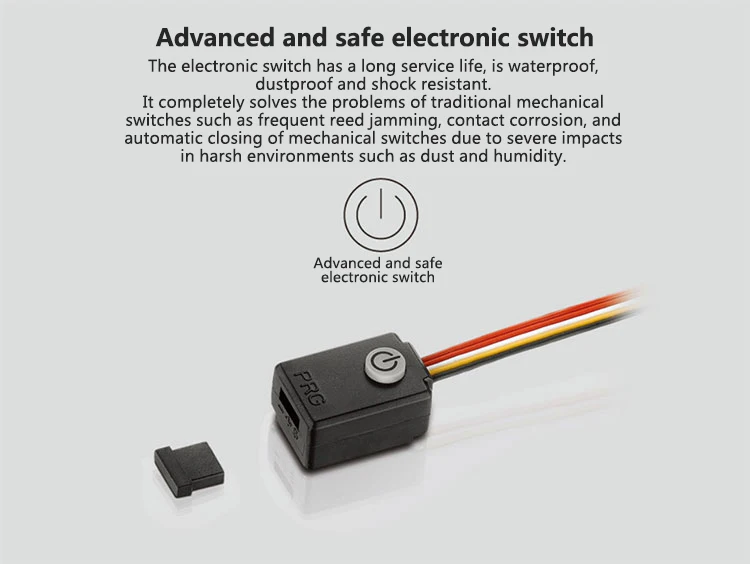

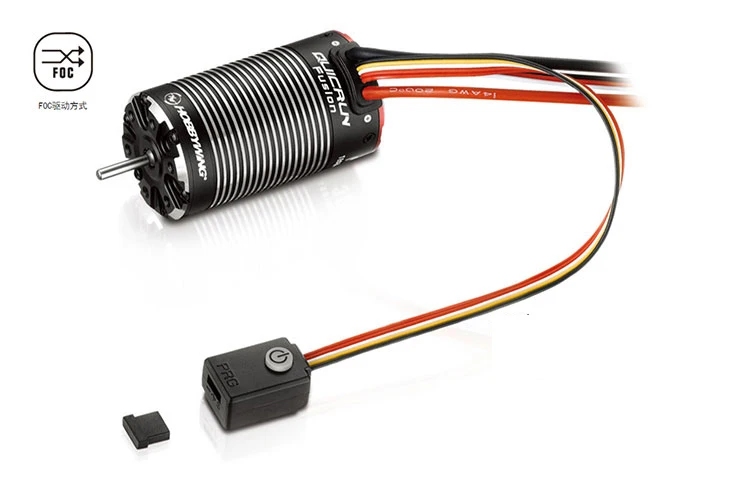

Programming interface: independent programming port (switch position)

Description: 36*64mm
Weight: 201g (including wire plug)
Applicable models: 1/10 Crawler Model Cars

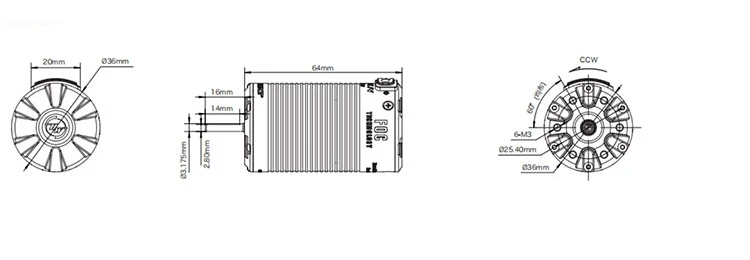

Motor outline drawing

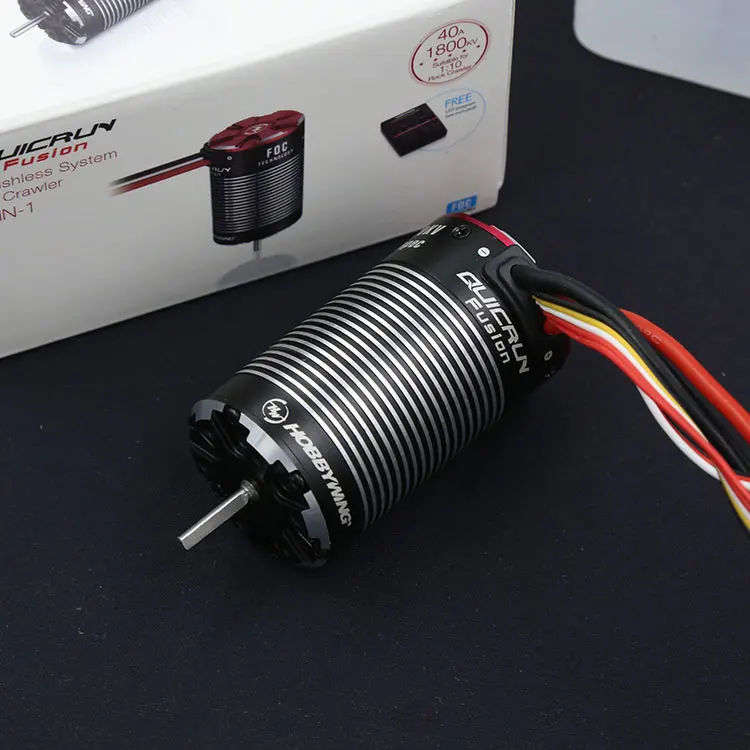

Product model: Fusion two-in-one Crawler dedicated motor

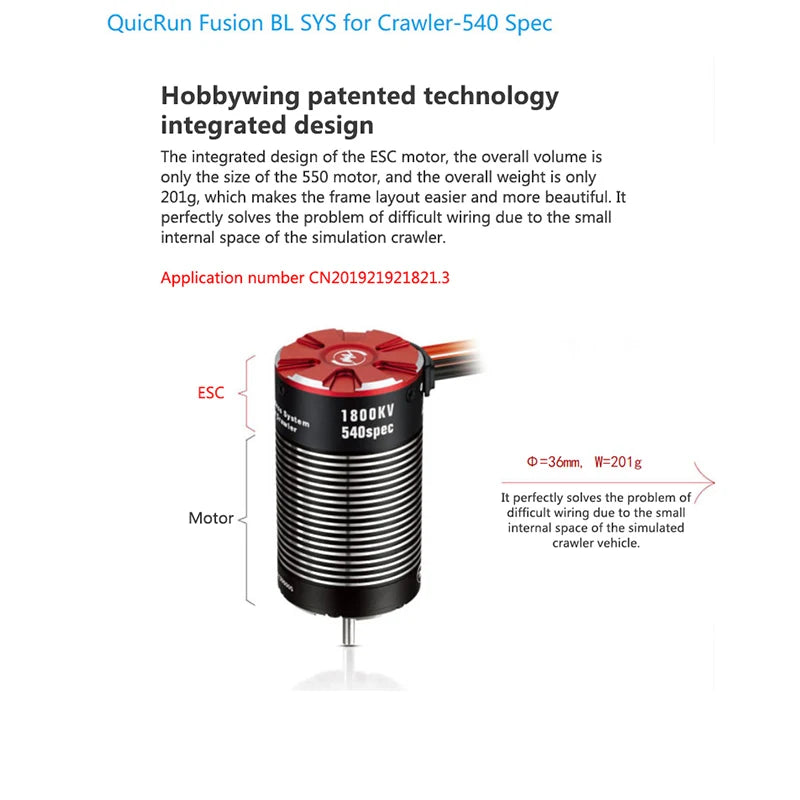

Features: Adopting AXE XeRun technology, integrated ESC and motor (that is, the ESC is built into the motor shell)

Motor parameters: 540-1800KV
