RC Crawler Craze

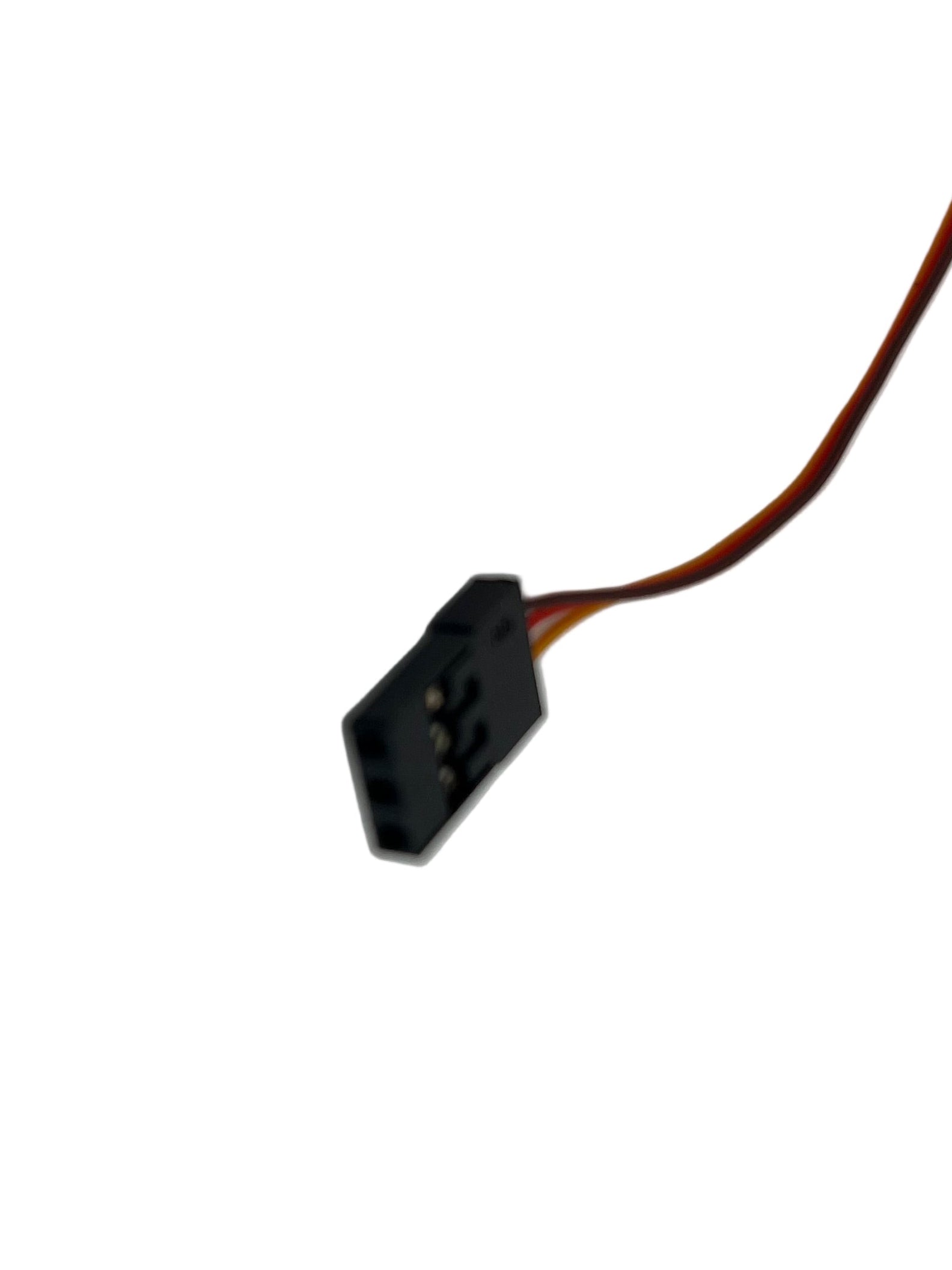

RCCC 3 WIRE JR CONNECTOR SUB-NANO SERVO FOR ASCENT 32
RCCC 3 WIRE JR CONNECTOR SUB-NANO SERVO FOR ASCENT 32
Regular price
$12.99 USD
Regular price
Sale price
$12.99 USD
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
For those who want a mostly STOCK look but want the option for a brushless system with upgraded electronics.

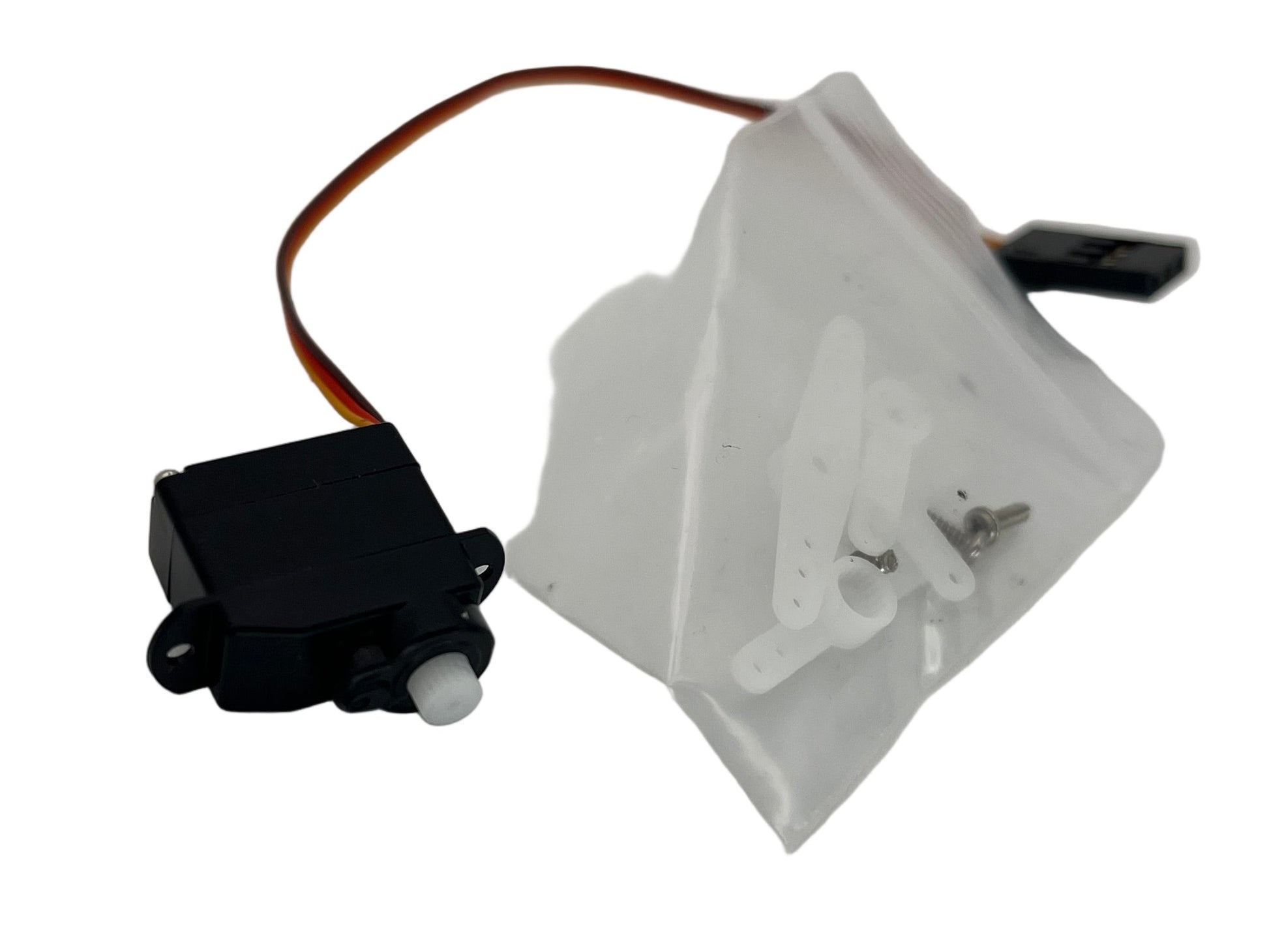

This Sub-Nano servo will directly fit into the stock servo mount of the RedCat Racing Ascent 32.
This is a 2.2g micro servo with 4.2V low voltage capable sub-micro nano digital circuit. It is made in 20T spline, potentiometer angle sensor and coreless motor, feature with 120 degree operating travel angle. Suitable for most small scale hobby asked for 1S powered applications.
|
Features
High Performance Digital Servo
High Precision Plastic Gears High Quality Coreless Motor Maximum Travel Angle Can Up To 180 Degree Ideal for 1:35 Scaler, 1S Powered Applications, Indoor 3D Flight, Small Park Flyers, RC Plane Helicopter Boat Specification C02CLS Operating Voltage: 3.6-4.2 V Operating speed: 0.070sec/60° @ 3.7V Operating speed: 0.060sec/60° @ 4.2V Stall Torque: 95 g-cm (1.3 oz-in) @ 3.7V Stall Torque: 110 g-cm (1.5 oz-in) @ 4.2V Motor type: Coreless Gear type: Plastic Size: 16.0*8.2*14.5mm (0.63 x 0.32 x 0.57 in) Weight: 2.2g Connector Wire: JST/JR 100 mm / 32AWG |
