1 YEAR WARRANTY ON ANY BROKEN COMPONENT!

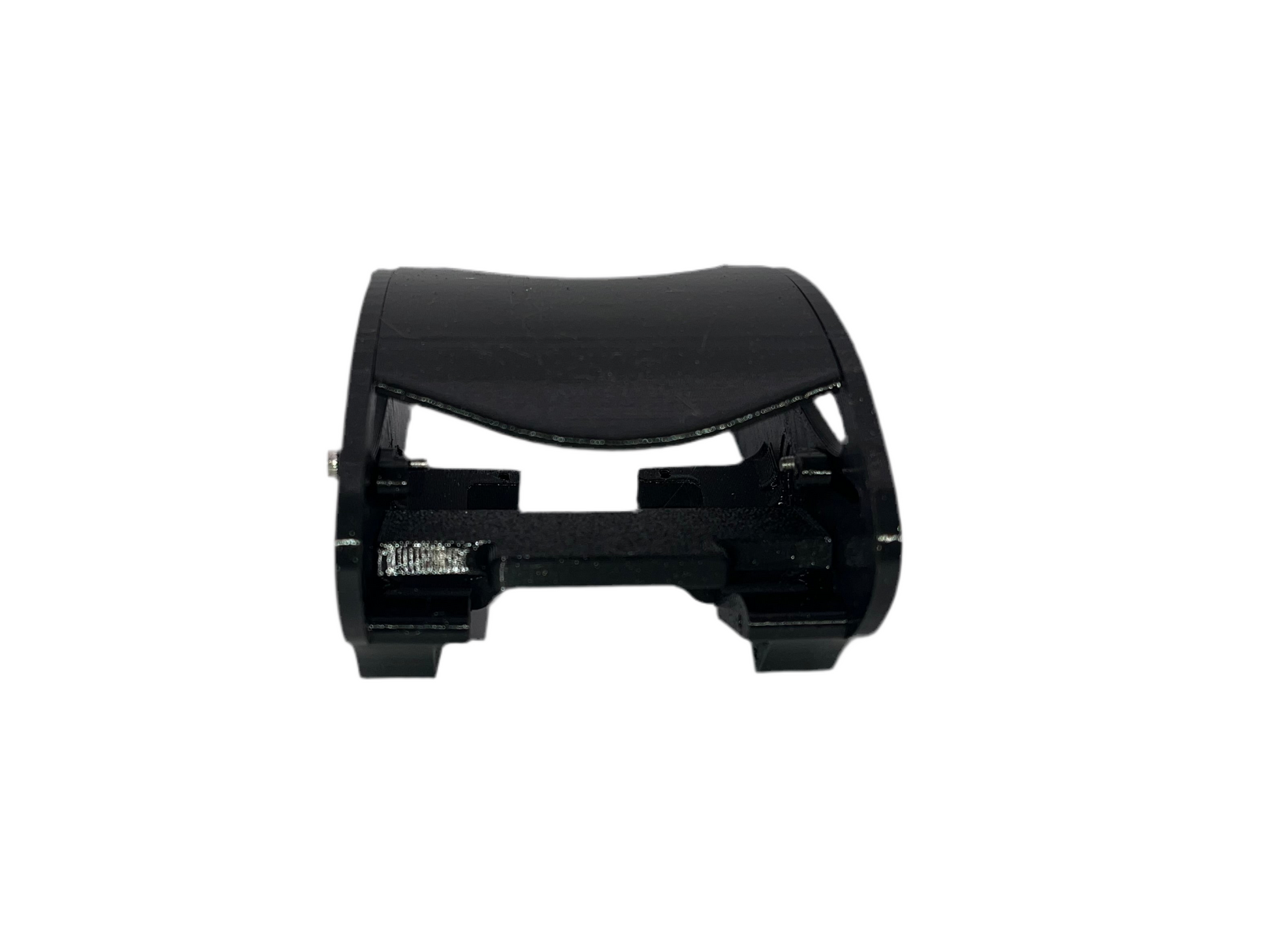

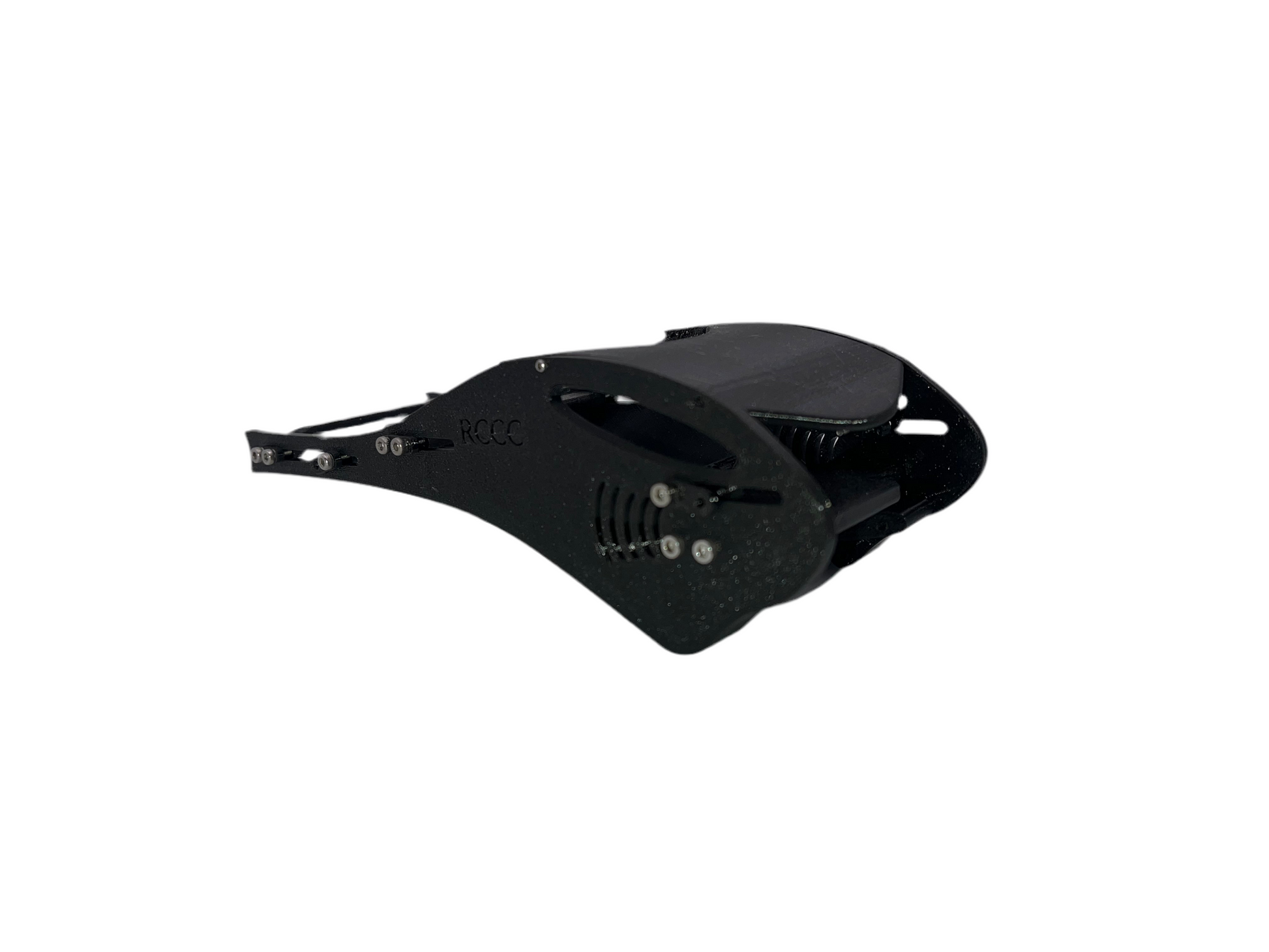

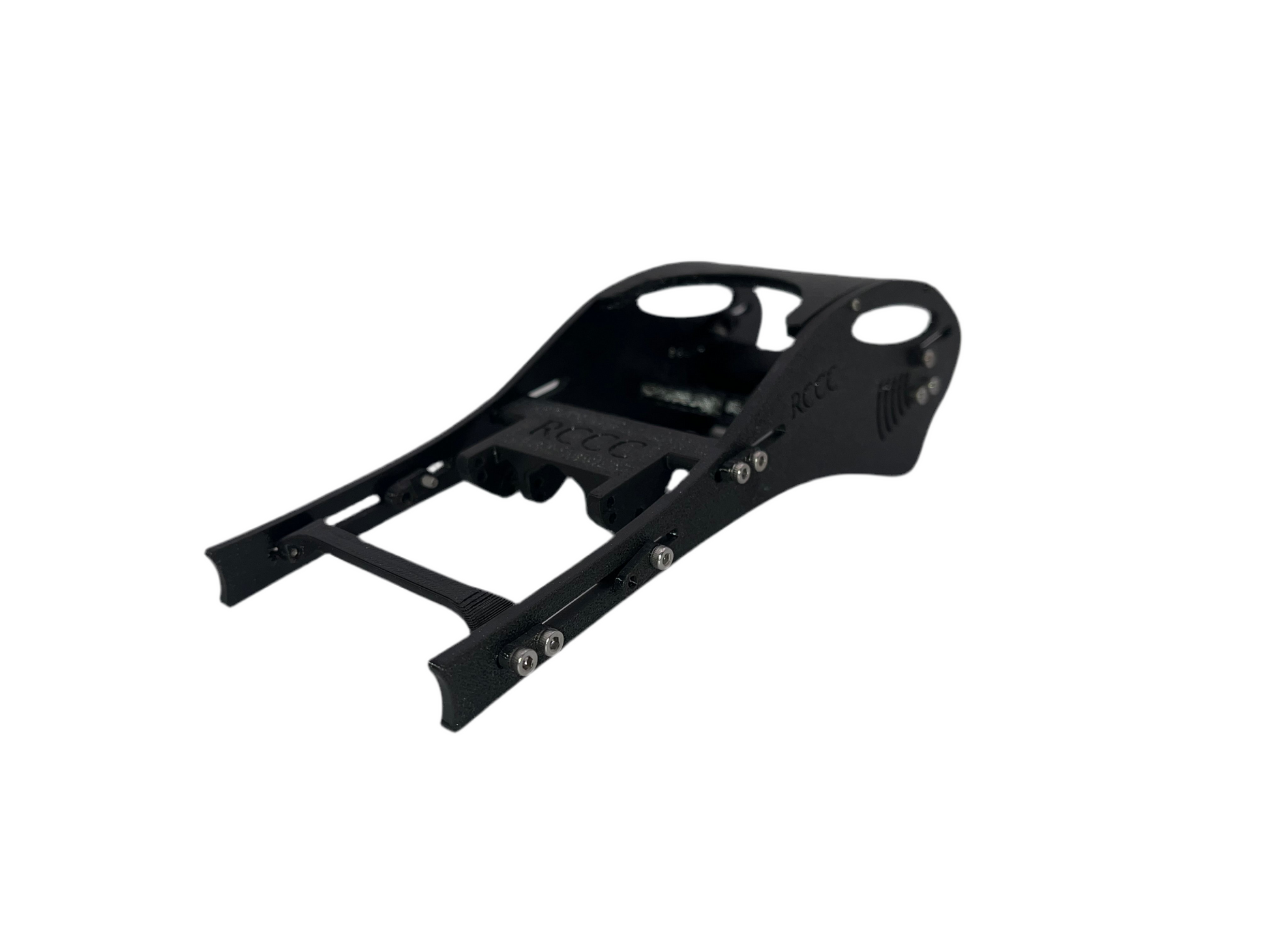

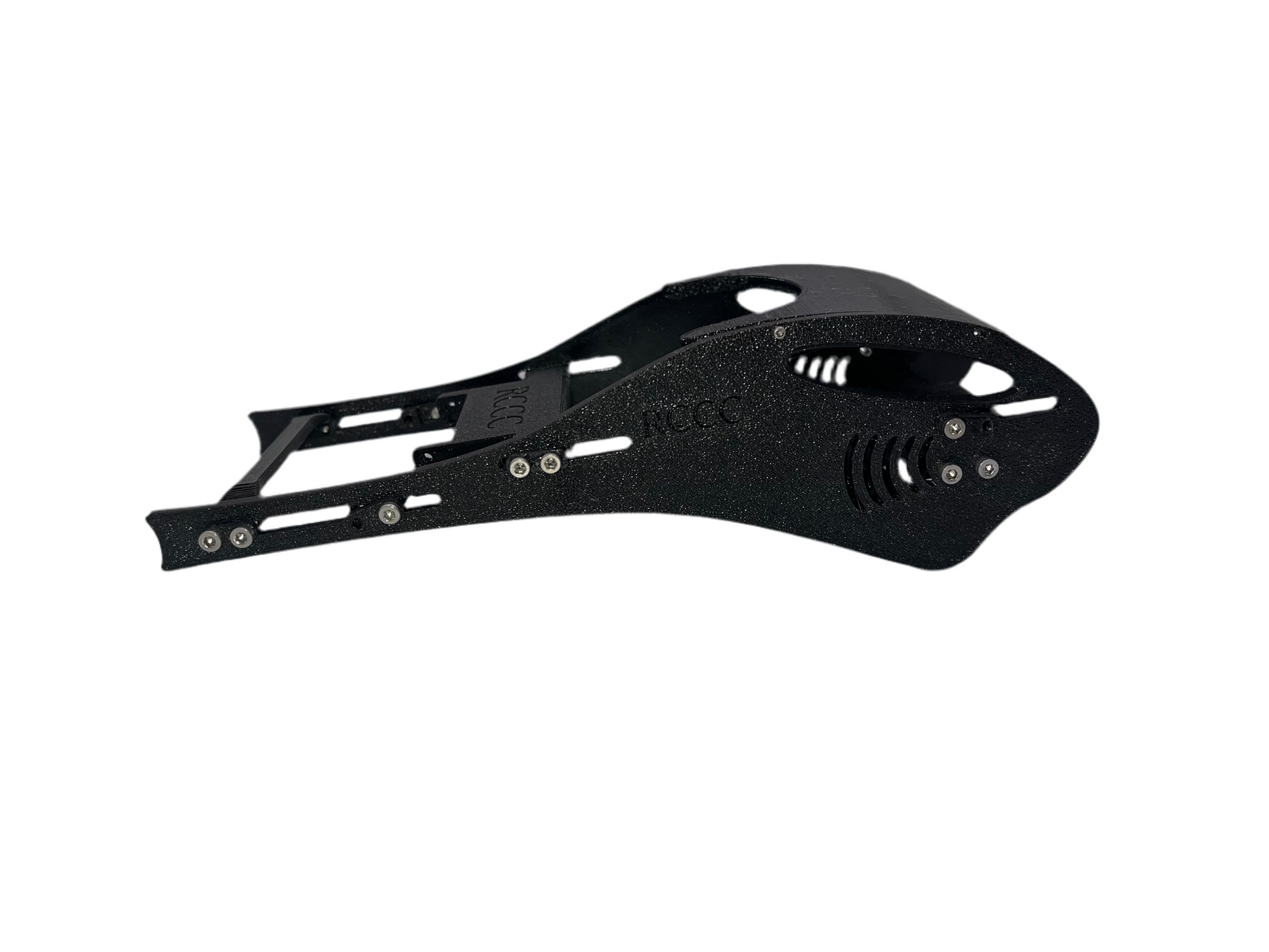

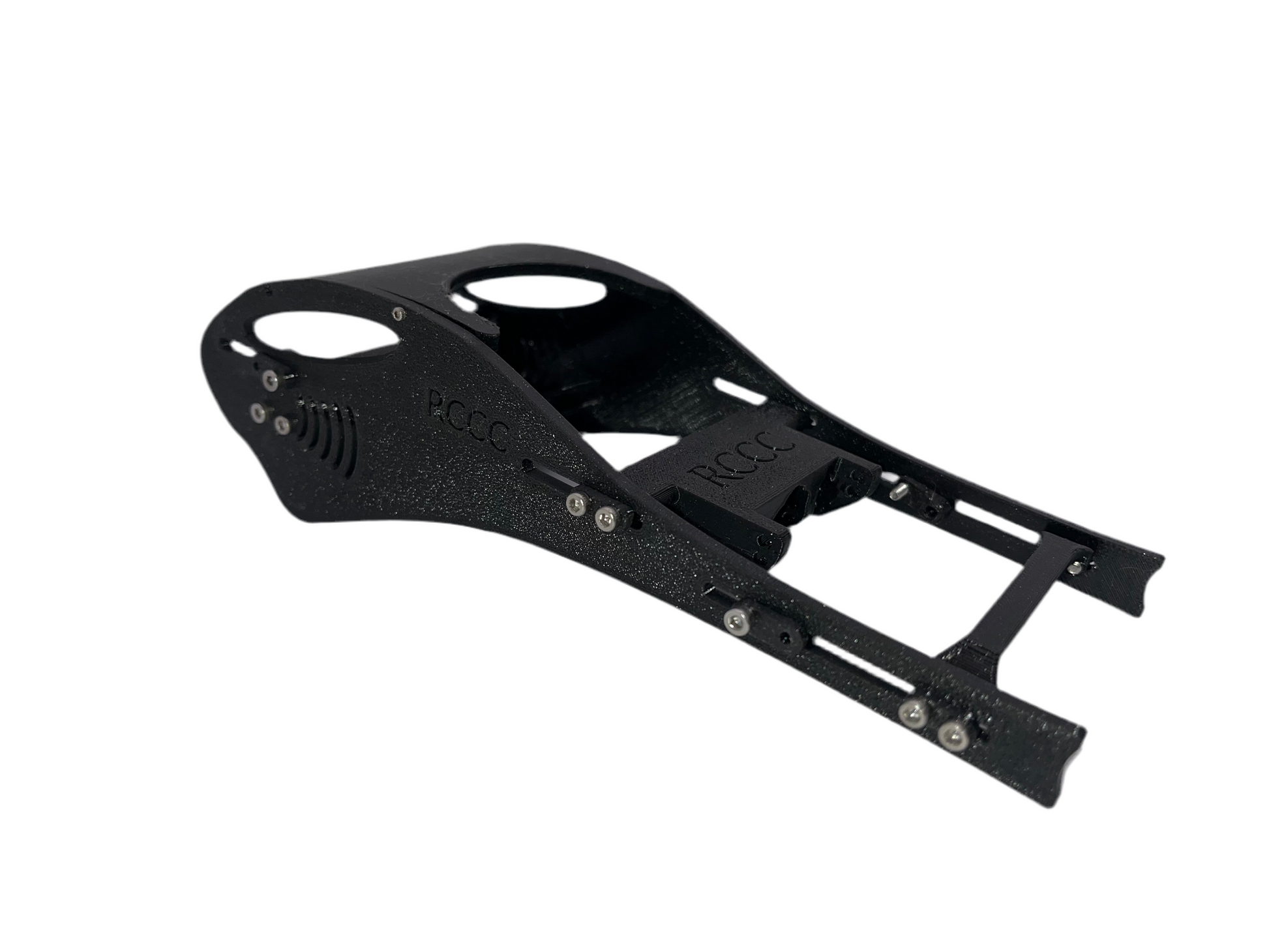

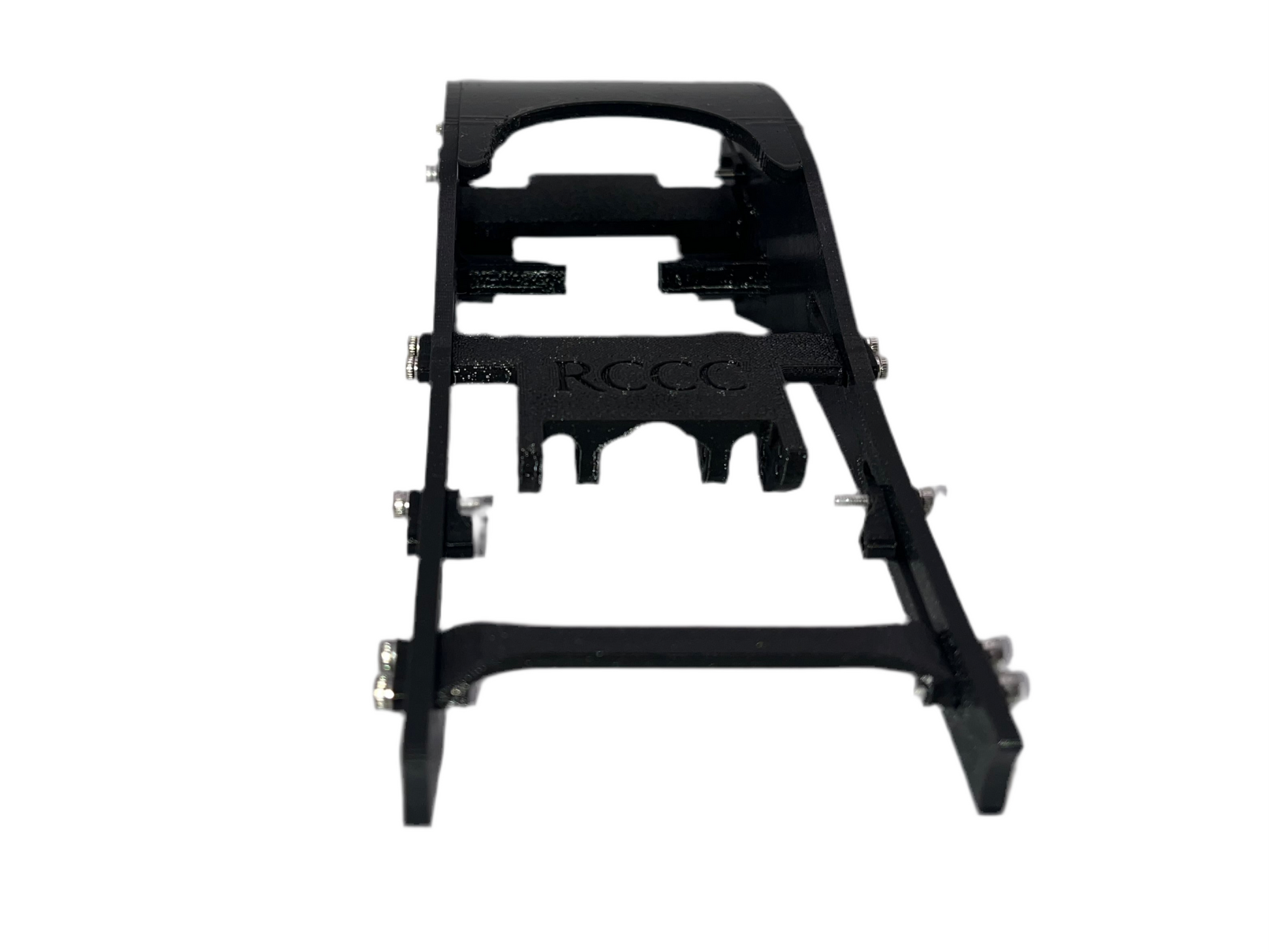

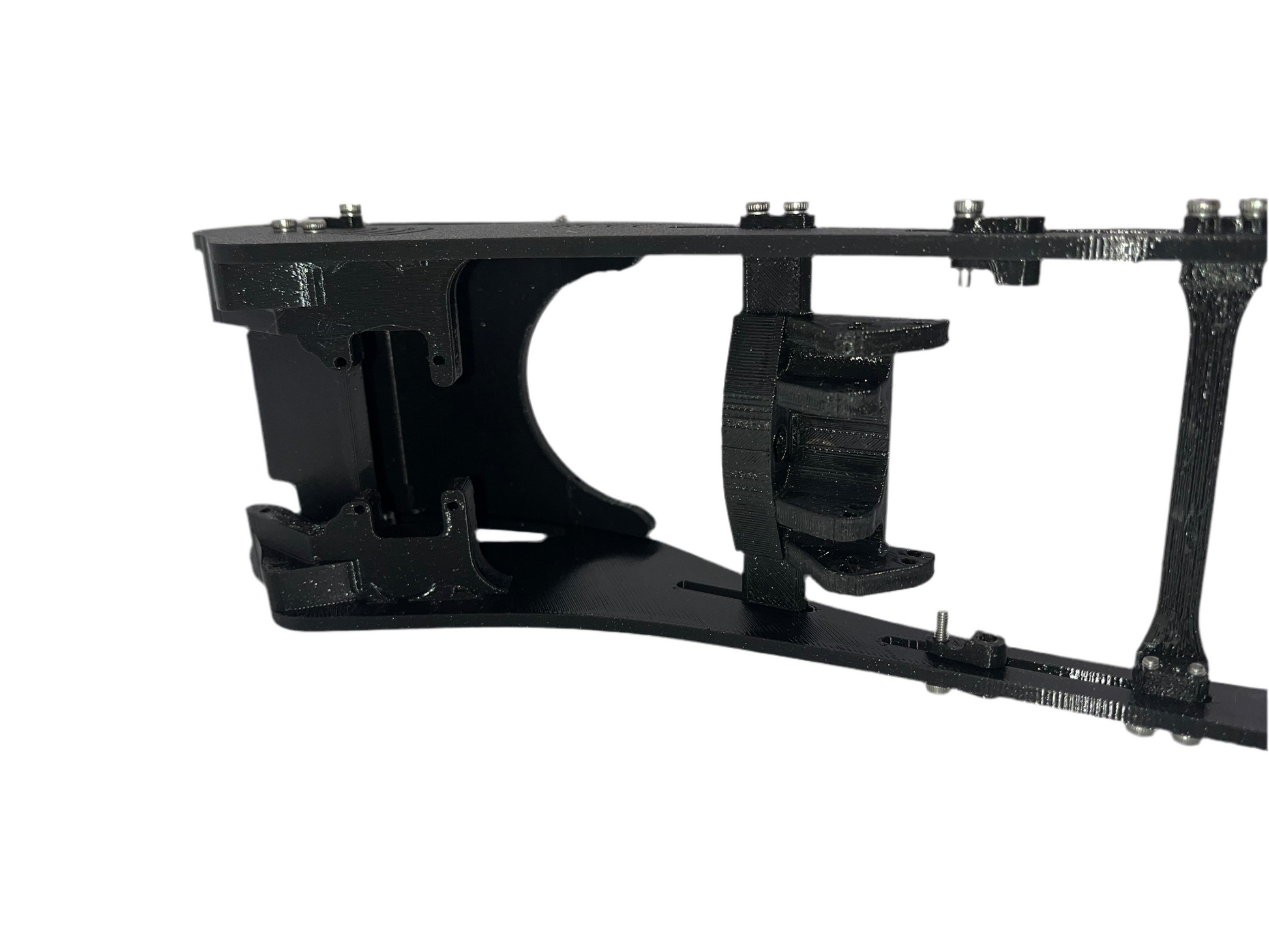

The RCCC Angler 18 for Trx4m chassis kit is a TRX4m base carrier bearing style platform.
•25° skid angle!
•68mm wide, 3.5mm thick chassis half’s and 61mm inside width.
•Designed for rear facing motor configuration.
• Rear roof opening allows for space to fit large 370 size motor configuration.
•ADJUSTABLE Front and Rear Shock Mounts! This allows for fine tuning ride height and shock position by sliding the mounts forward and back. The shocks mount on the inside of the chassis half’s providing a clean appearance.
• ADJUSTABLE Carrier Bearing/Rear Link Mount! This feature allows for fine tuning your rig’s wheelbase.

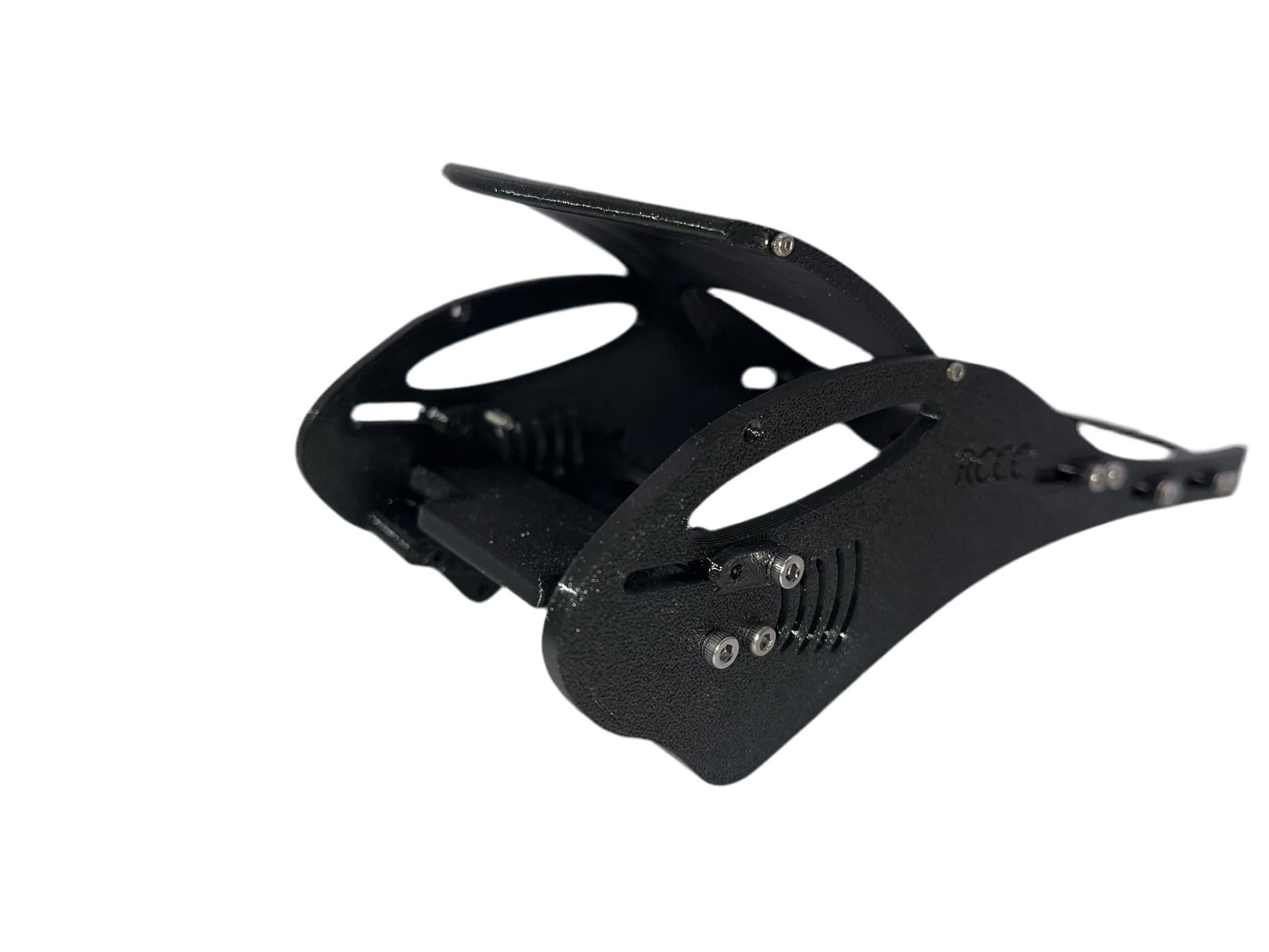

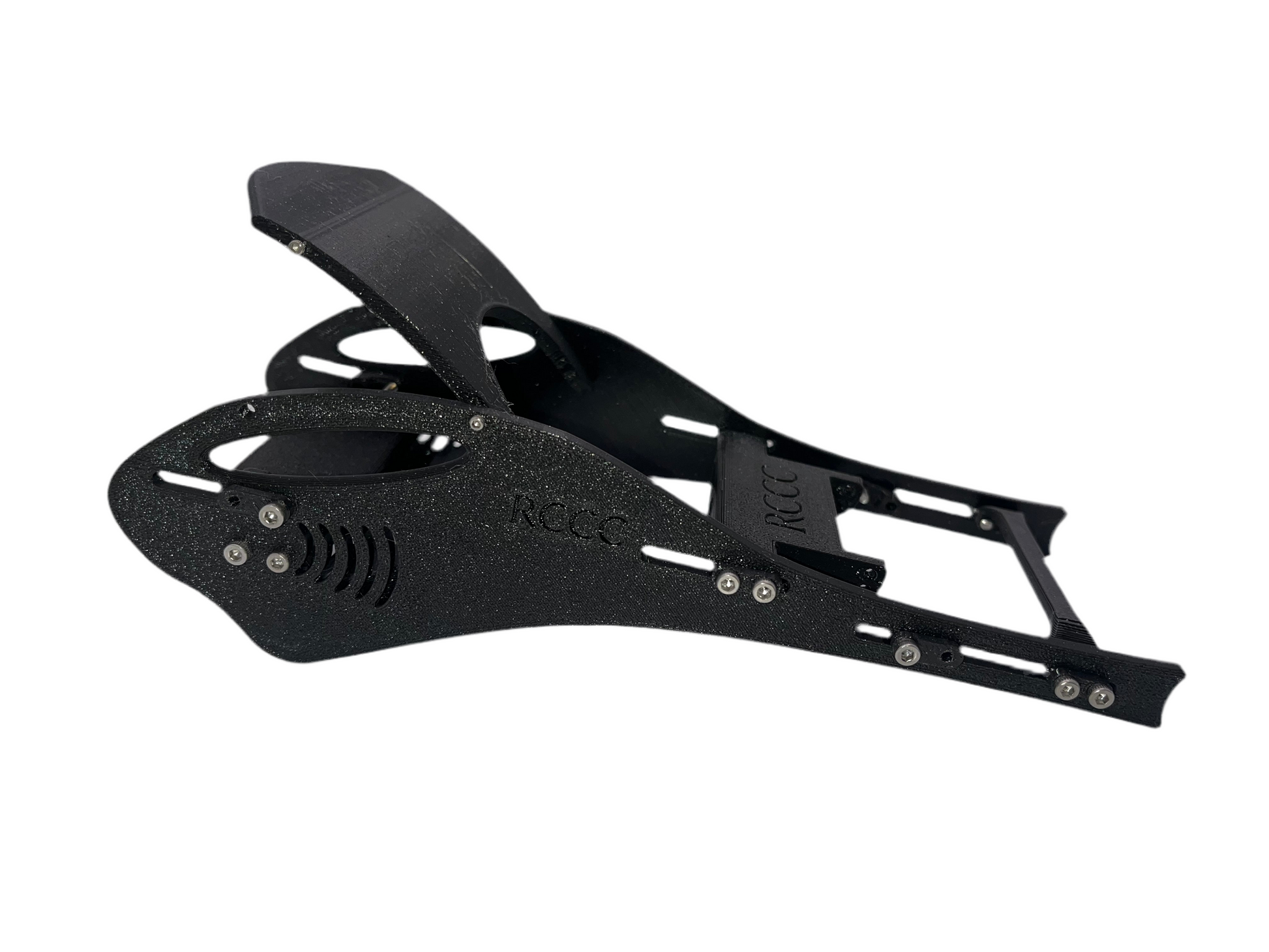

•Roof hinge and secure design! Just 2 bolts toward the rear acting as hinges and the forward most bolts thread directly into the roof while the bolt heads slide into oversized holes in the chassis. Roof will NOT fit the Injora 370 transmission.
•Electronics! 3 mounting locations: The front plate, and ether side of the motor/transmission assembly. (Depending on your choice of electronics)
•Compatible with Bronco/Defender and high trail links and drive shaft sizes. (NO SPECIAL LINKS REQUIRED)
•Suggested wheelbase links and drive shafts: Bronco/Defender
•Carrier bearing shaft, bearings and center driveshaft NOT included (for now)
•Package includes:
- 2 Chassis Half’s
- 1 Roof
- 1 Front electronics plate
- 1 Rear chassis brace with bolt flanges
- 4 shock mounts with bolt flanges
- 1 Carrier Bearing/Link Mount with 2 bolt flanges but WITHOUT bearings and shaft
- 16 M2.5x8mm bolts Black
This chassis kit was designed to resemble and named after the Angler Fish.
NOTE: Please allow 1-3 days of processing time as some chassis colors may need to be printed.
NOTE: “CHOKING HAZARD” This chassis assembly comes with small parts and is NOT for children 5 years old and under.
