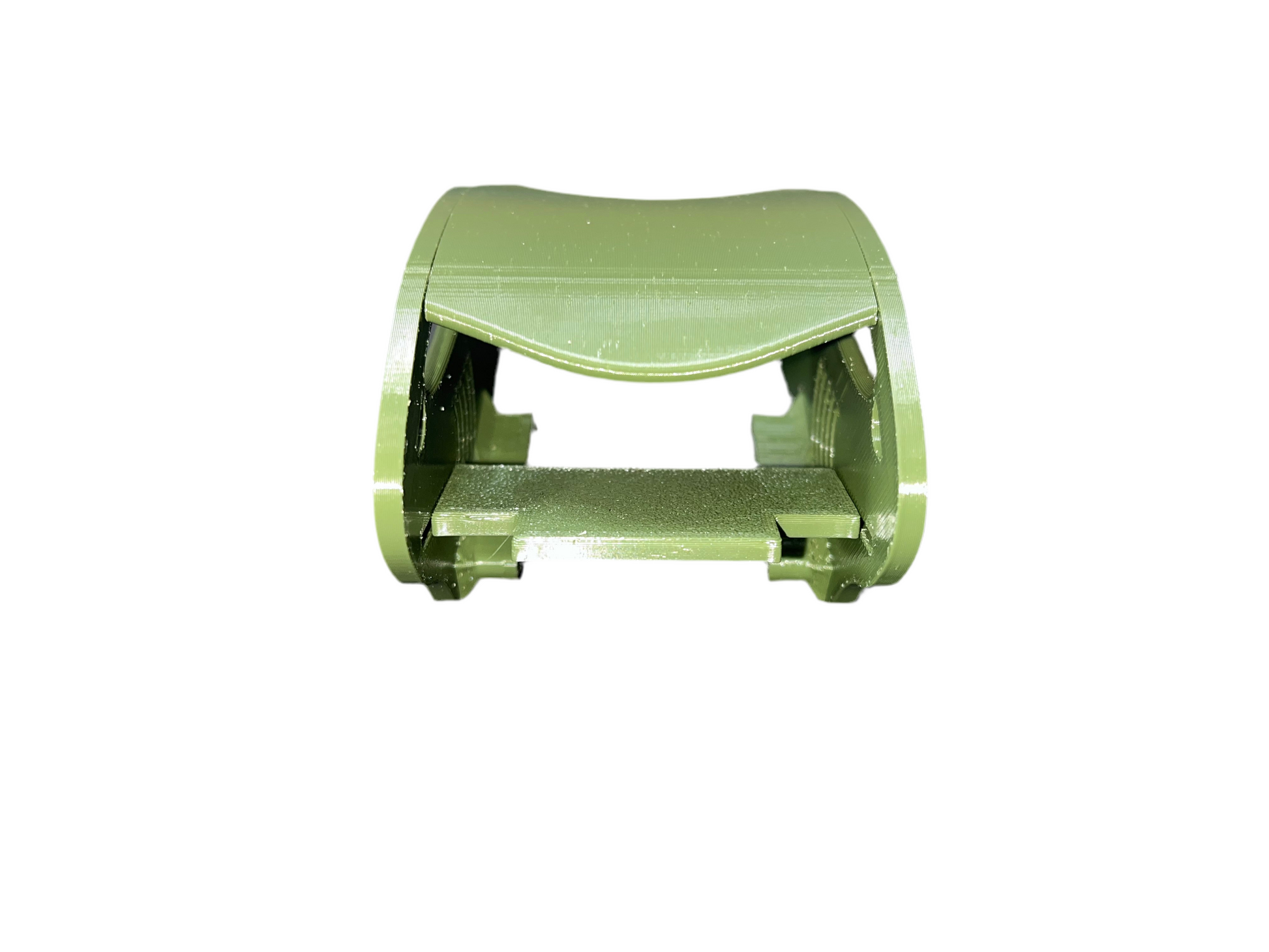

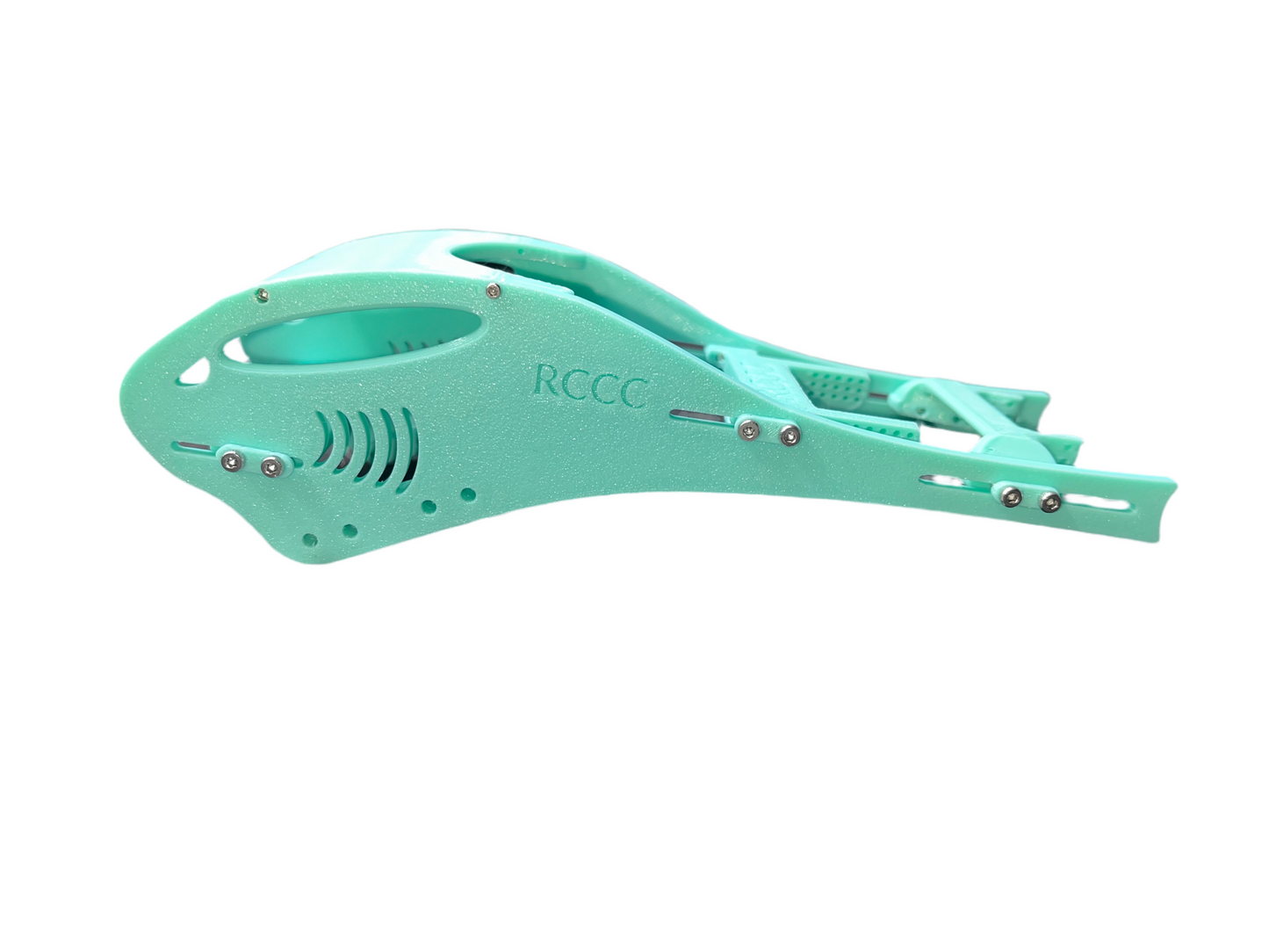

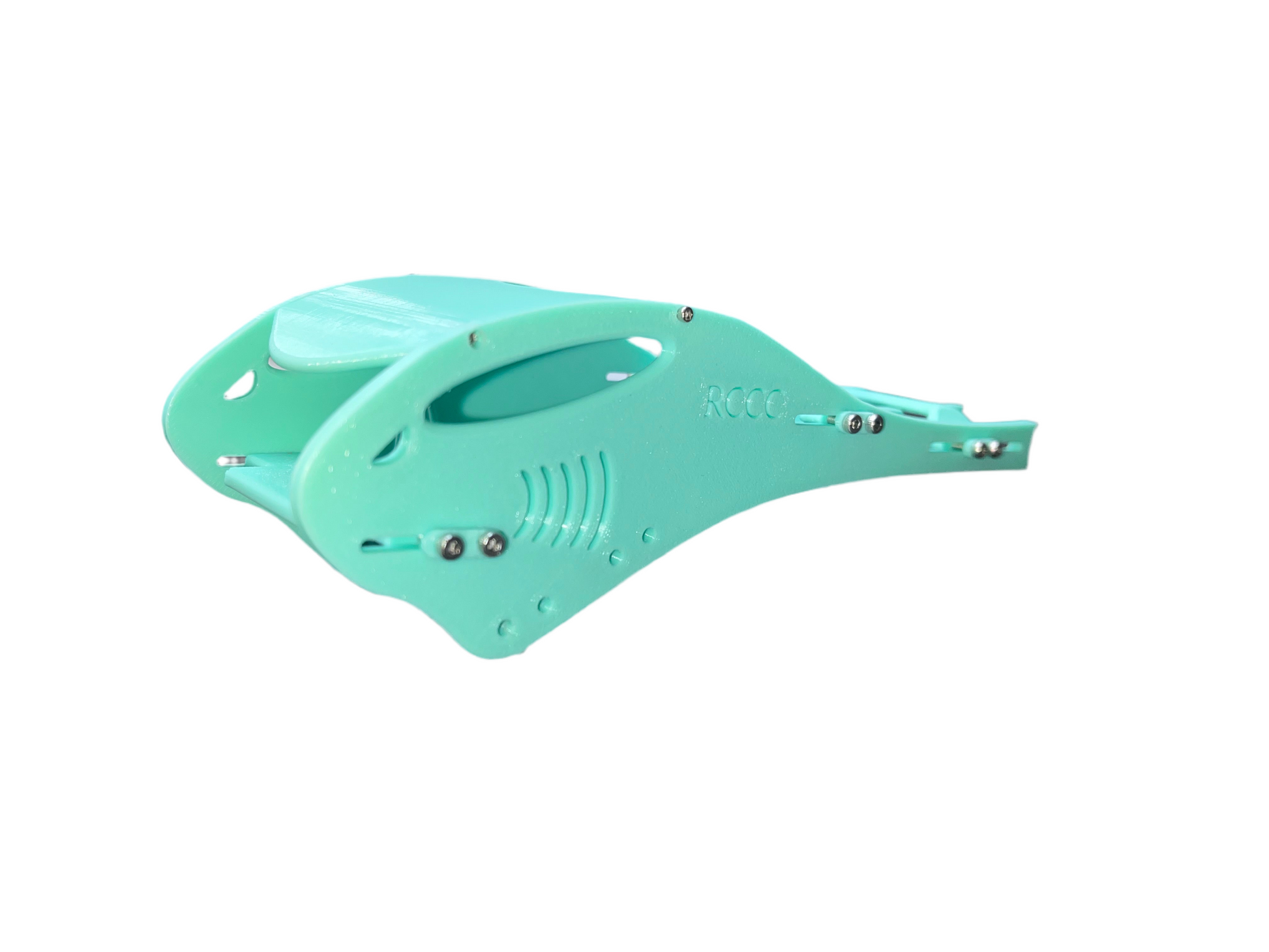

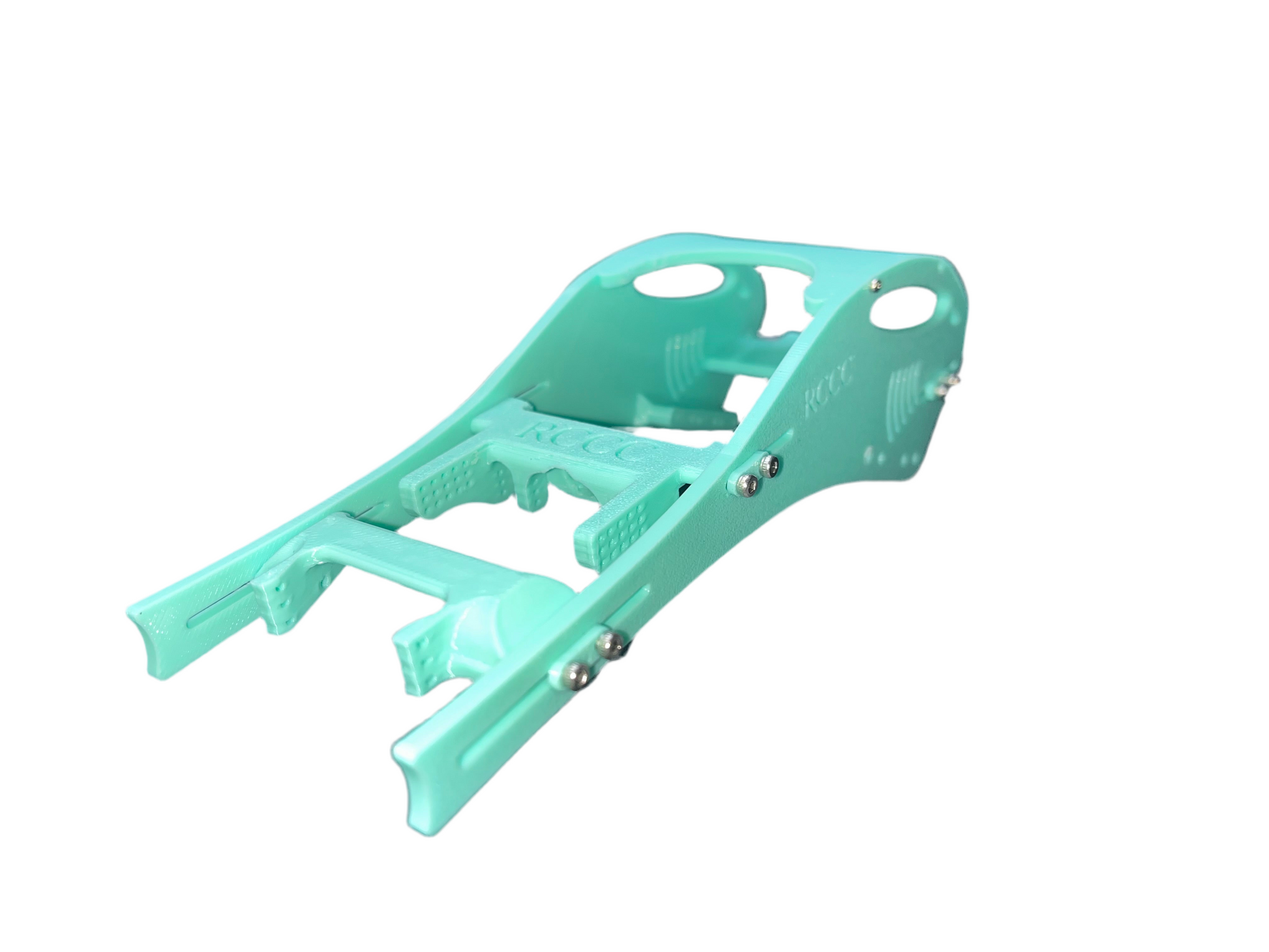

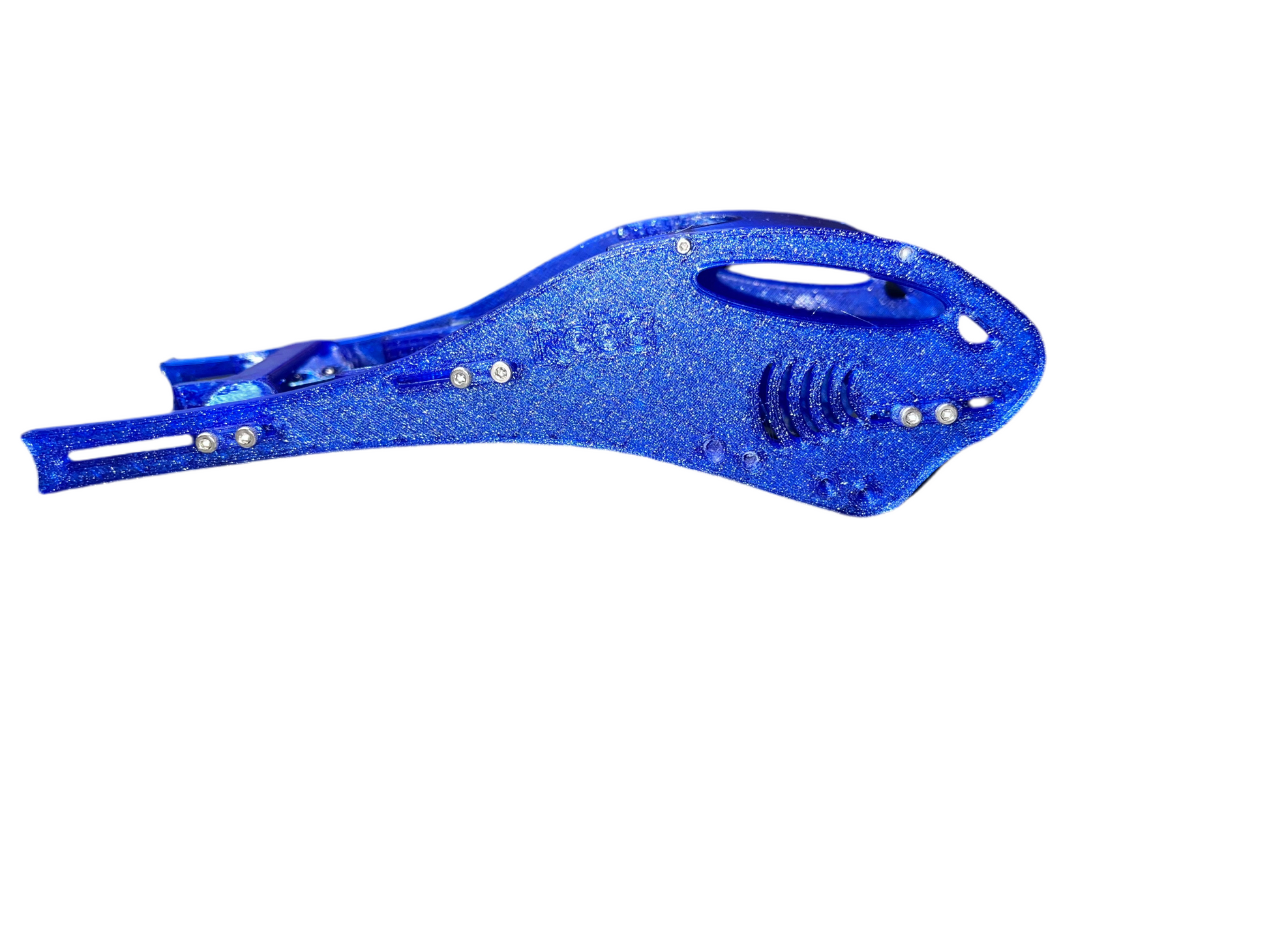

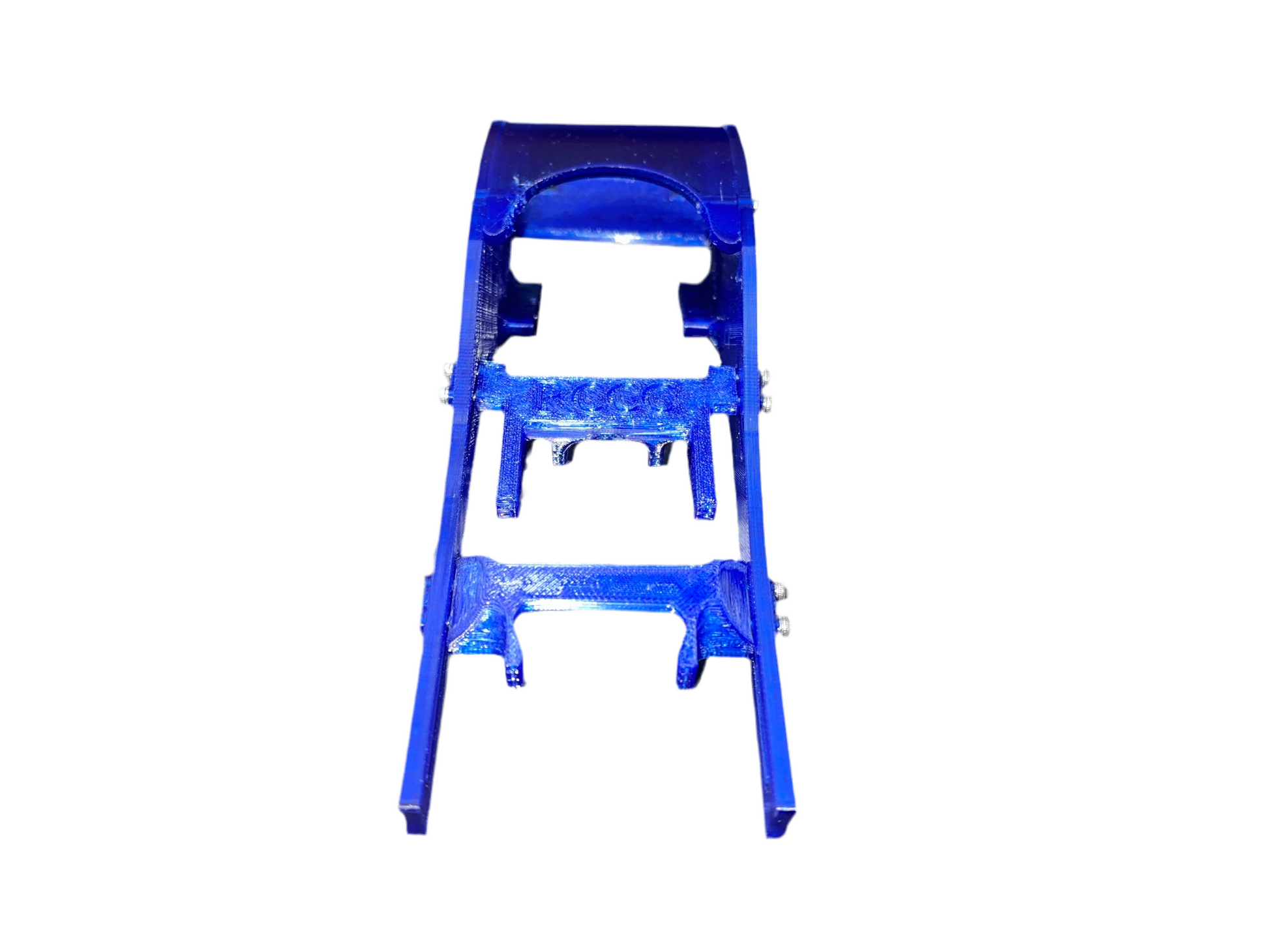

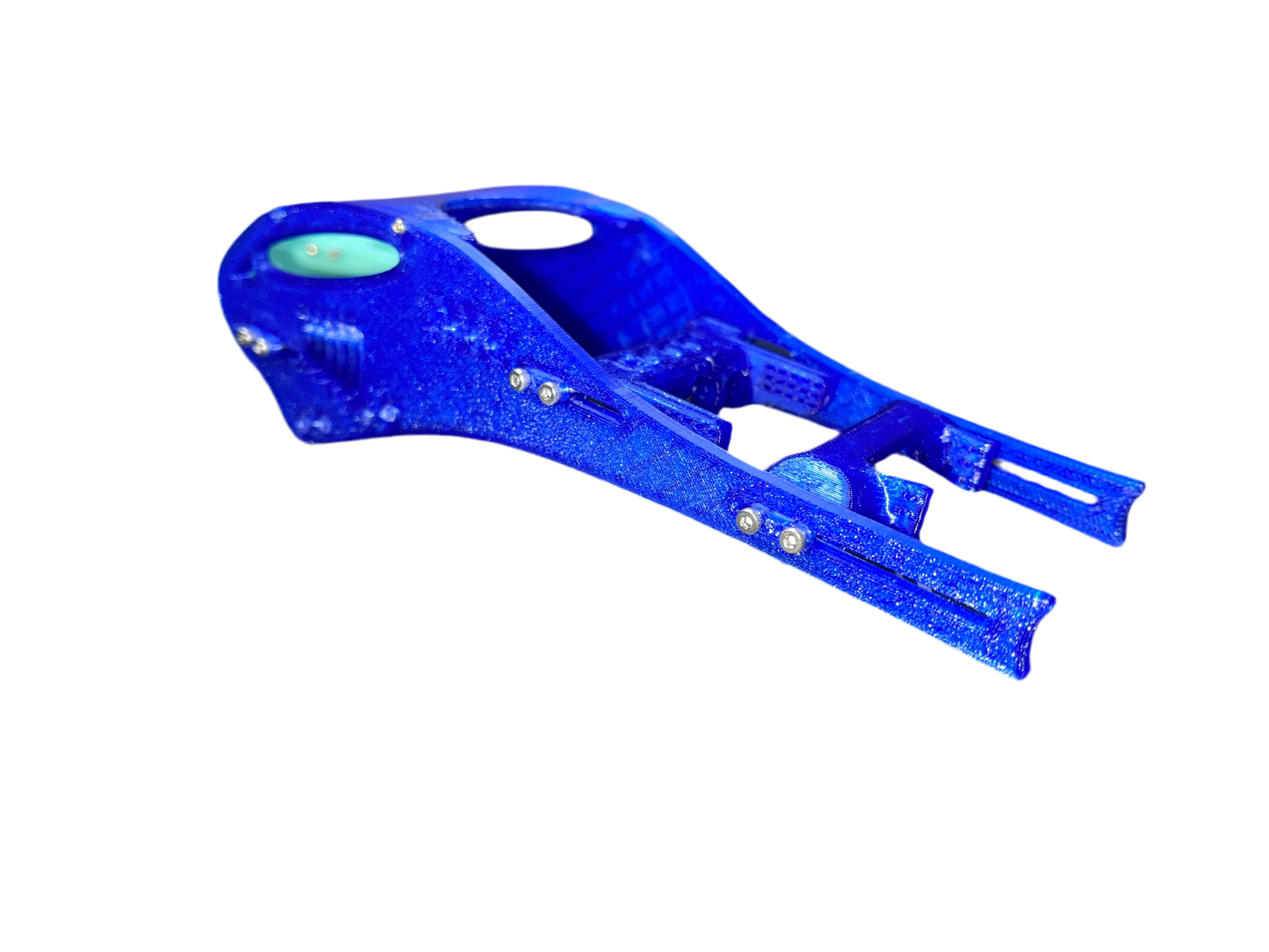

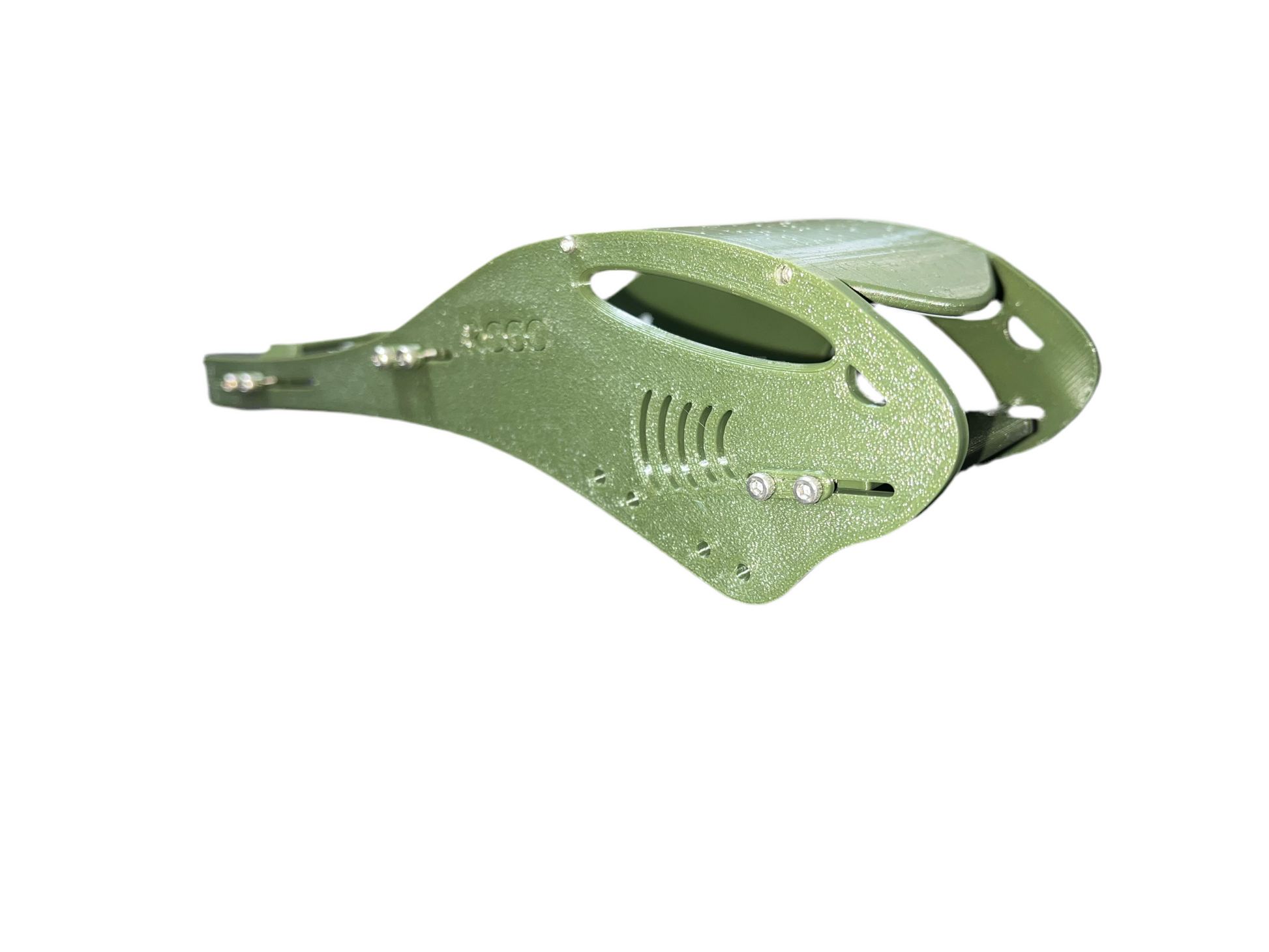

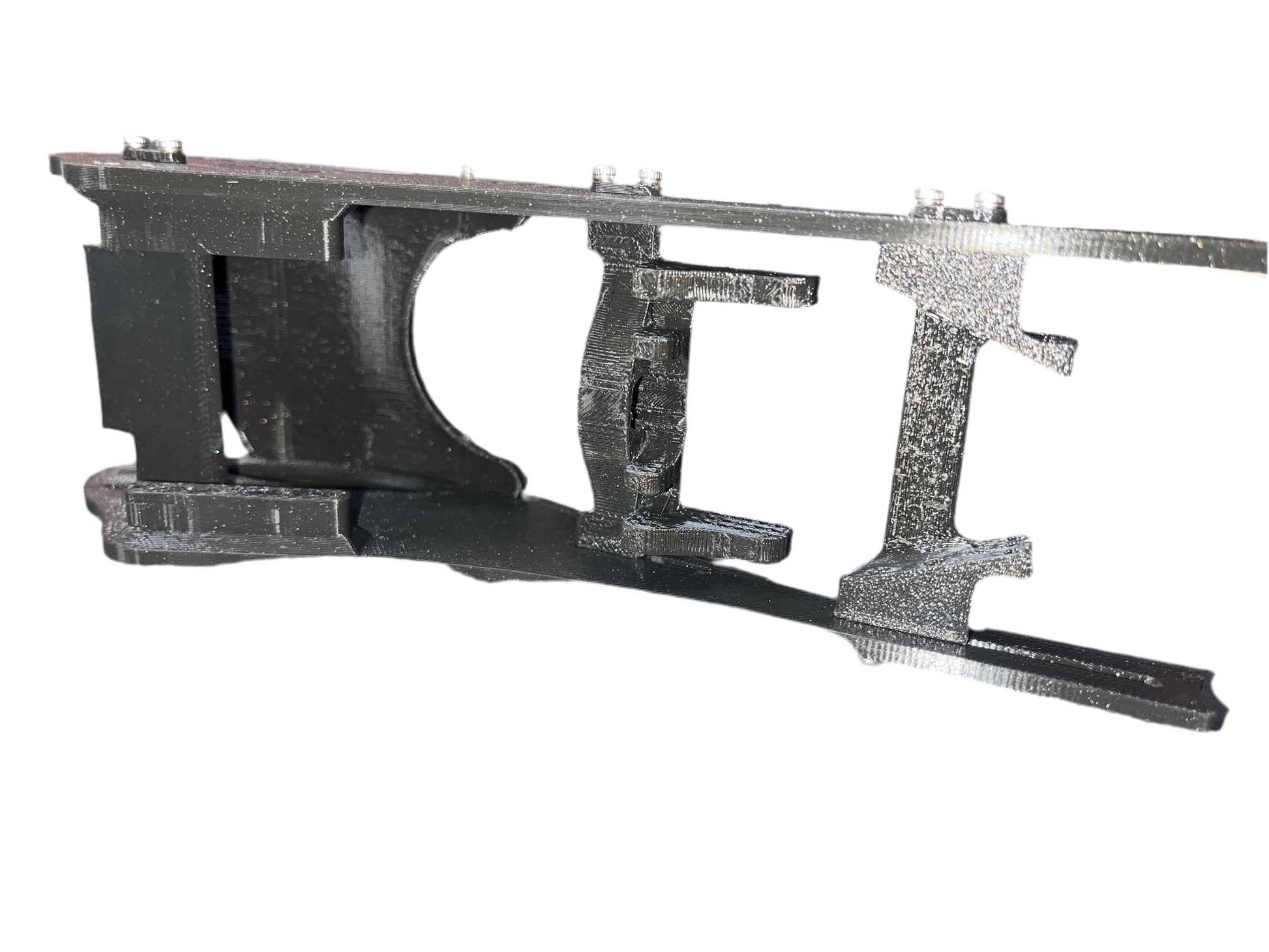

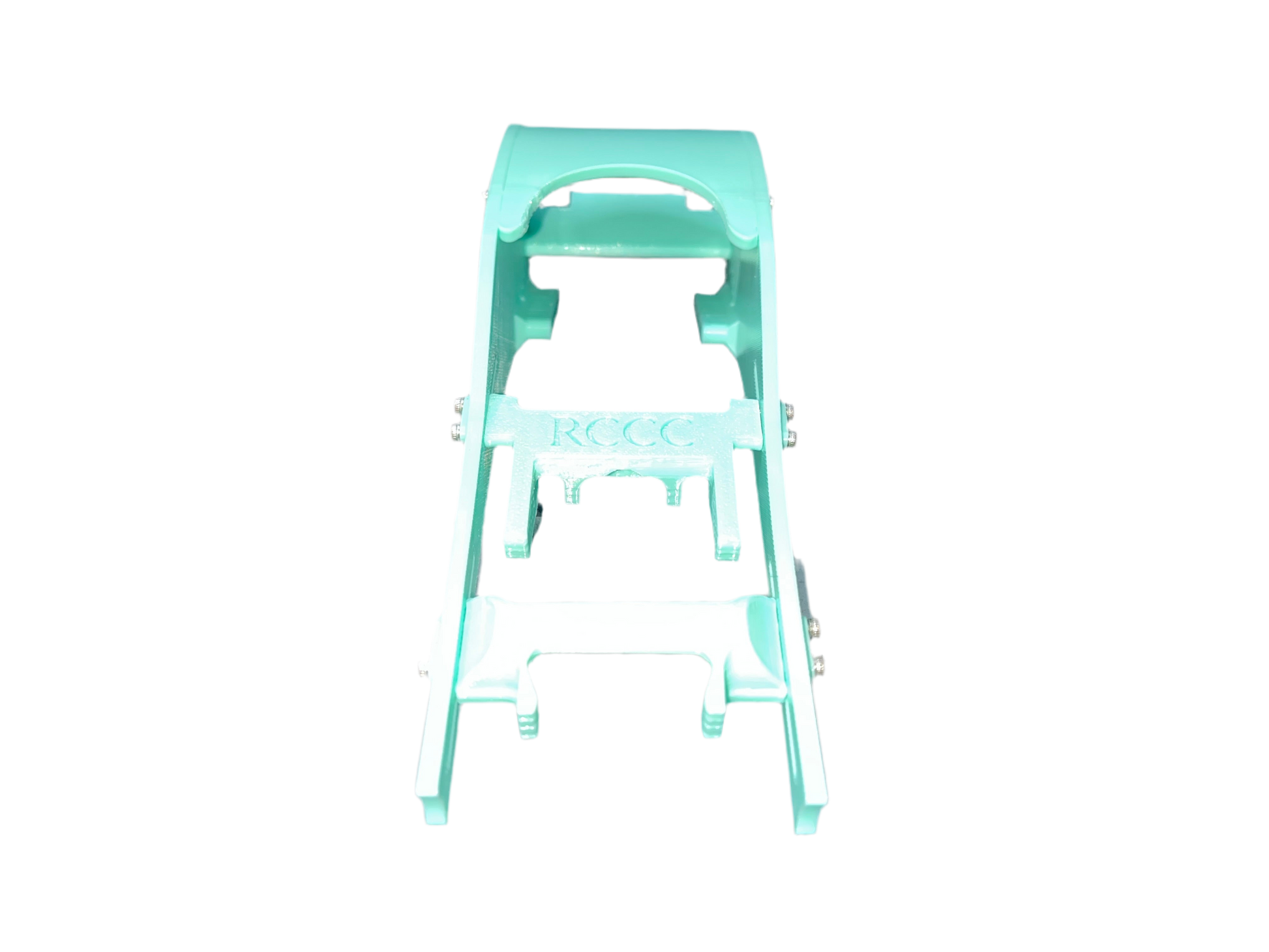

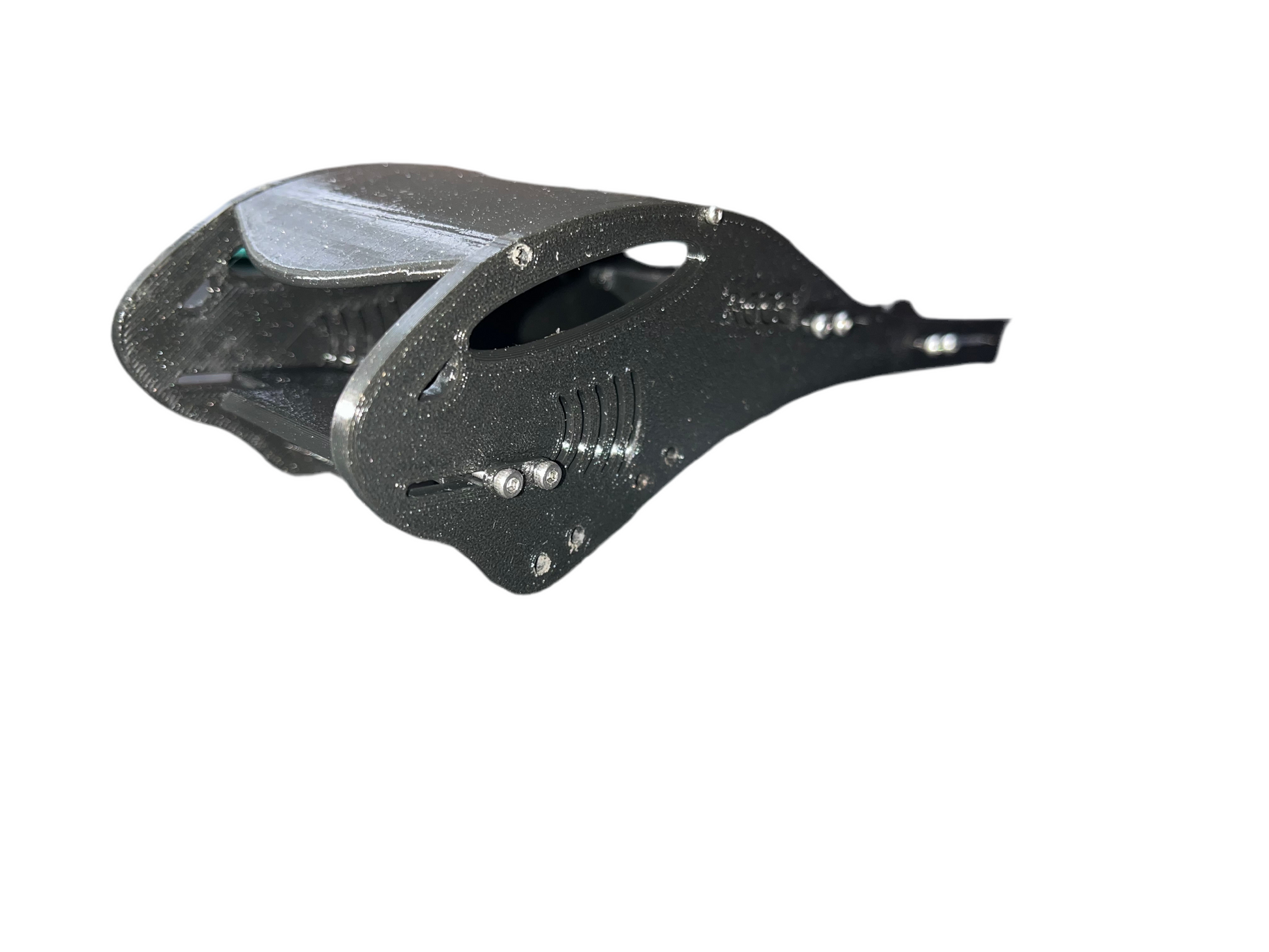

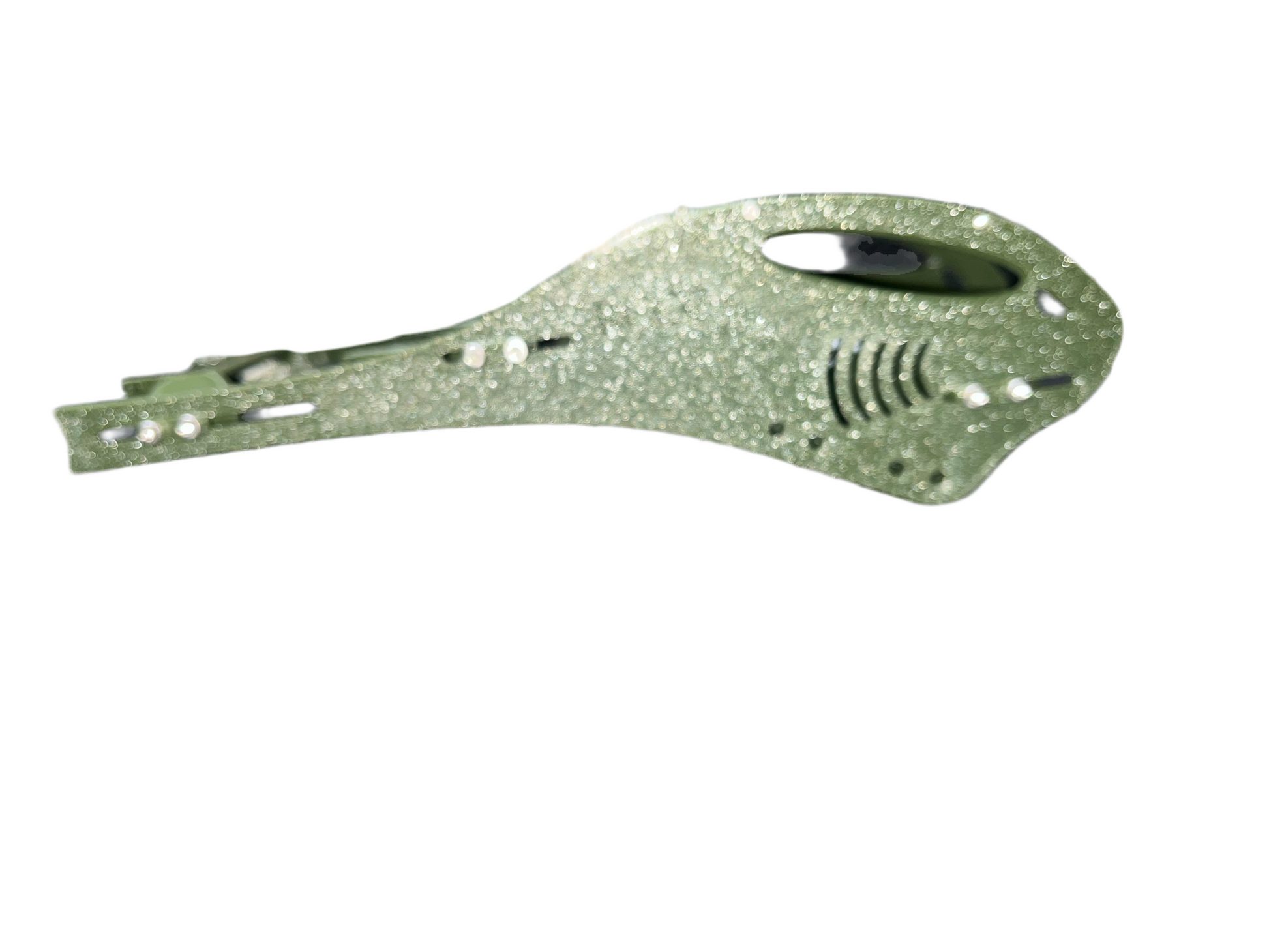

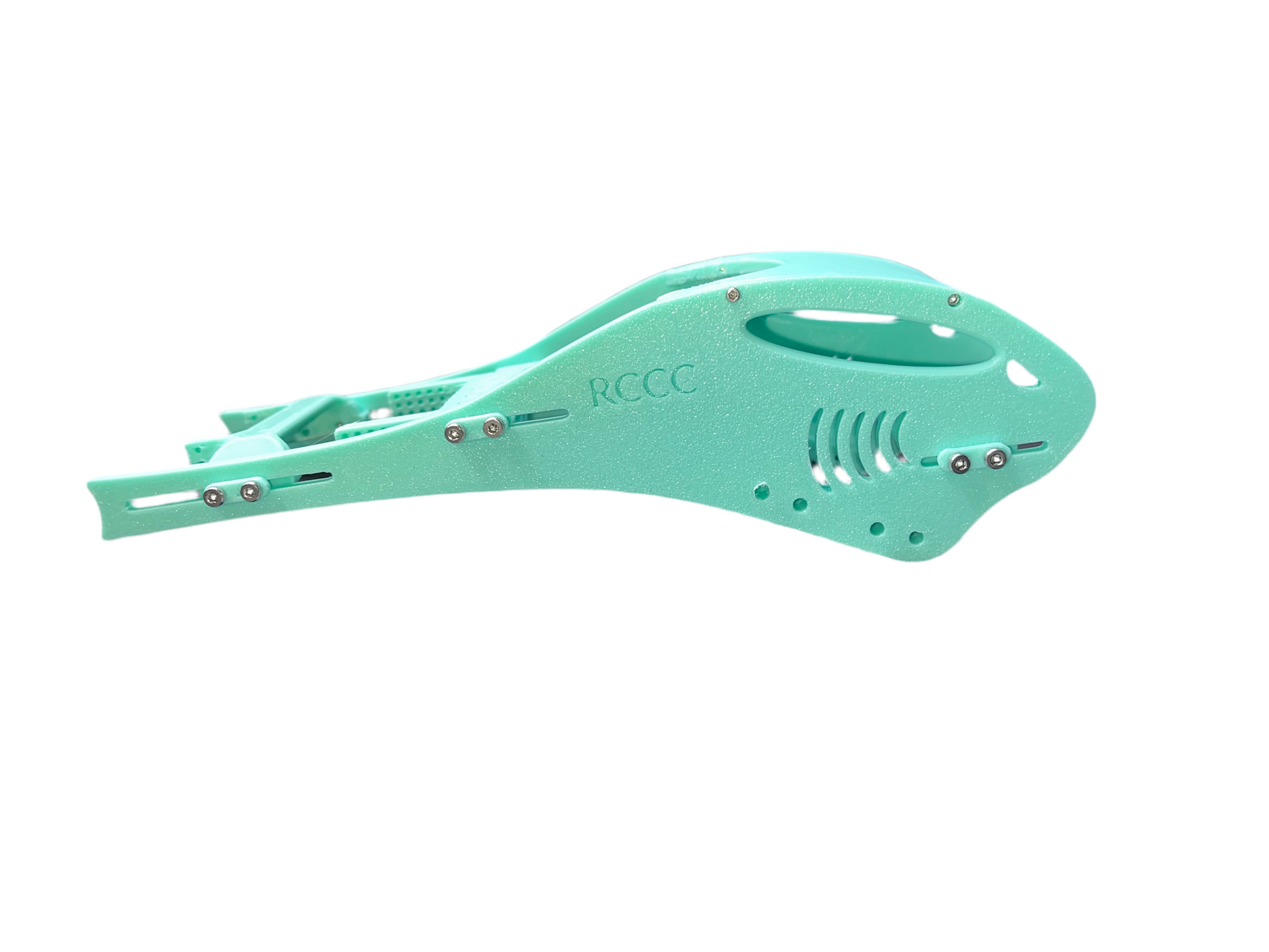

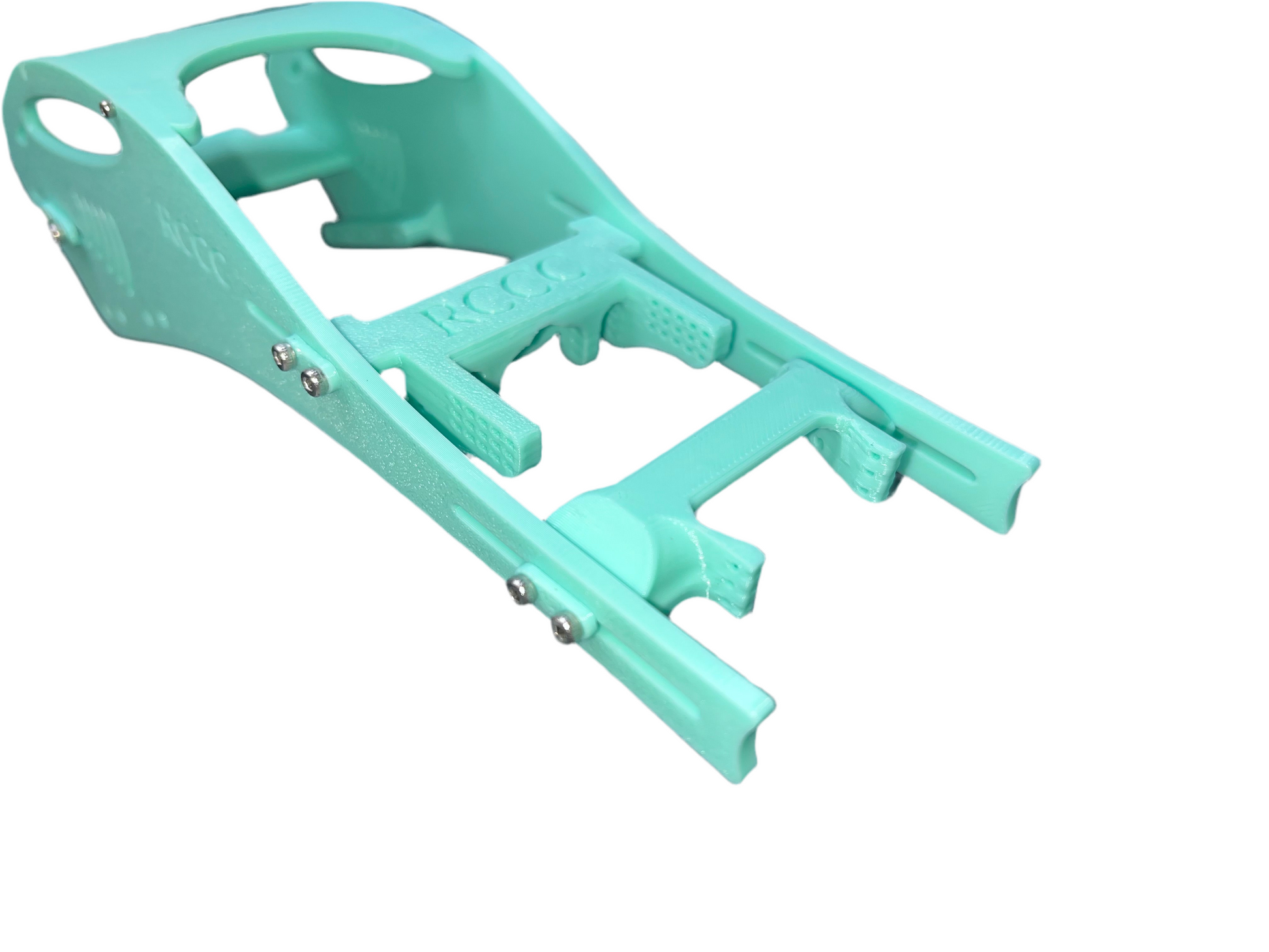

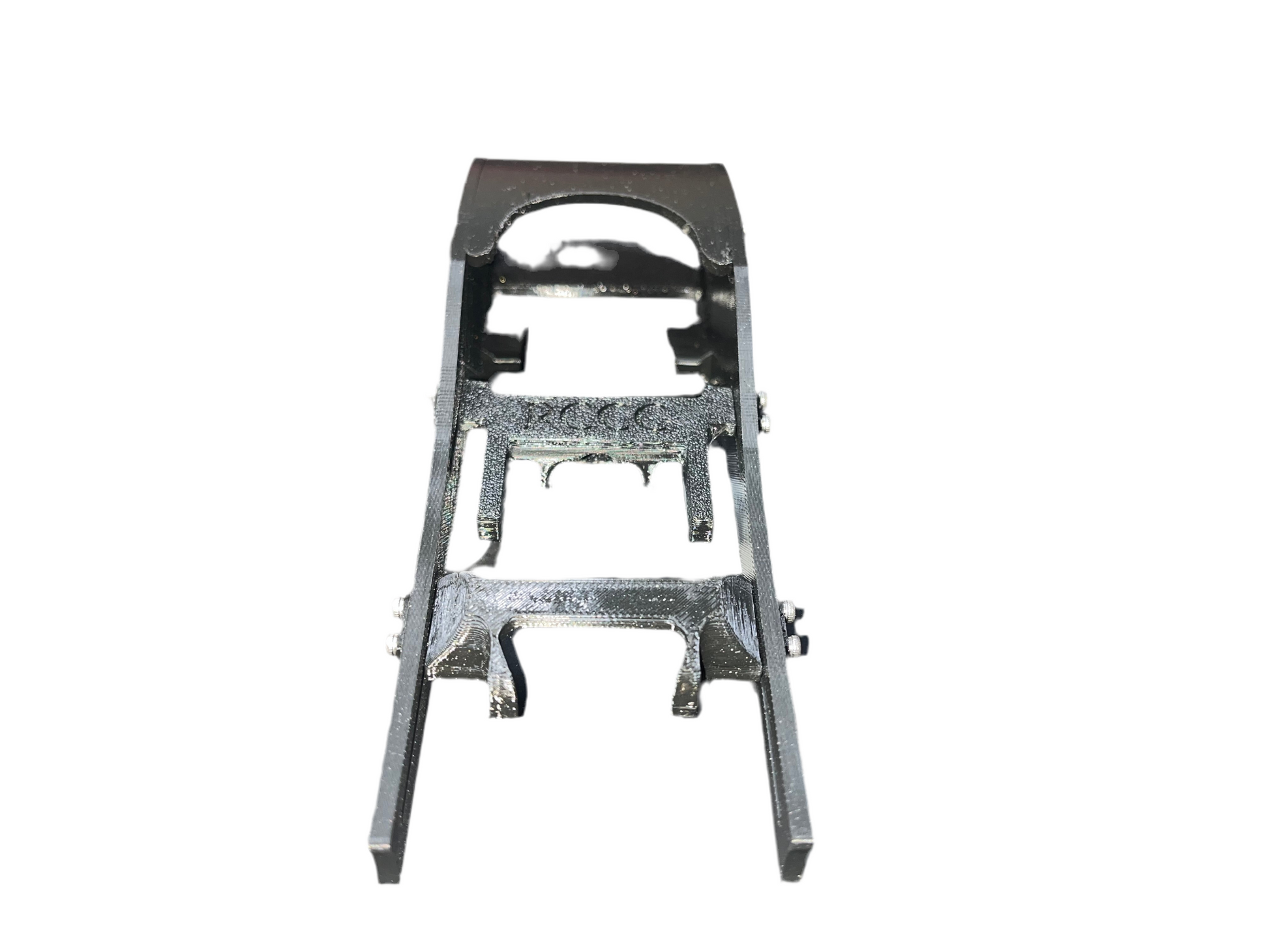

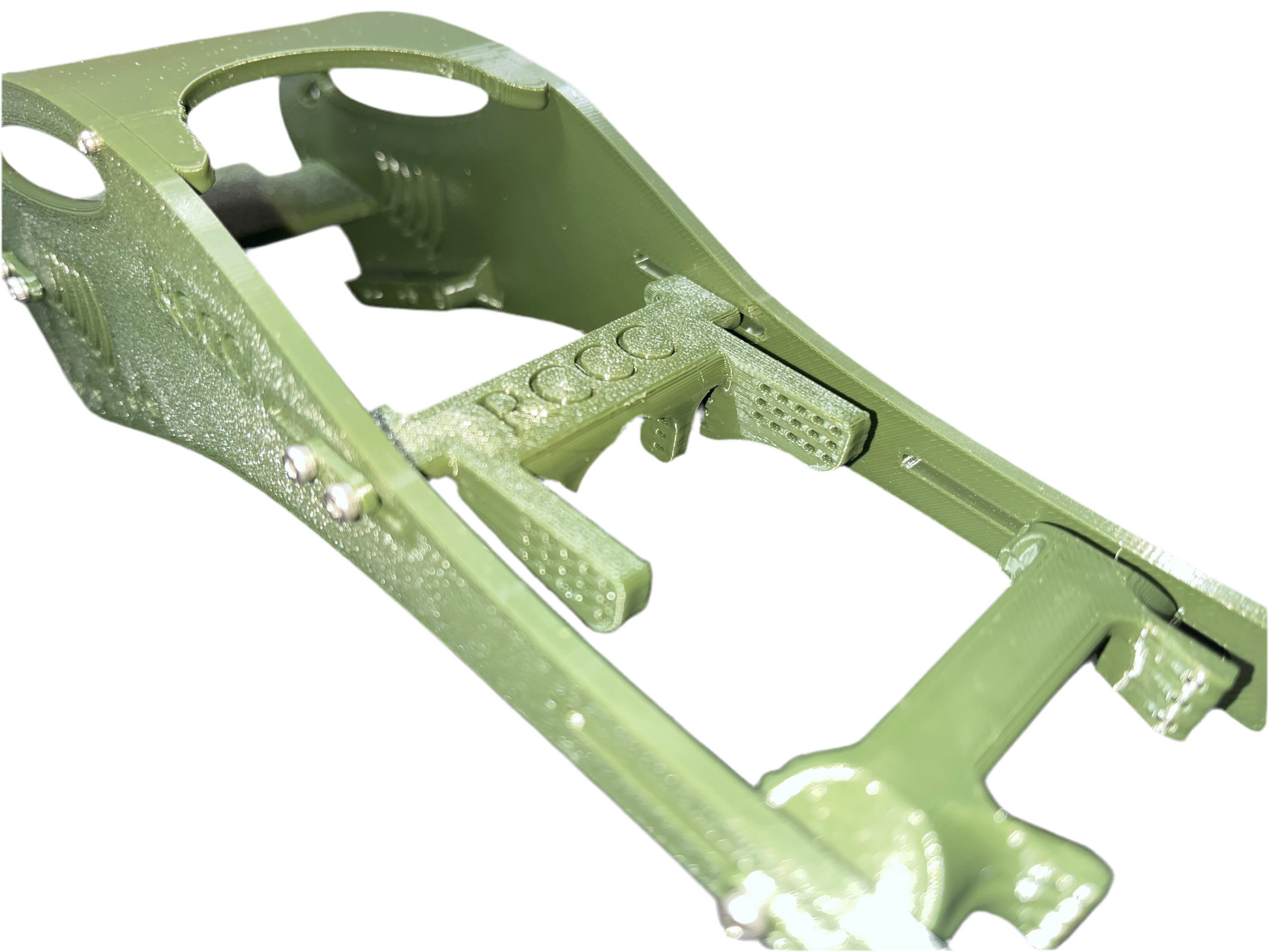

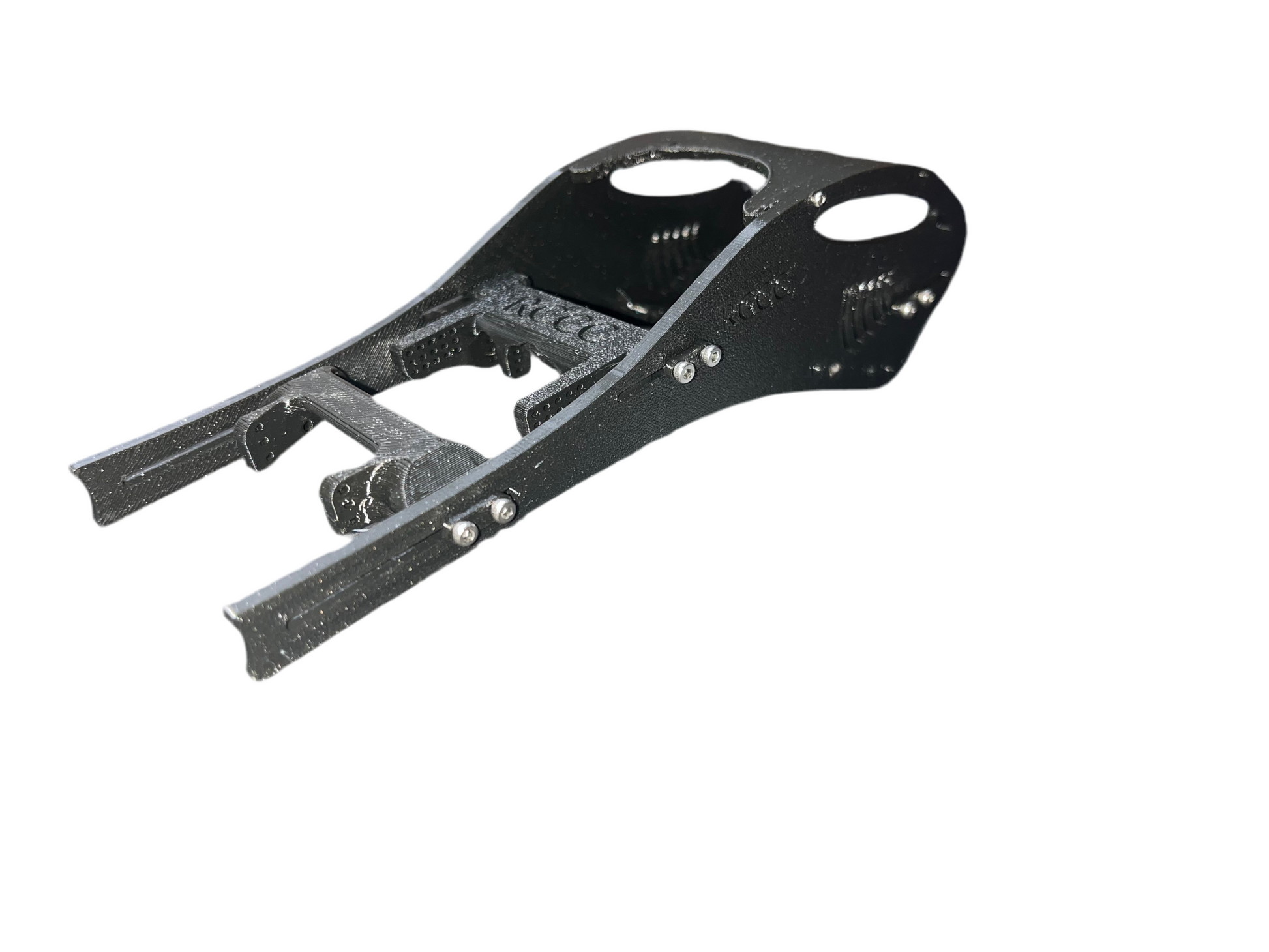

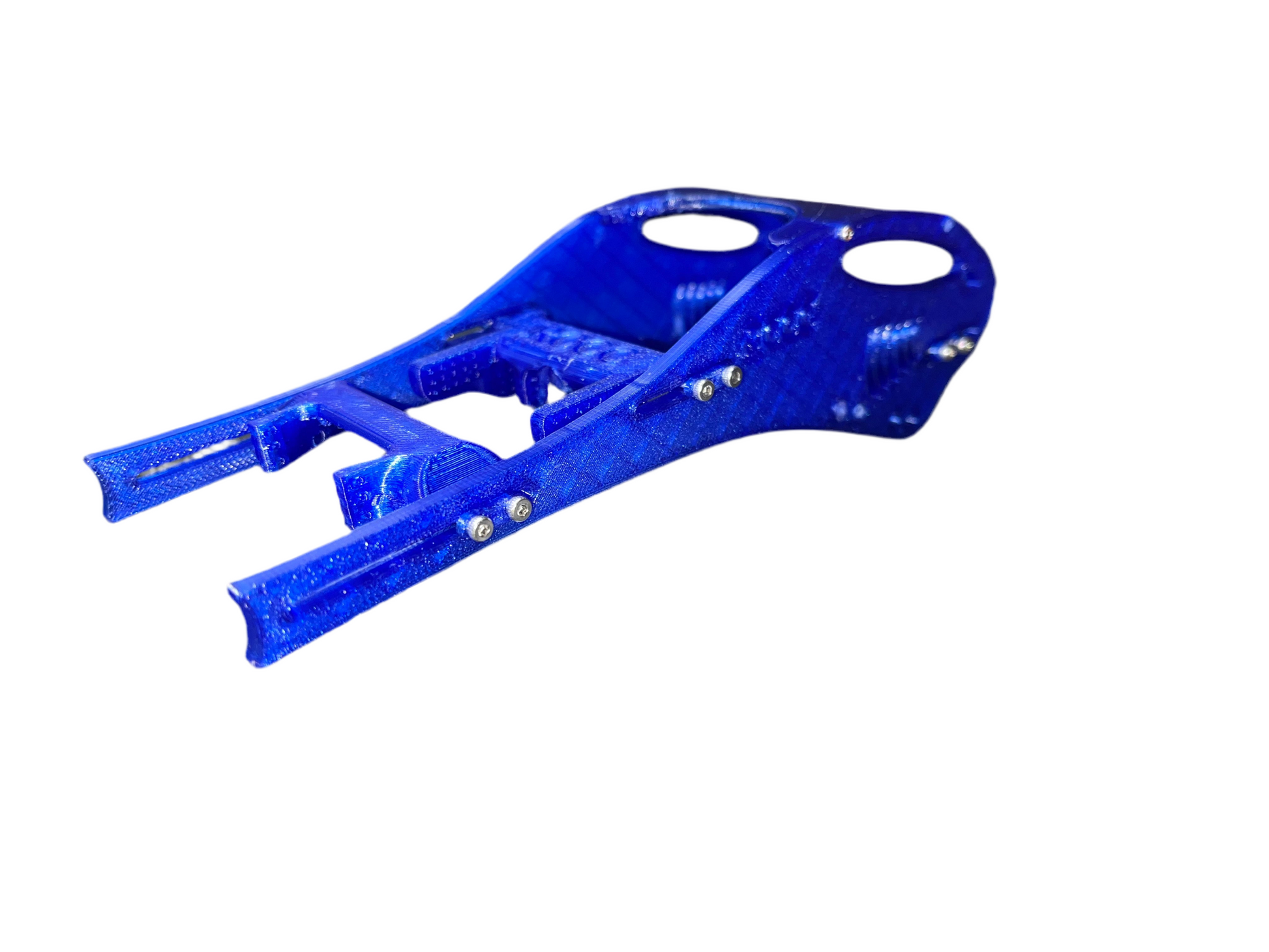

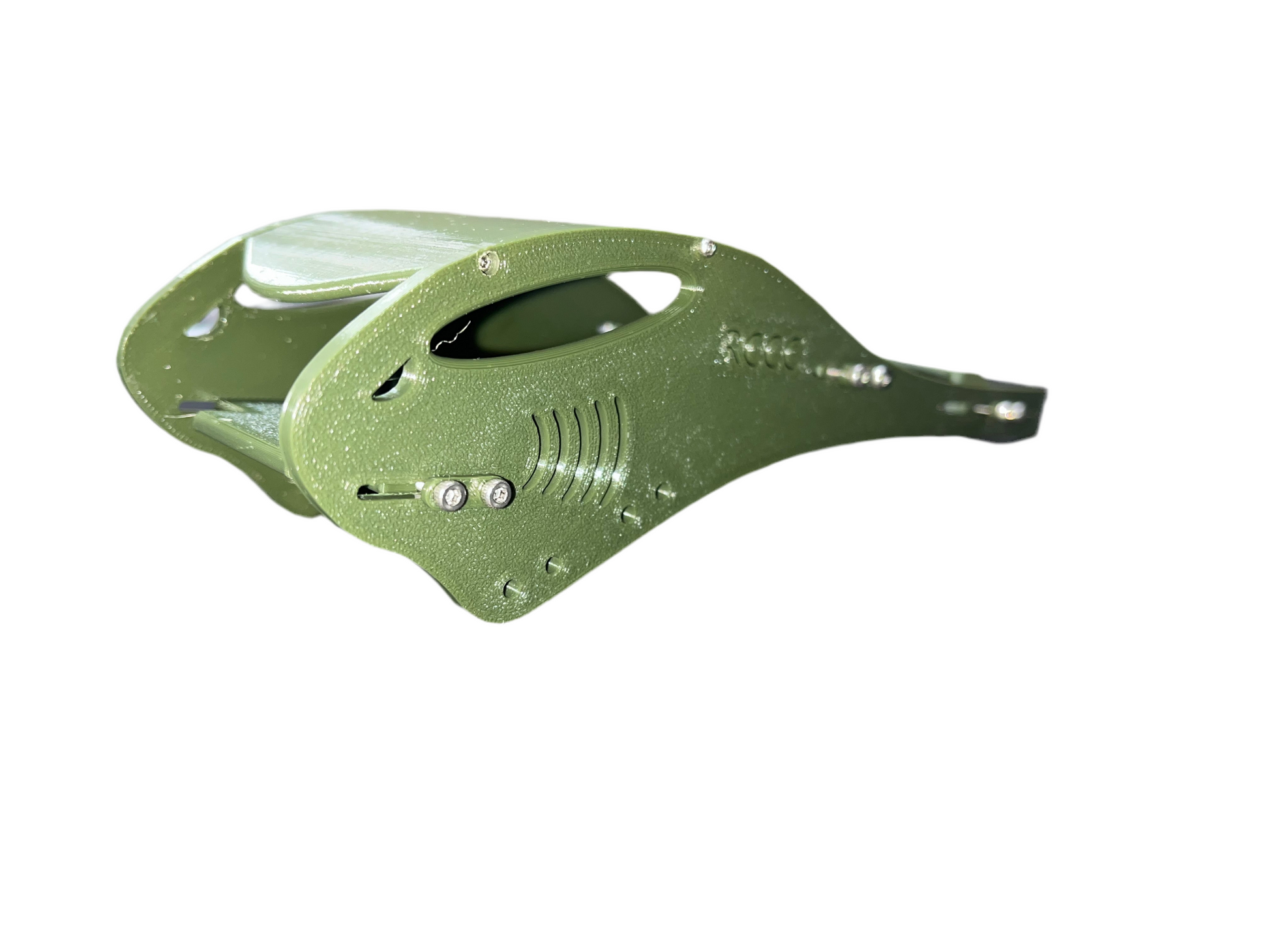

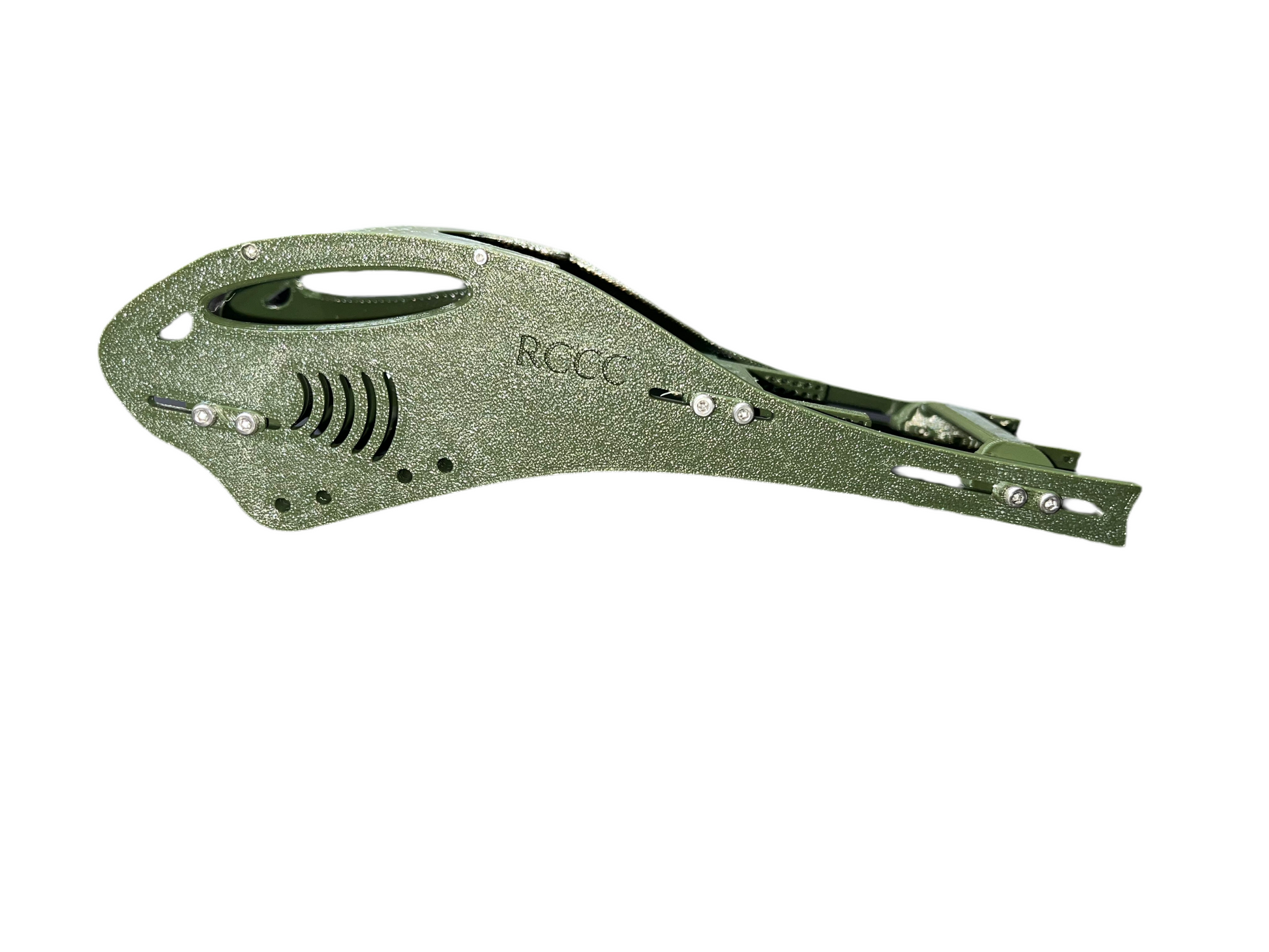

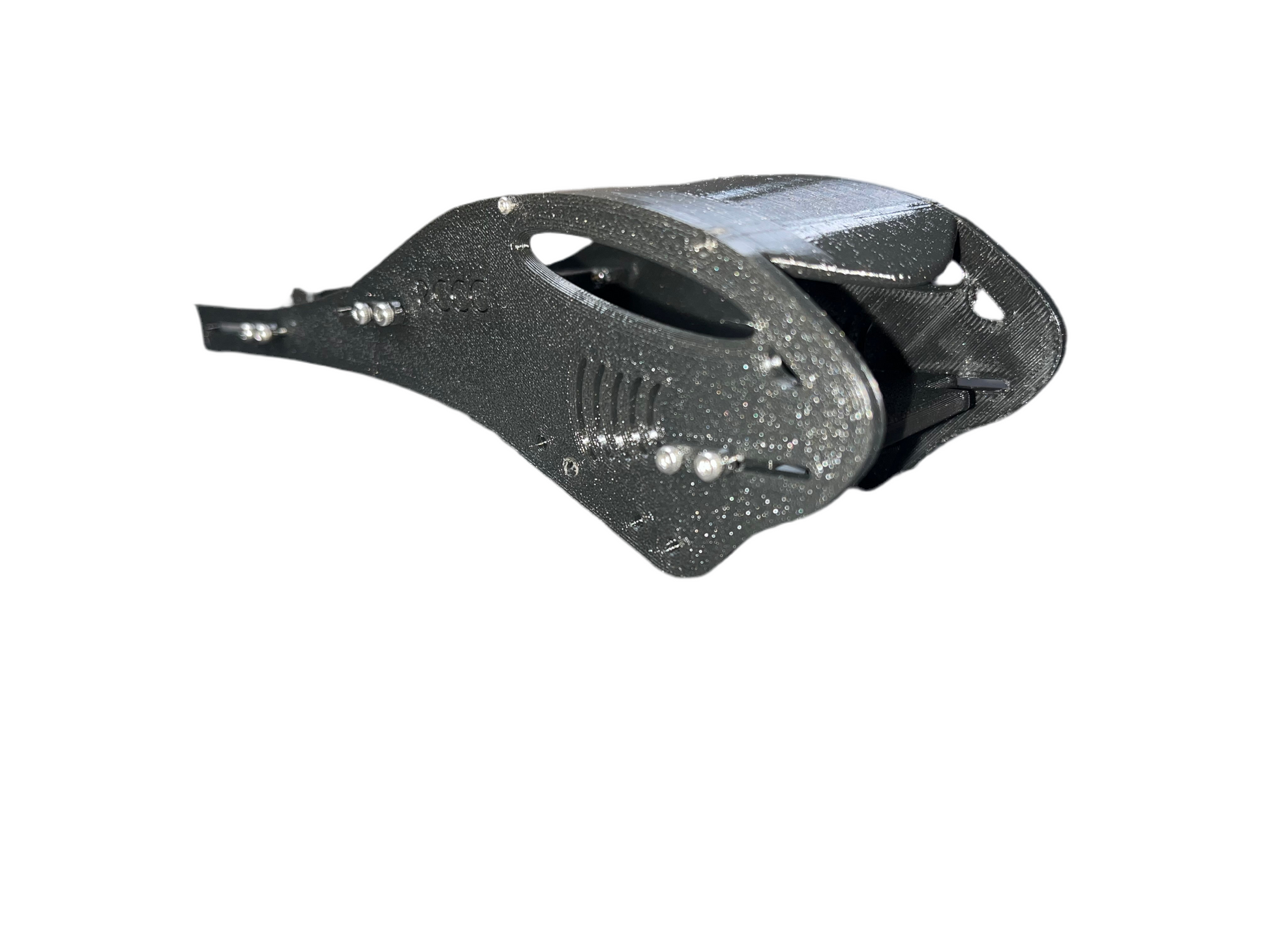

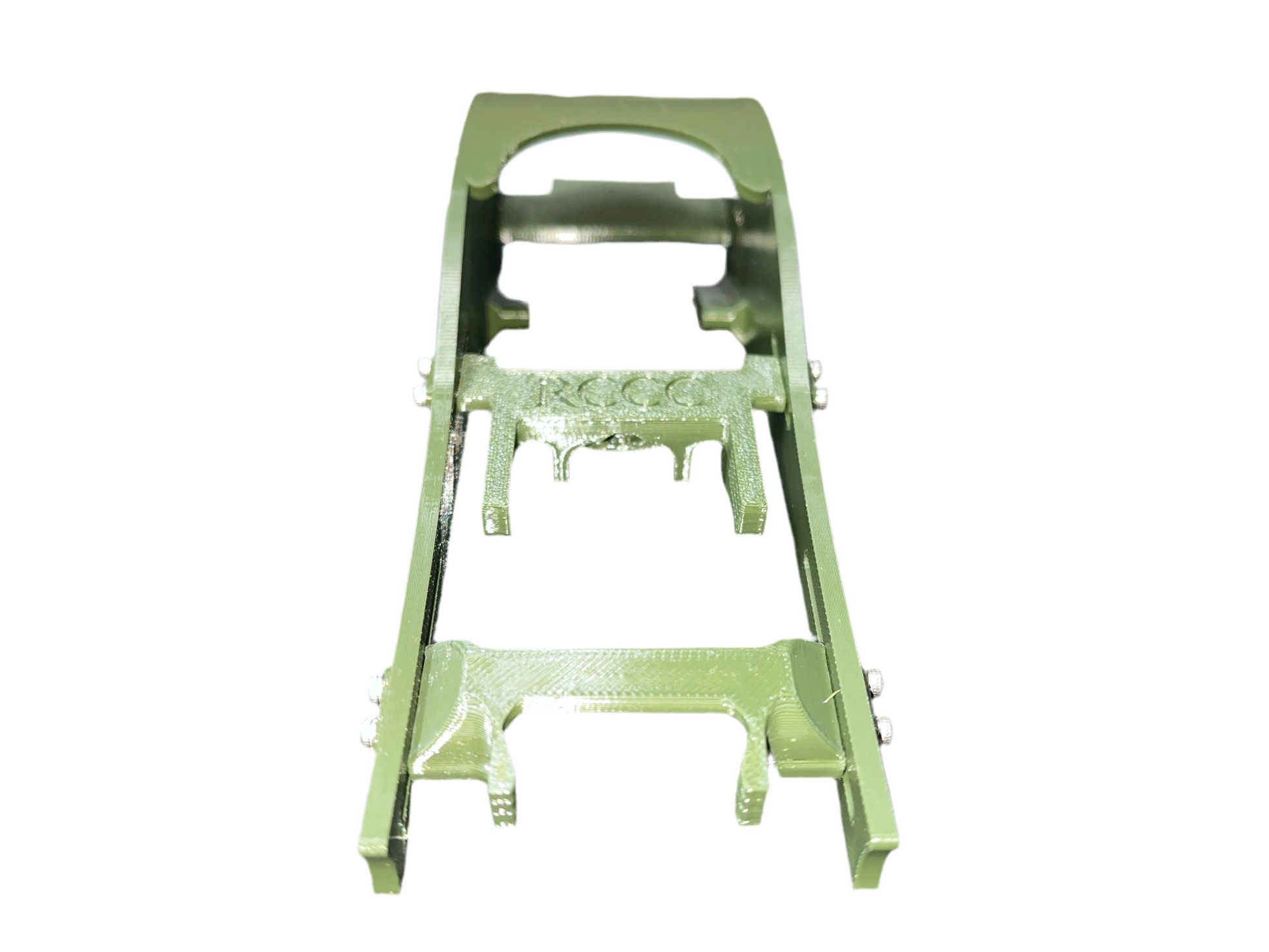

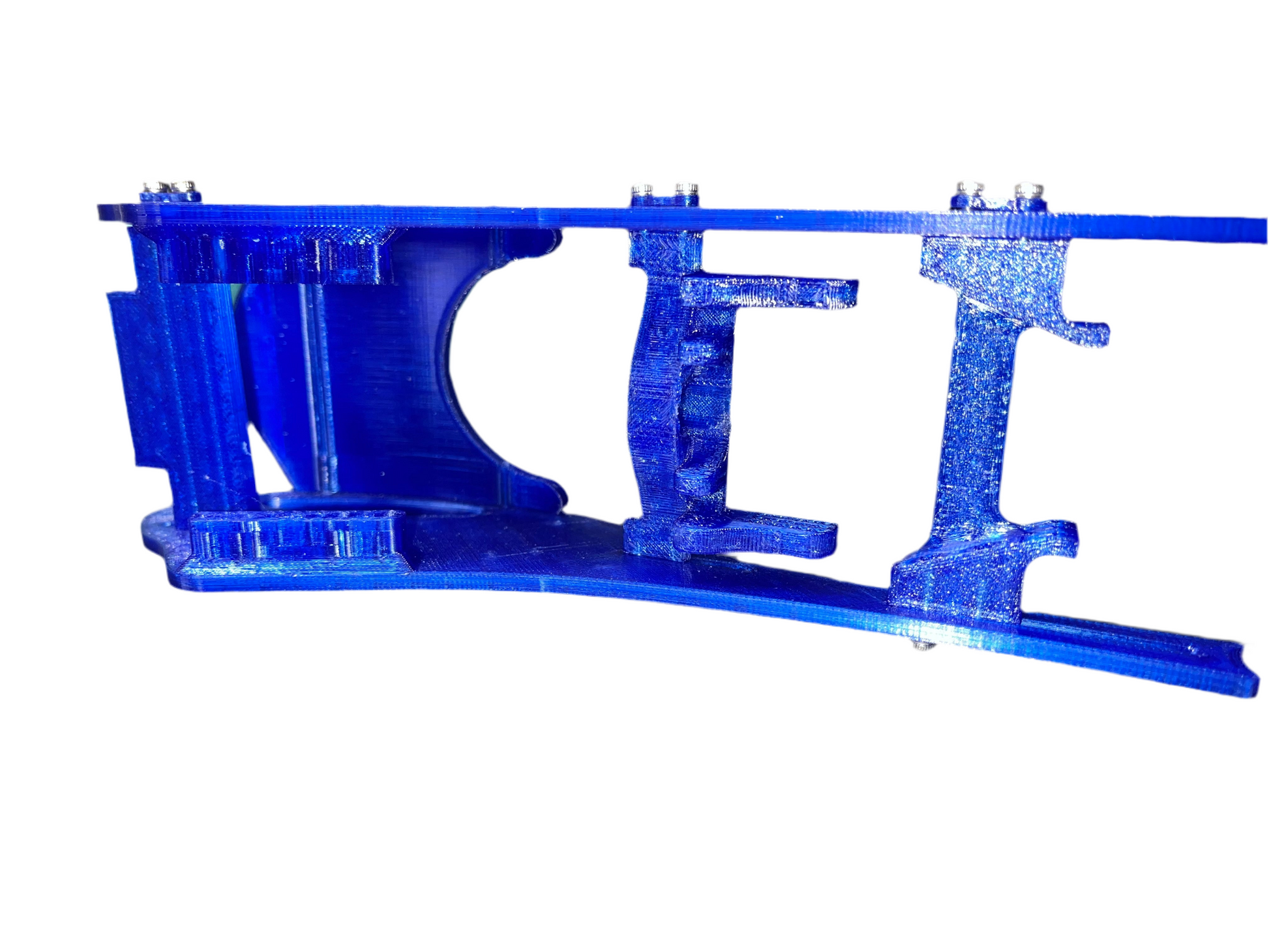

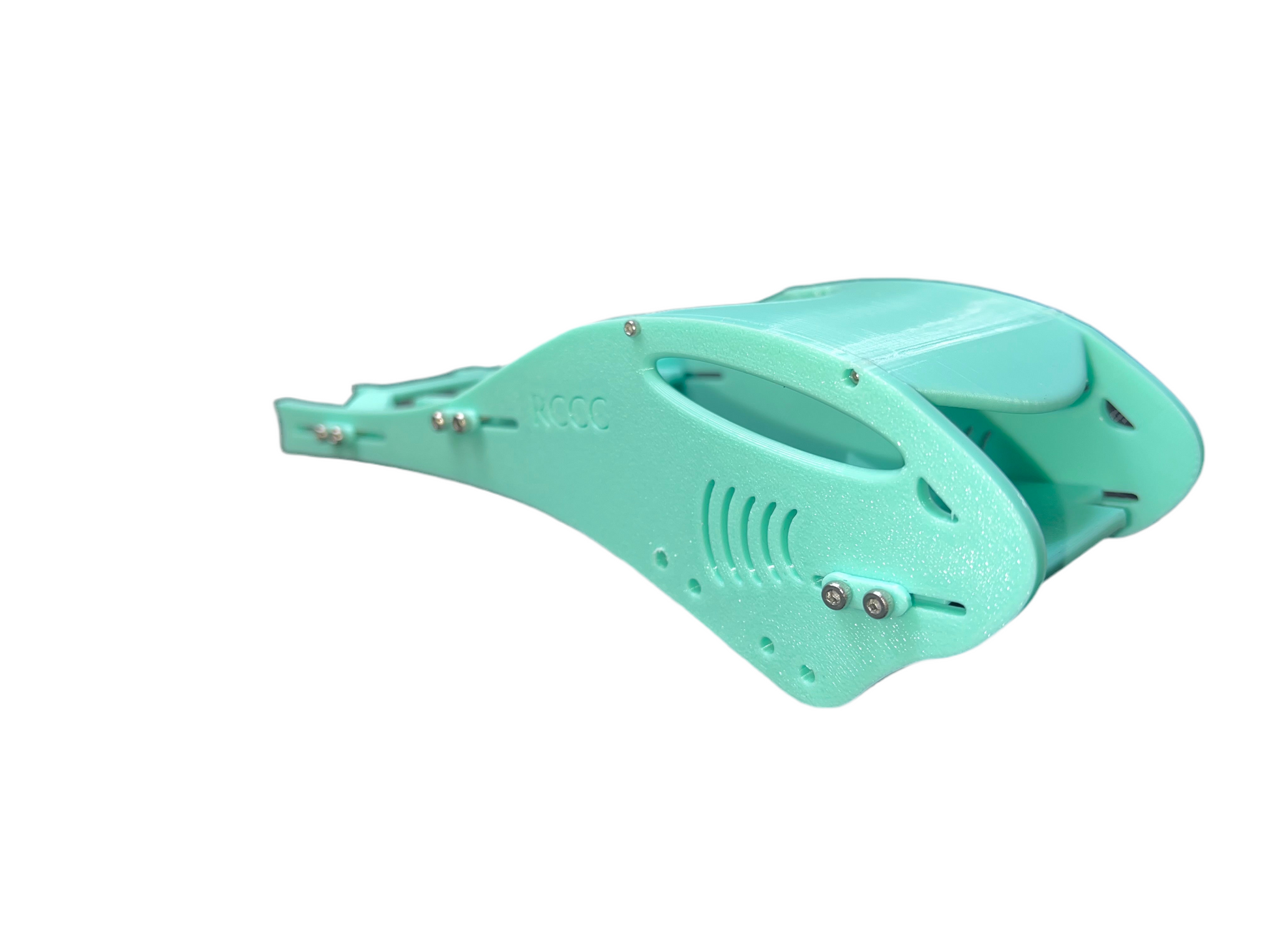

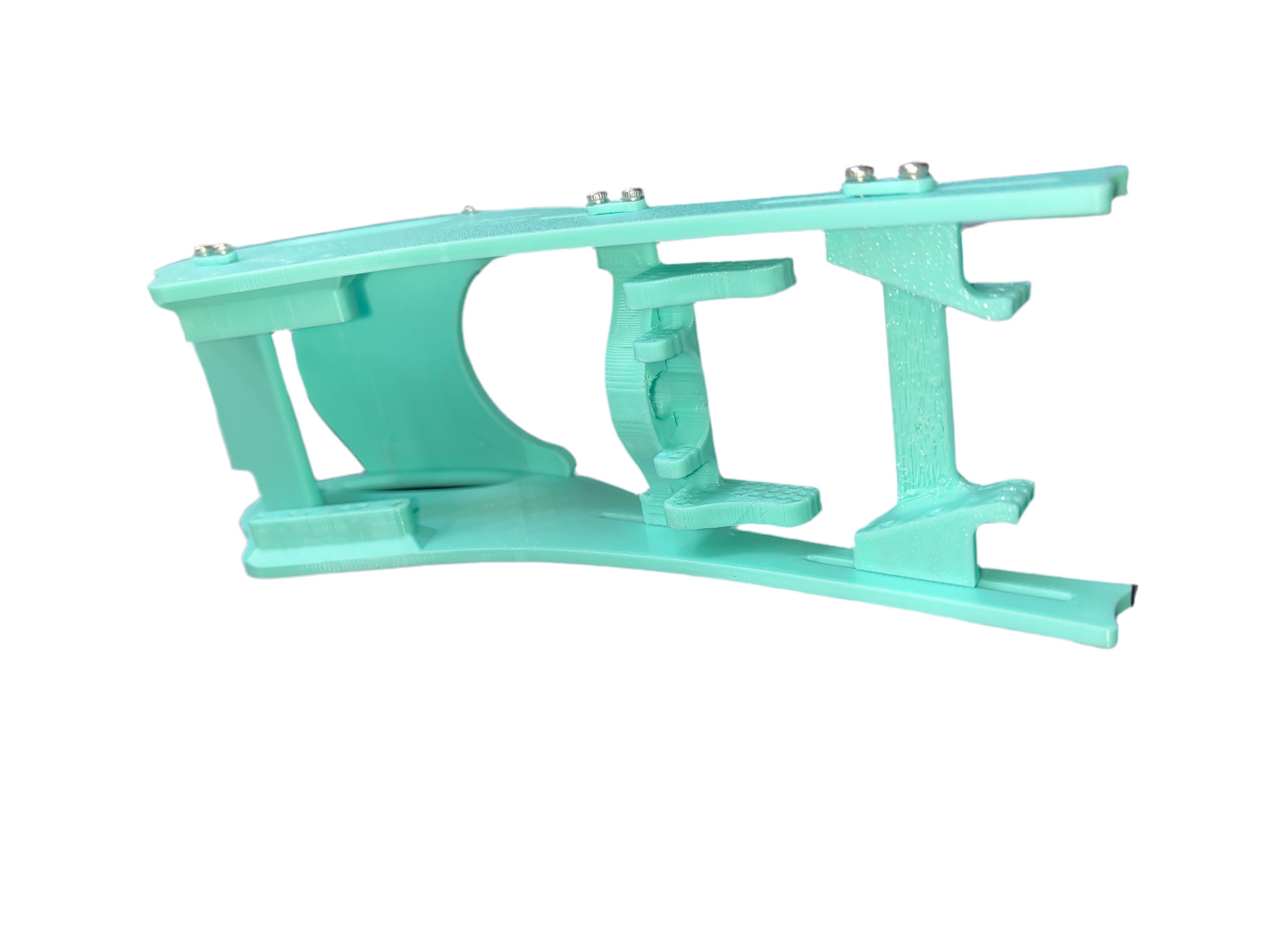

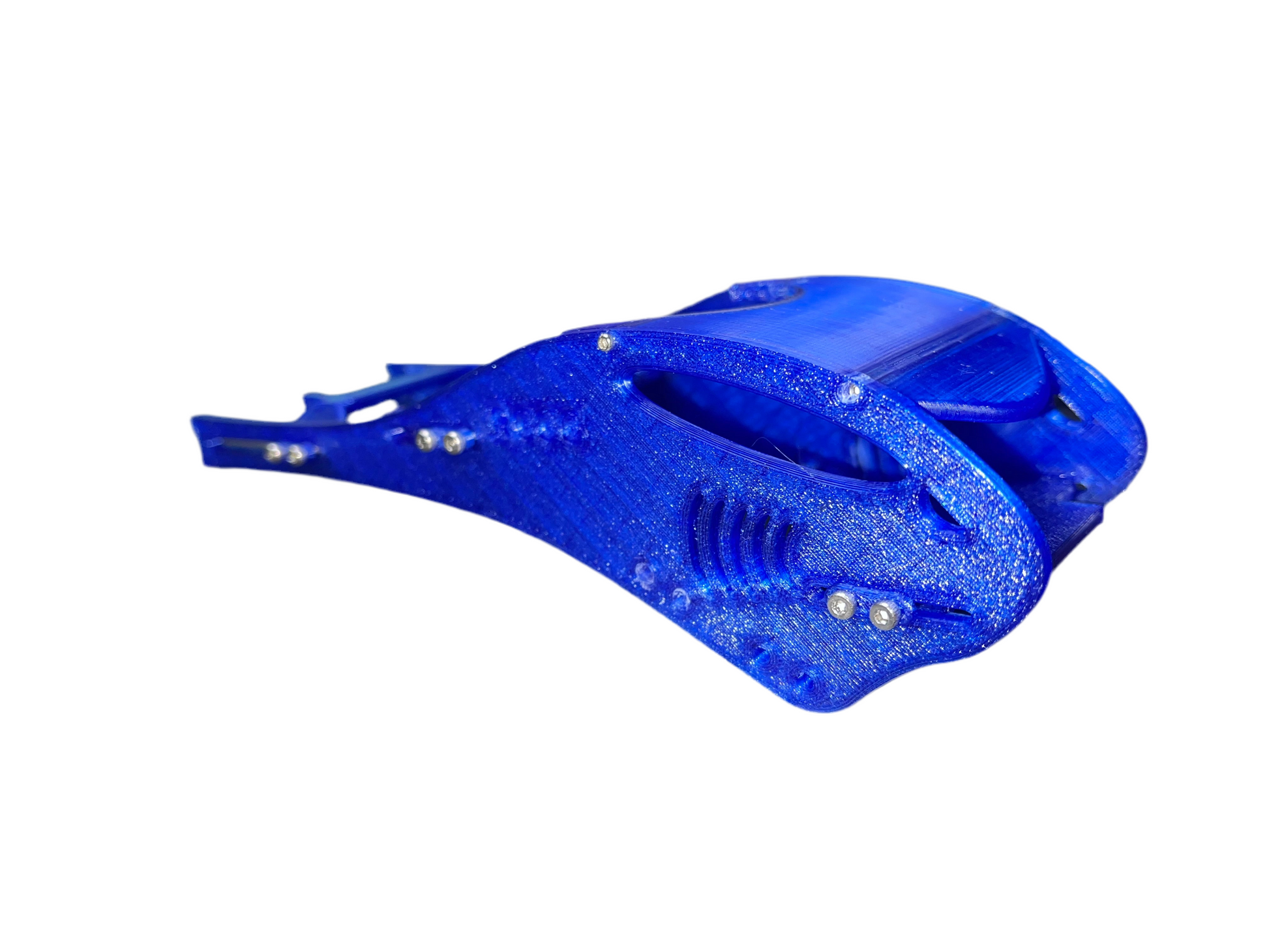

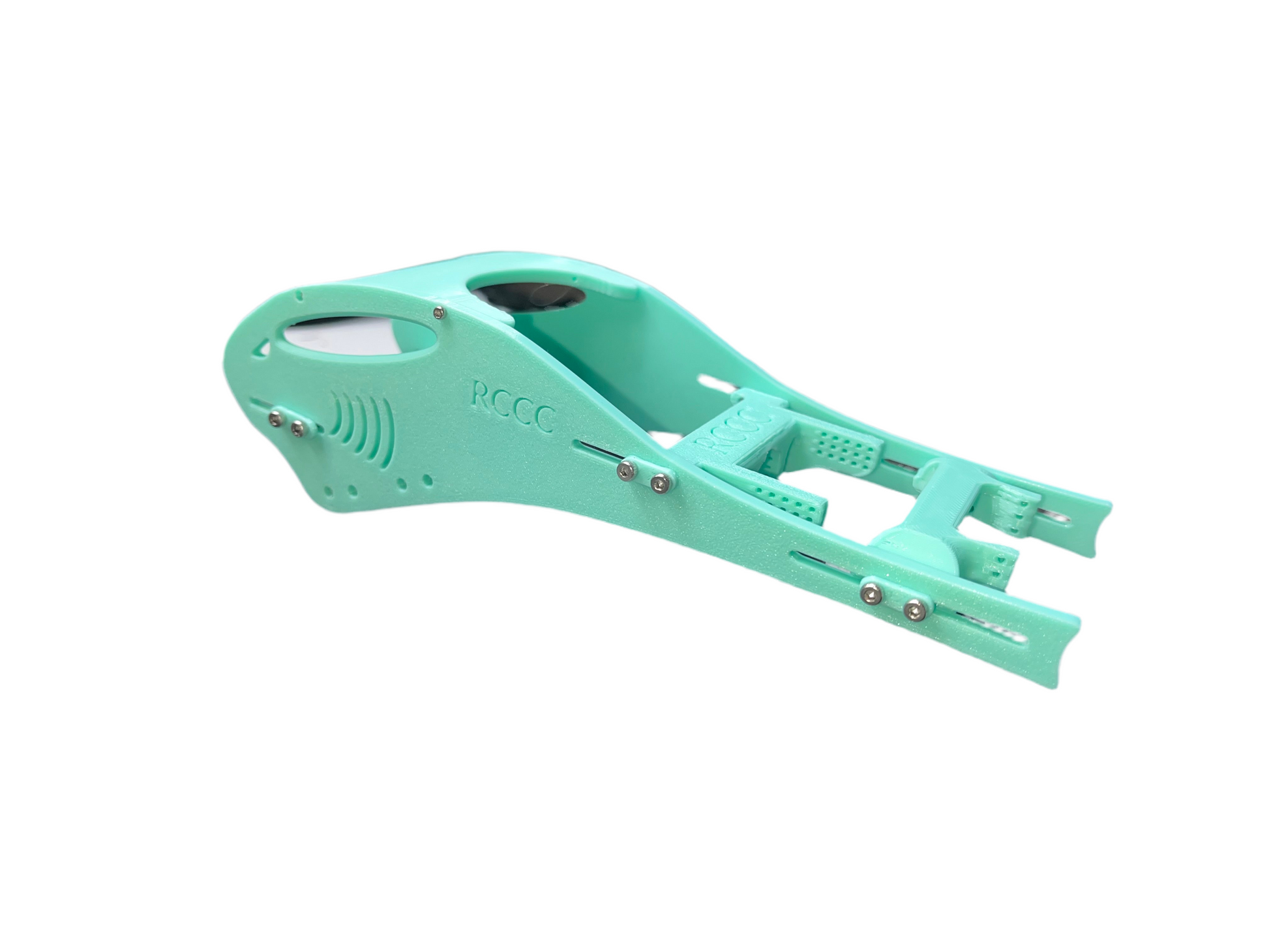

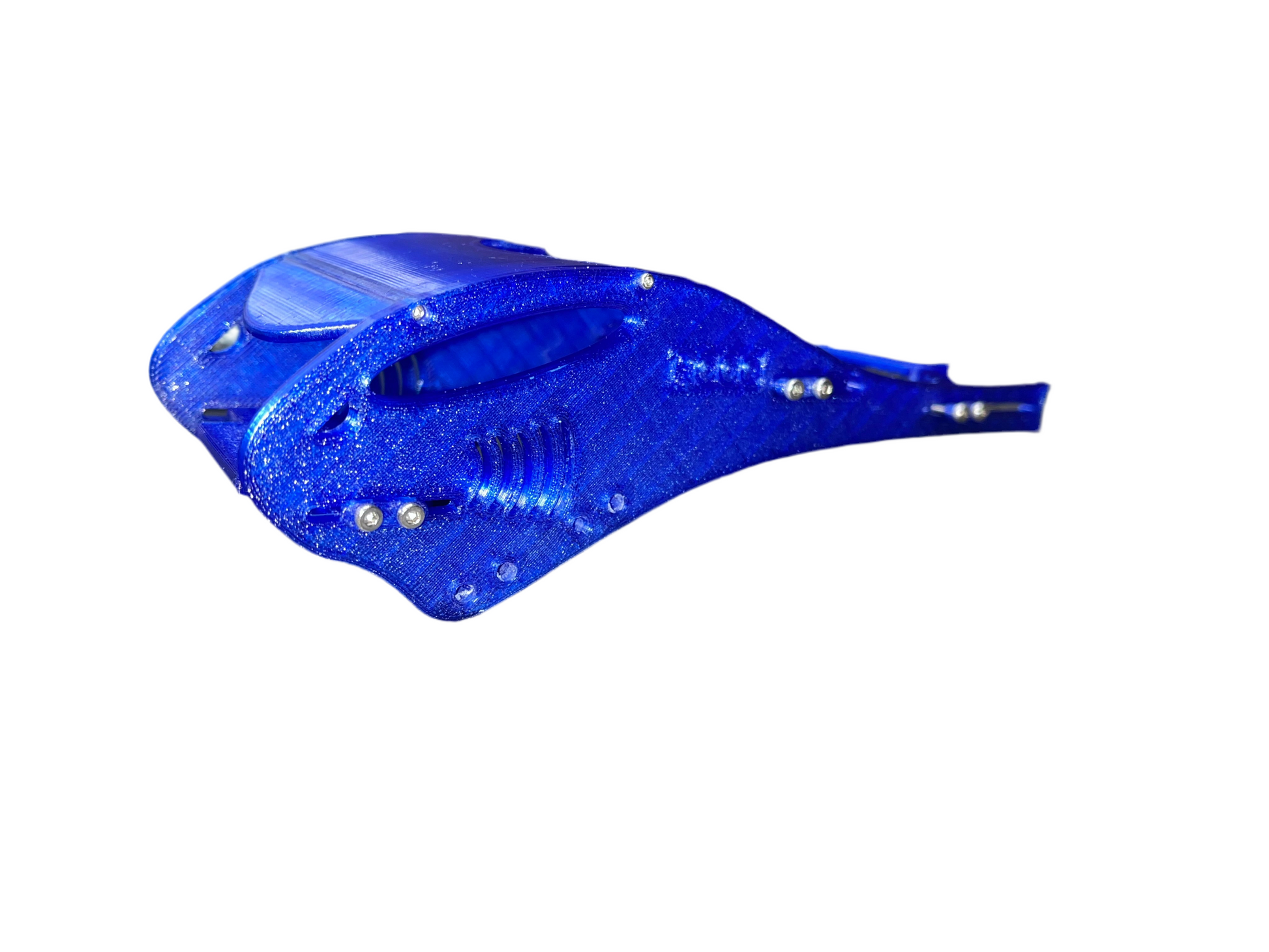

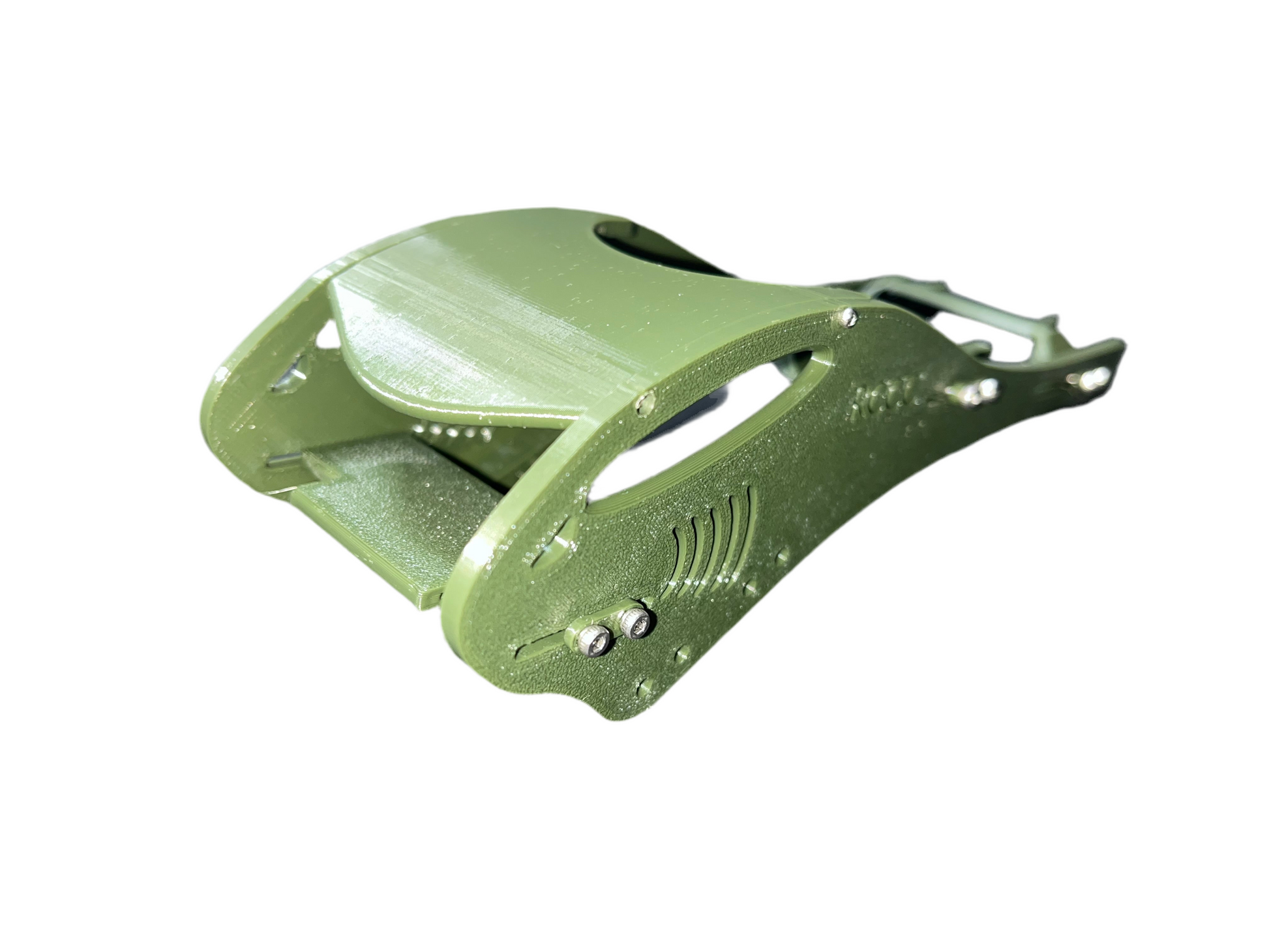

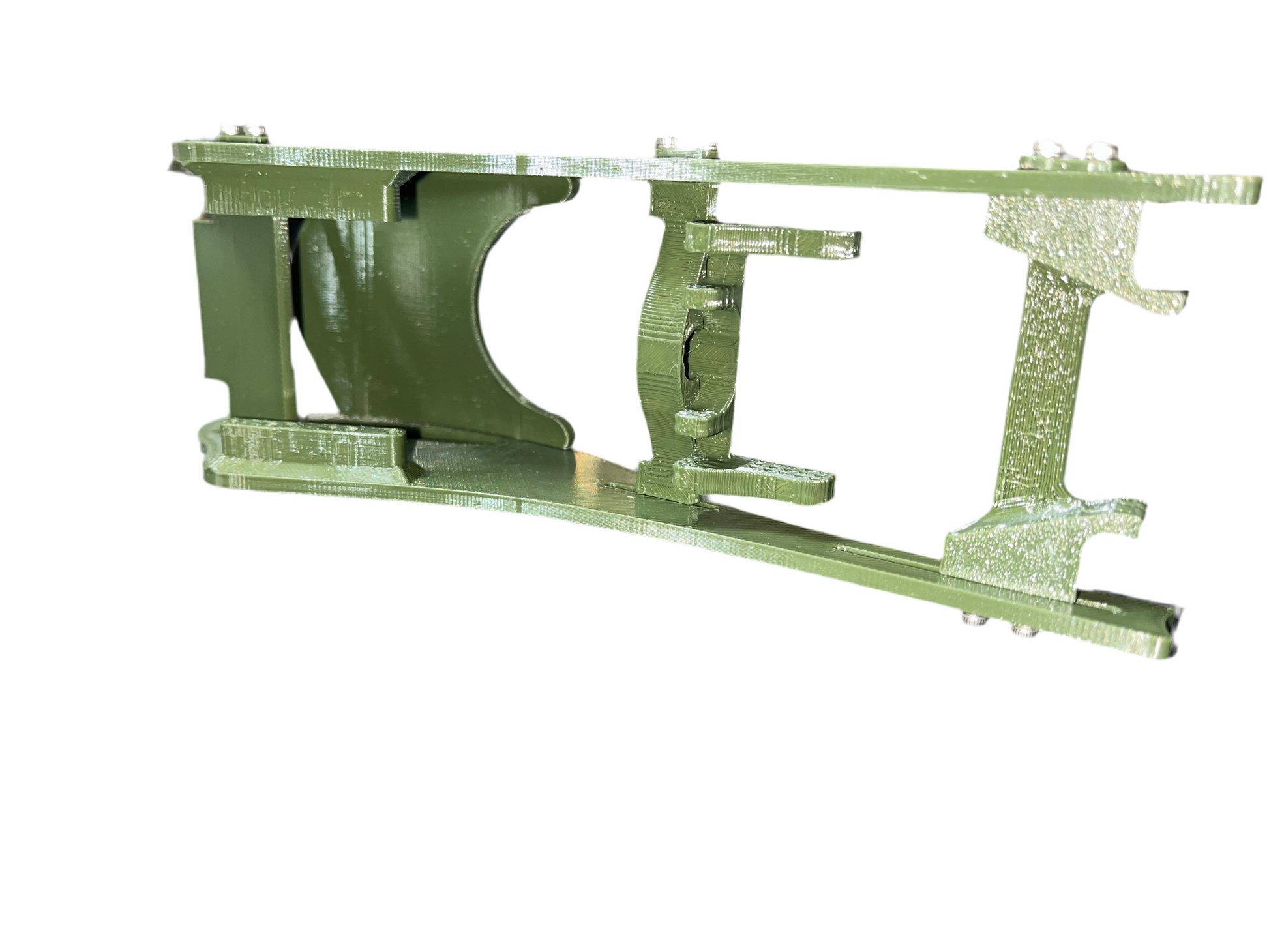

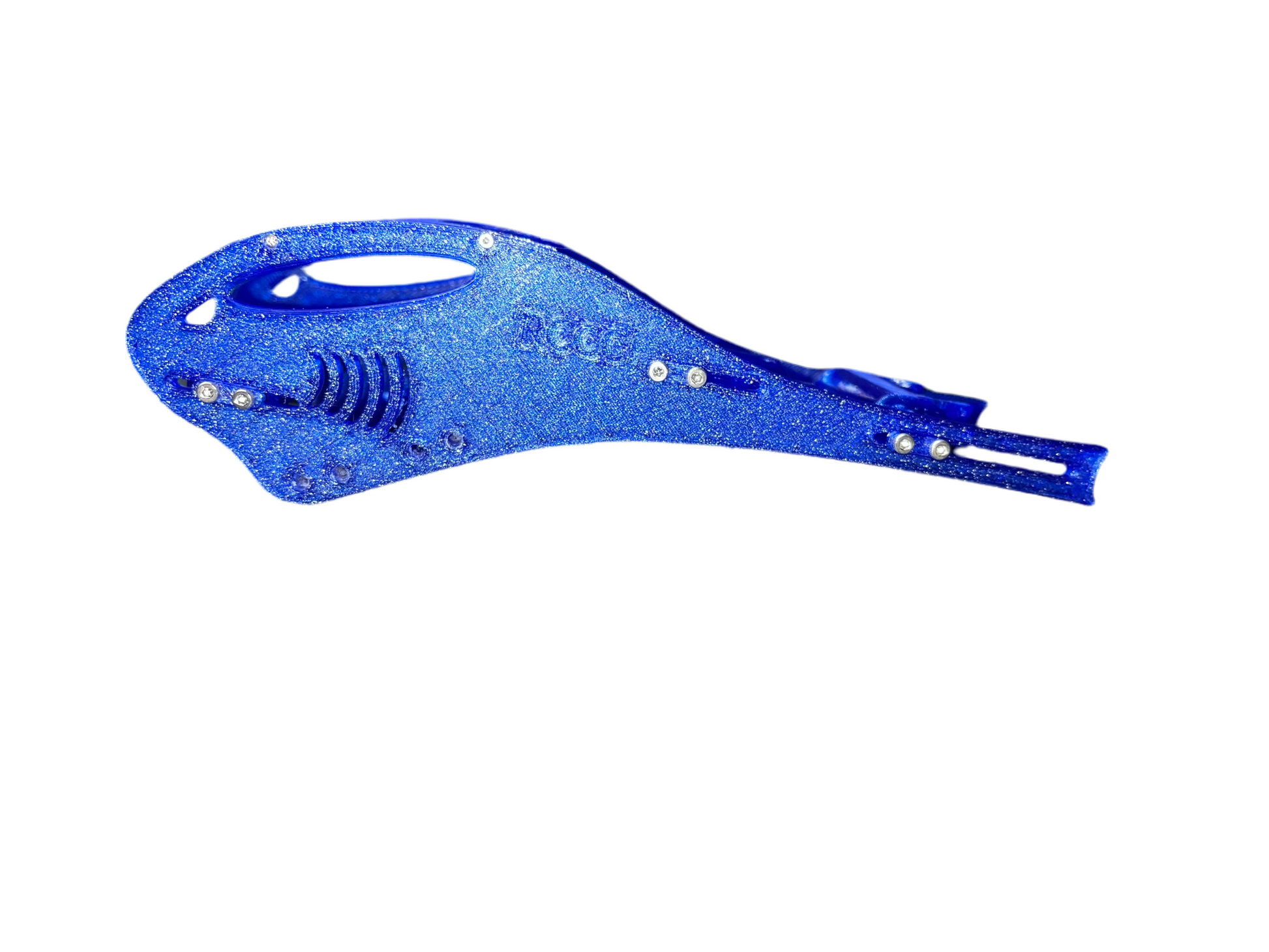

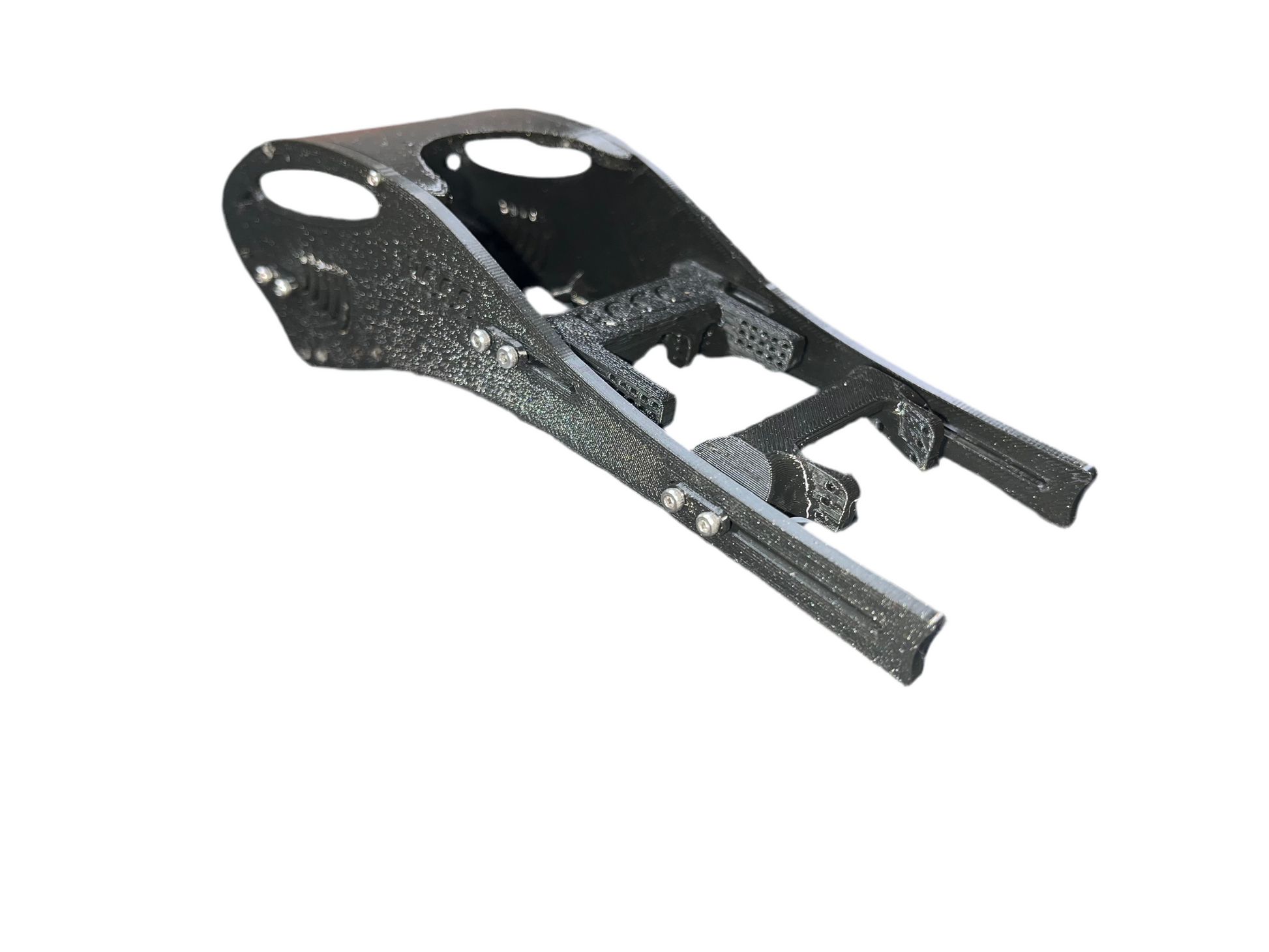

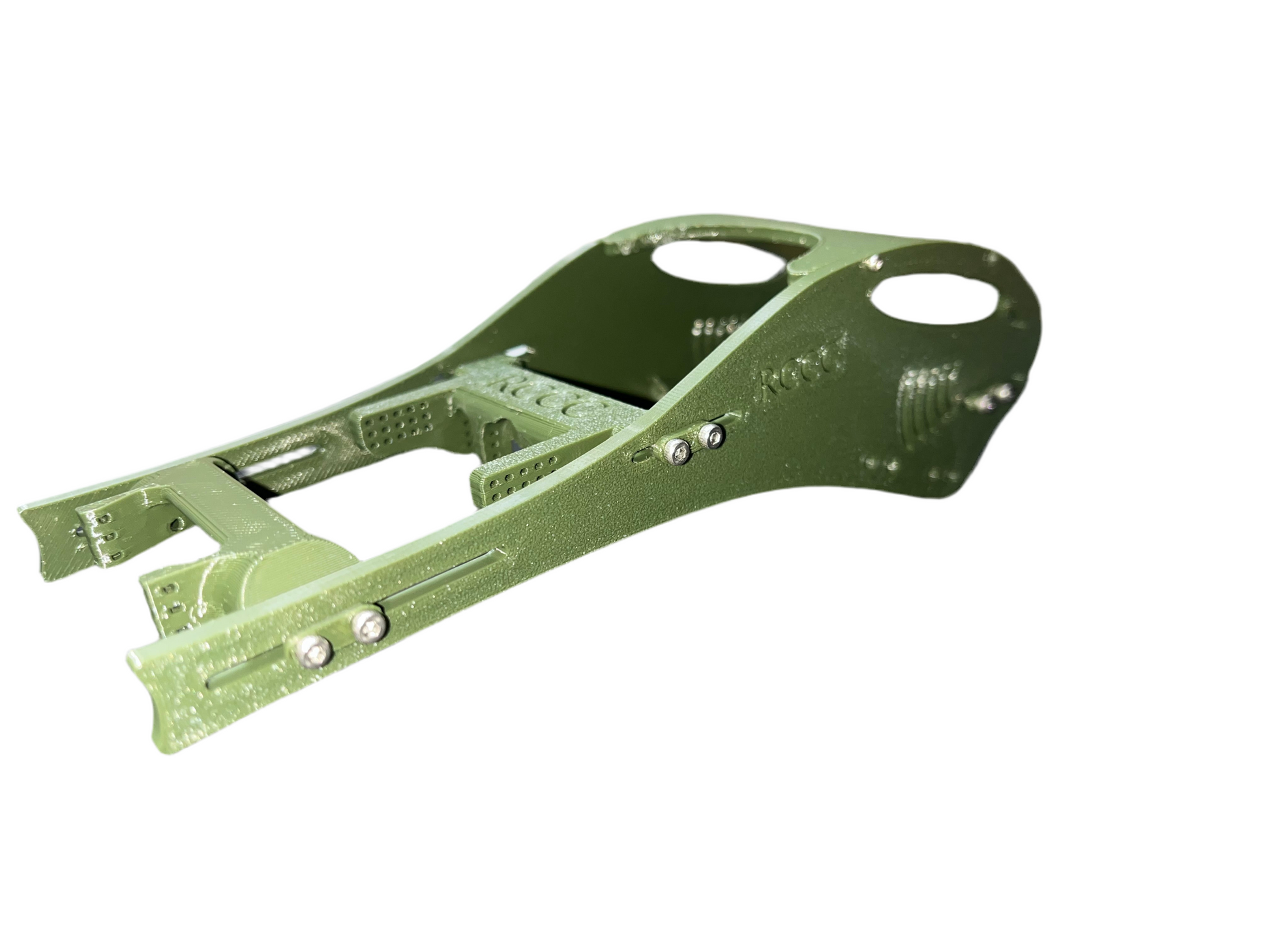

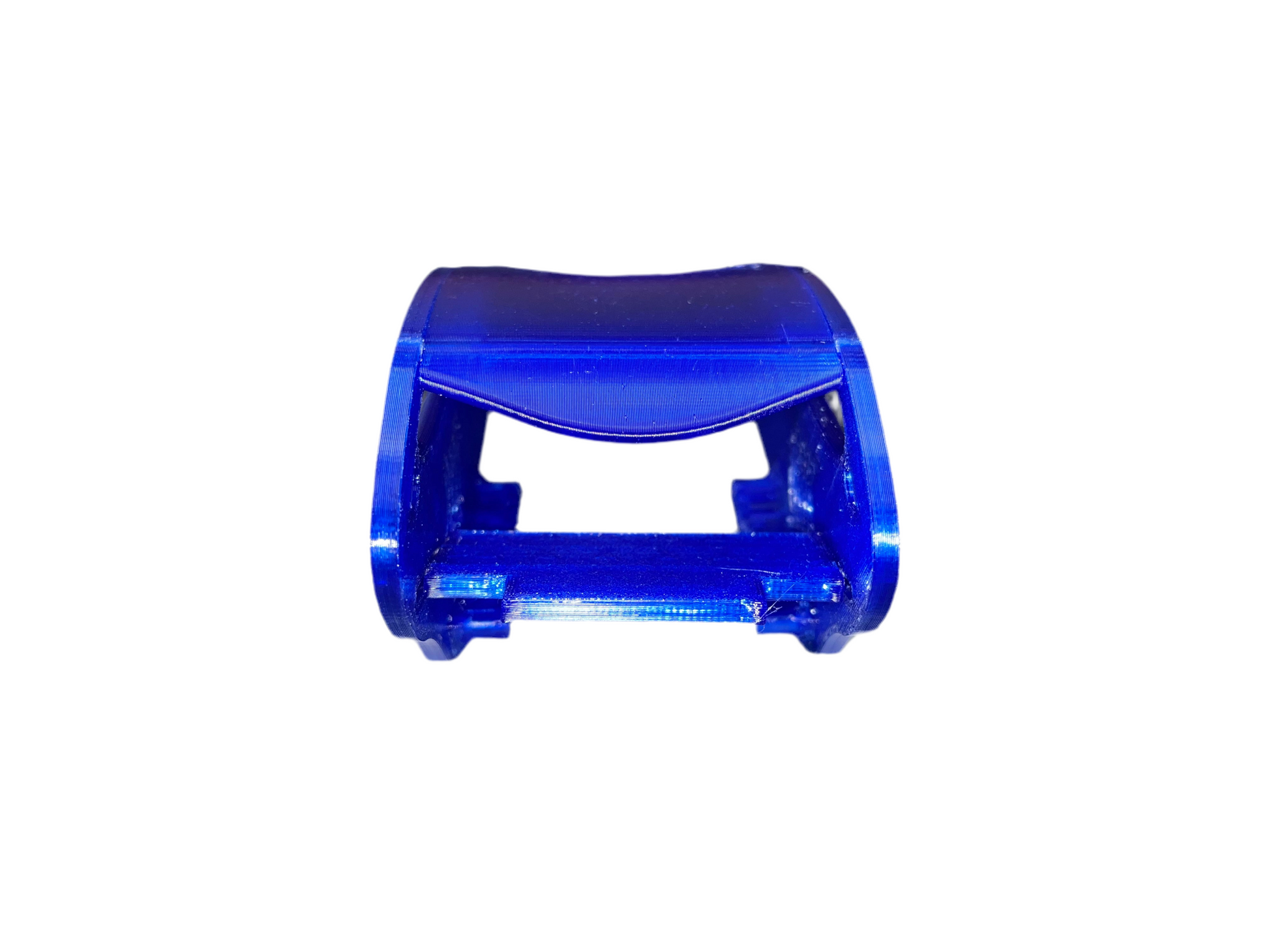

The RCCC Angler 24 chassis kit is an SCX24 base carrier bearing style platform.
•25° skid angle!
•57mm wide, 3mm thick chassis half’s and 51mm inside width.
•Designed for rear facing motor configuration.
• Rear roof opening allows for space to fit large 370 size motor configuration.
•ADJUSTABLE Front and Rear Shock Mounts! This allows for fine tuning ride height and shock position by sliding the mounts forward and back. The shocks mount on the inside of the chassis half’s providing a clean appearance.

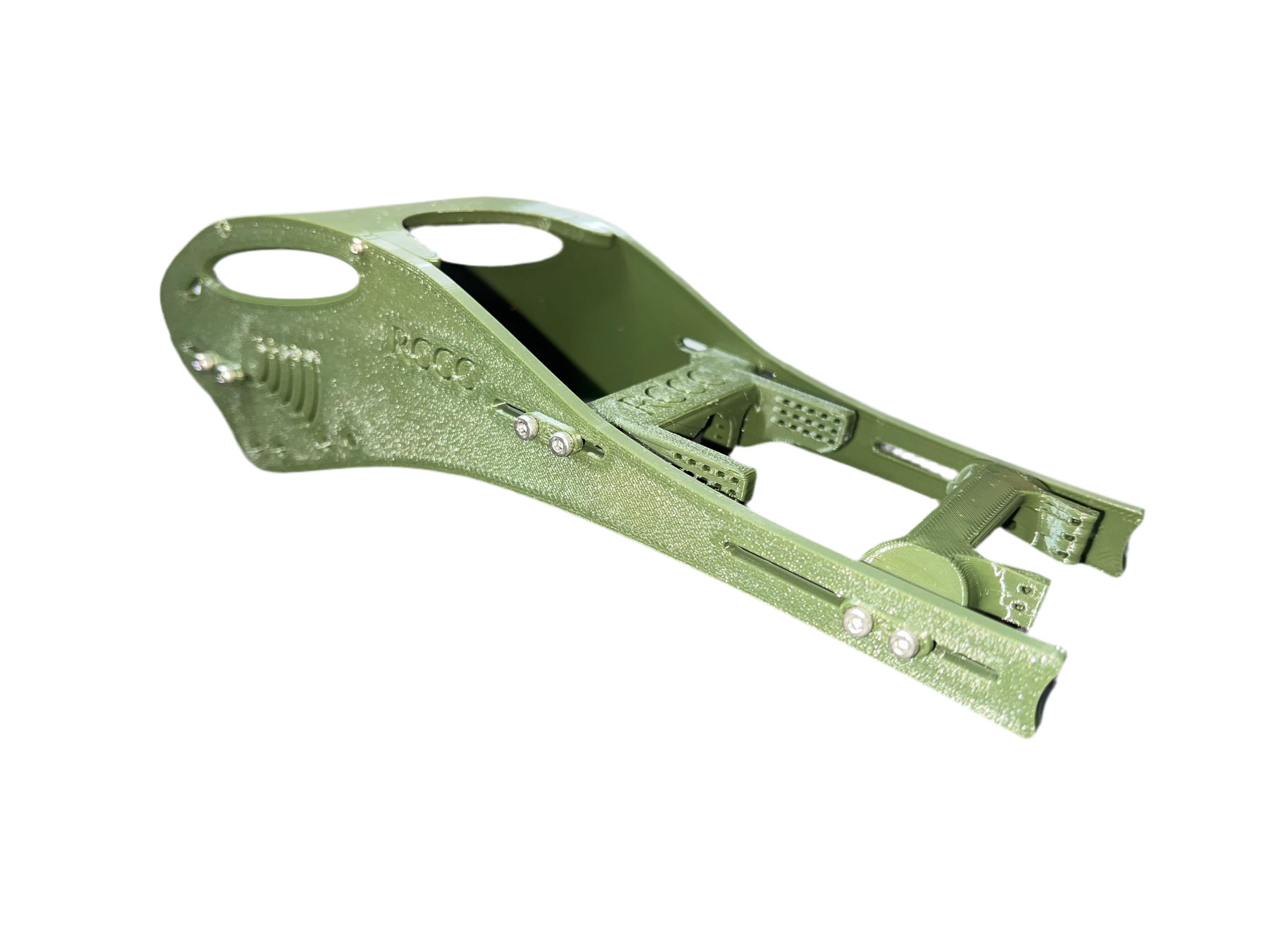

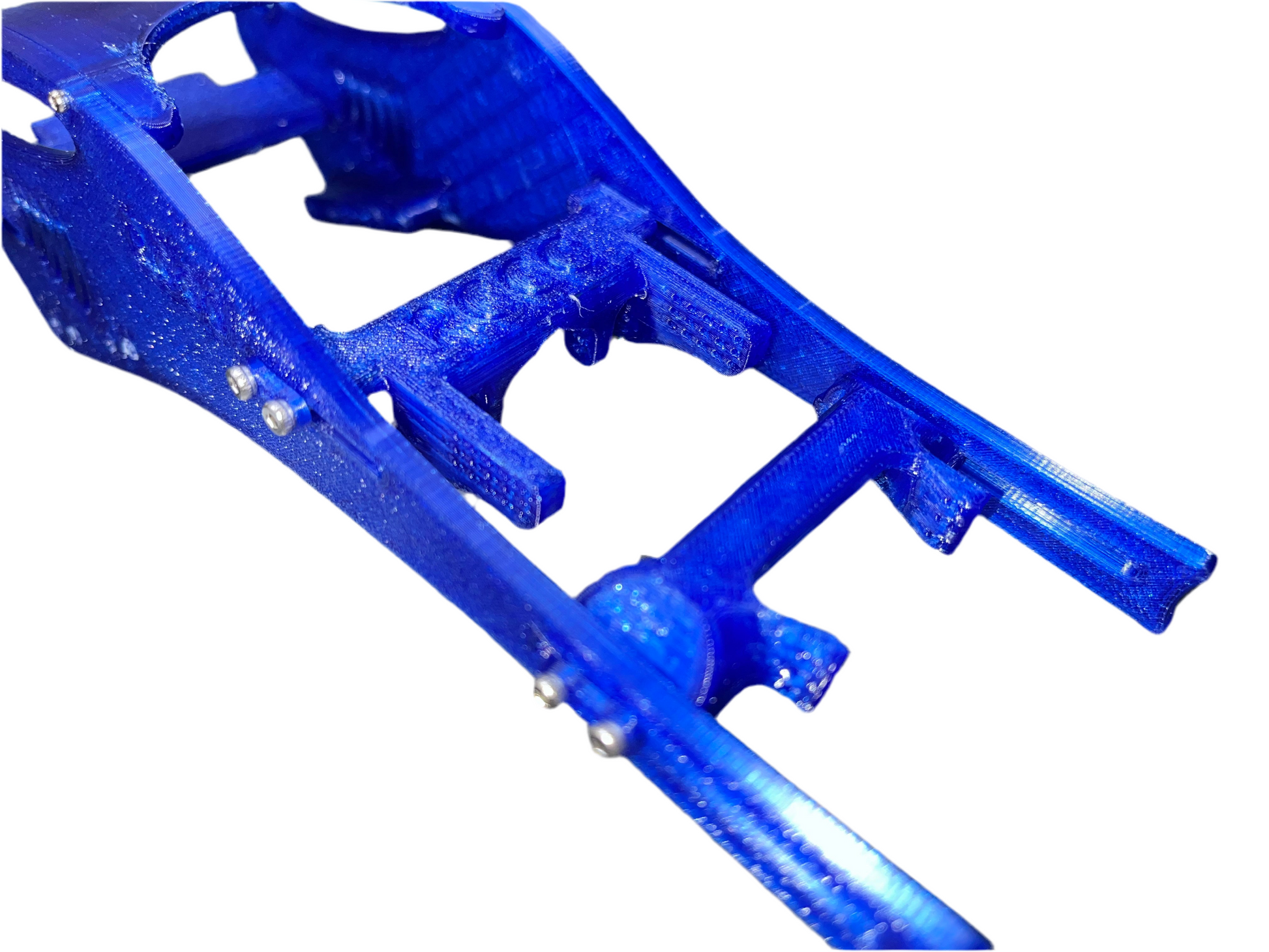

• ADJUSTABLE Carrier Bearing/Rear Link Mount! This feature allows for fine tuning your rig’s wheelbase.

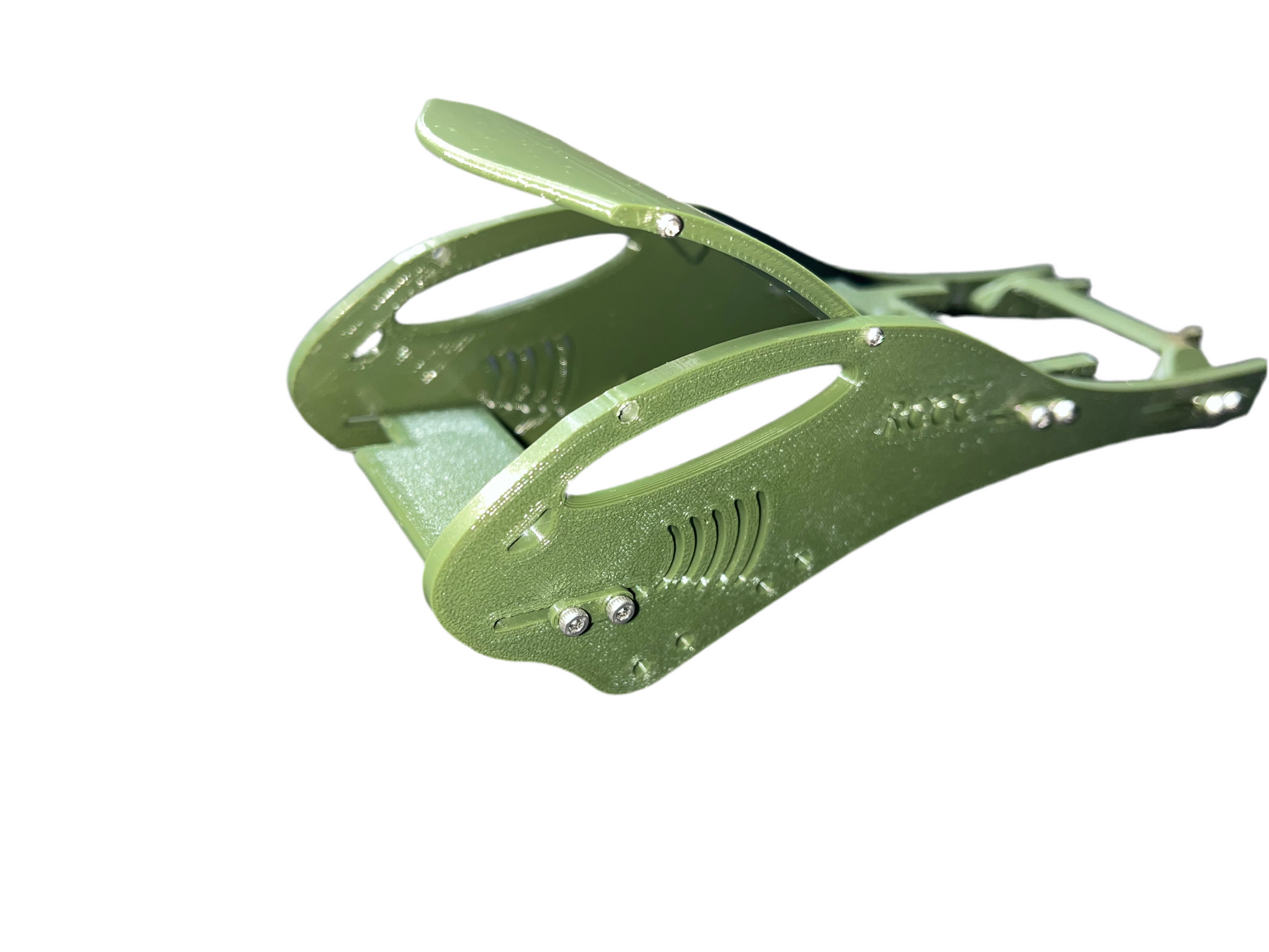

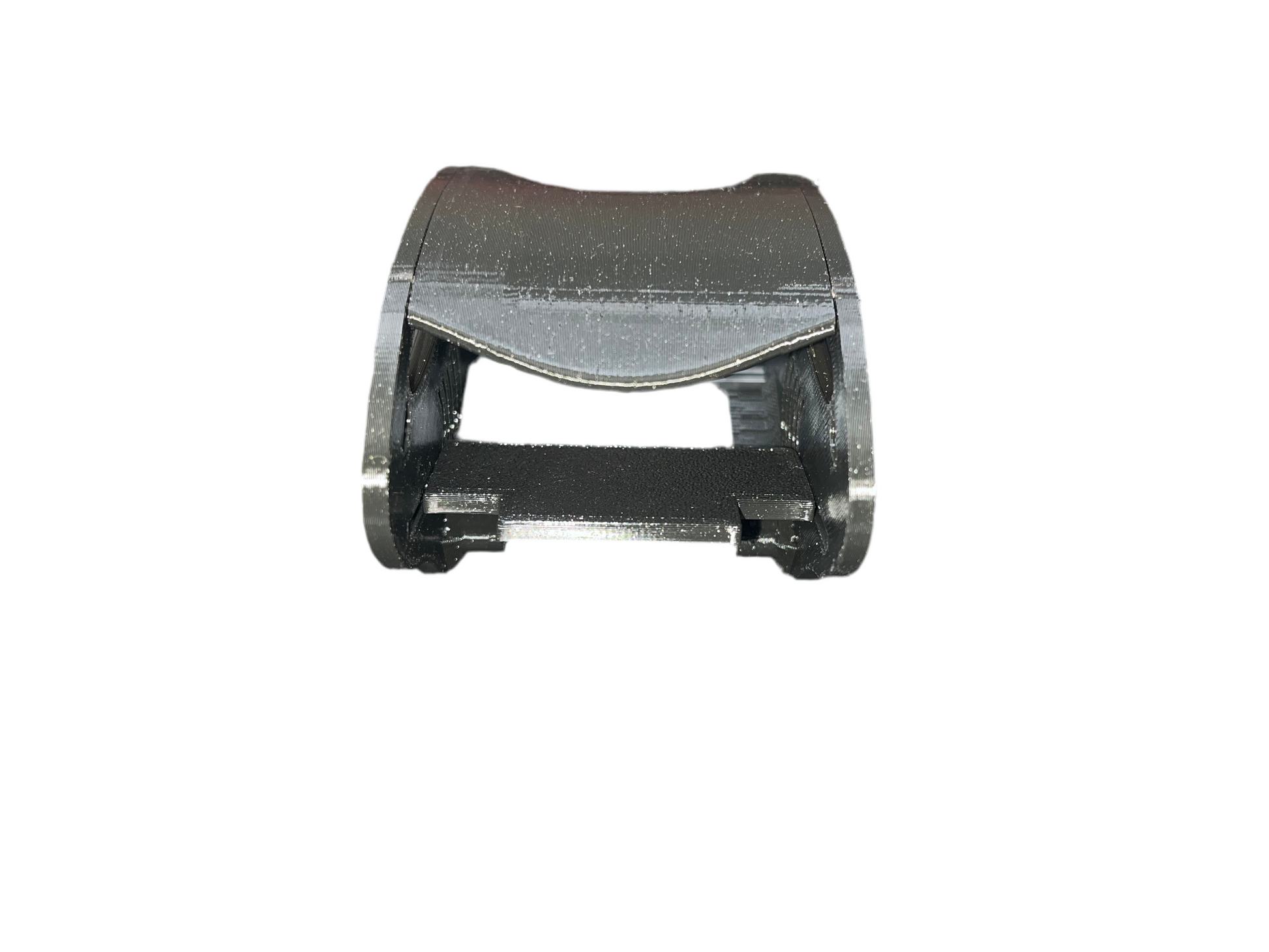

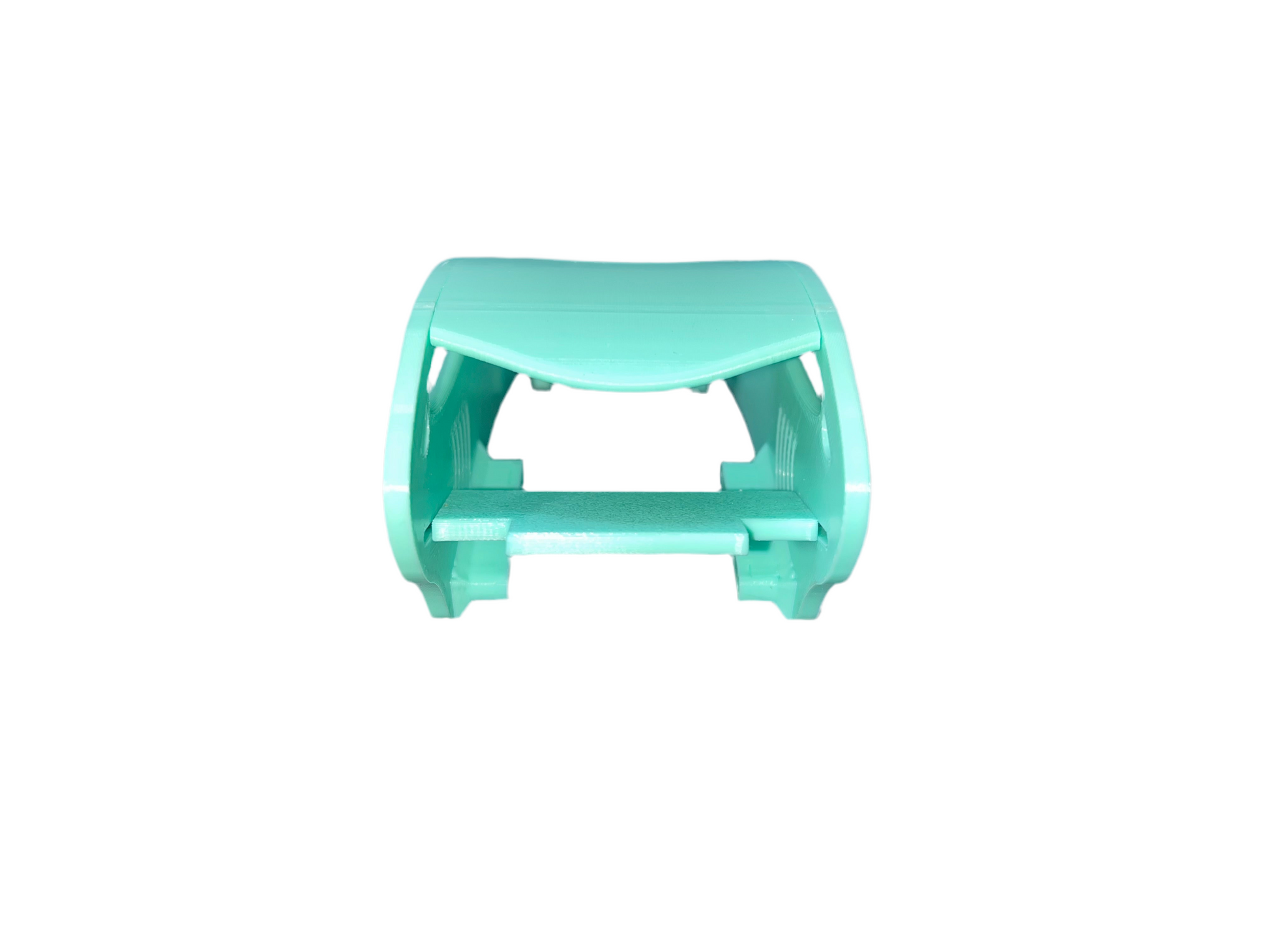

•Roof hinge and secure design! Just 2 bolts toward the rear acting as hinges and the forward most bolts thread directly into the roof while the bolt heads slide into oversized holes in the chassis.
•Electronics! 3 mounting locations: The front shock mount, and ether side of the motor/transmission assembly. (Depending on your choice of electronics)
•Compatible with all SCX24 link and drive shaft sizes. (NO SPECIAL LINKS REQUIRED)
•Suggested wheelbase links and drive shafts: “DEADBOLT”
•Carrier bearings and shaft included
All RCCC Angler 24 Chassis’s will be shipped PRE-ASSEMBLED.
•Package includes:
- 2 Chassis Half’s
- 1 Roof
- 1 Front Shock Mount
- 1 Rear Shock Mount
- 1 Carrier Bearing/Link Mount WITH bearings and shaft
- 6 Sliding Bolt Flanges
- 12 M2x10 Bolts
- 4 M1.4x6 Bolts

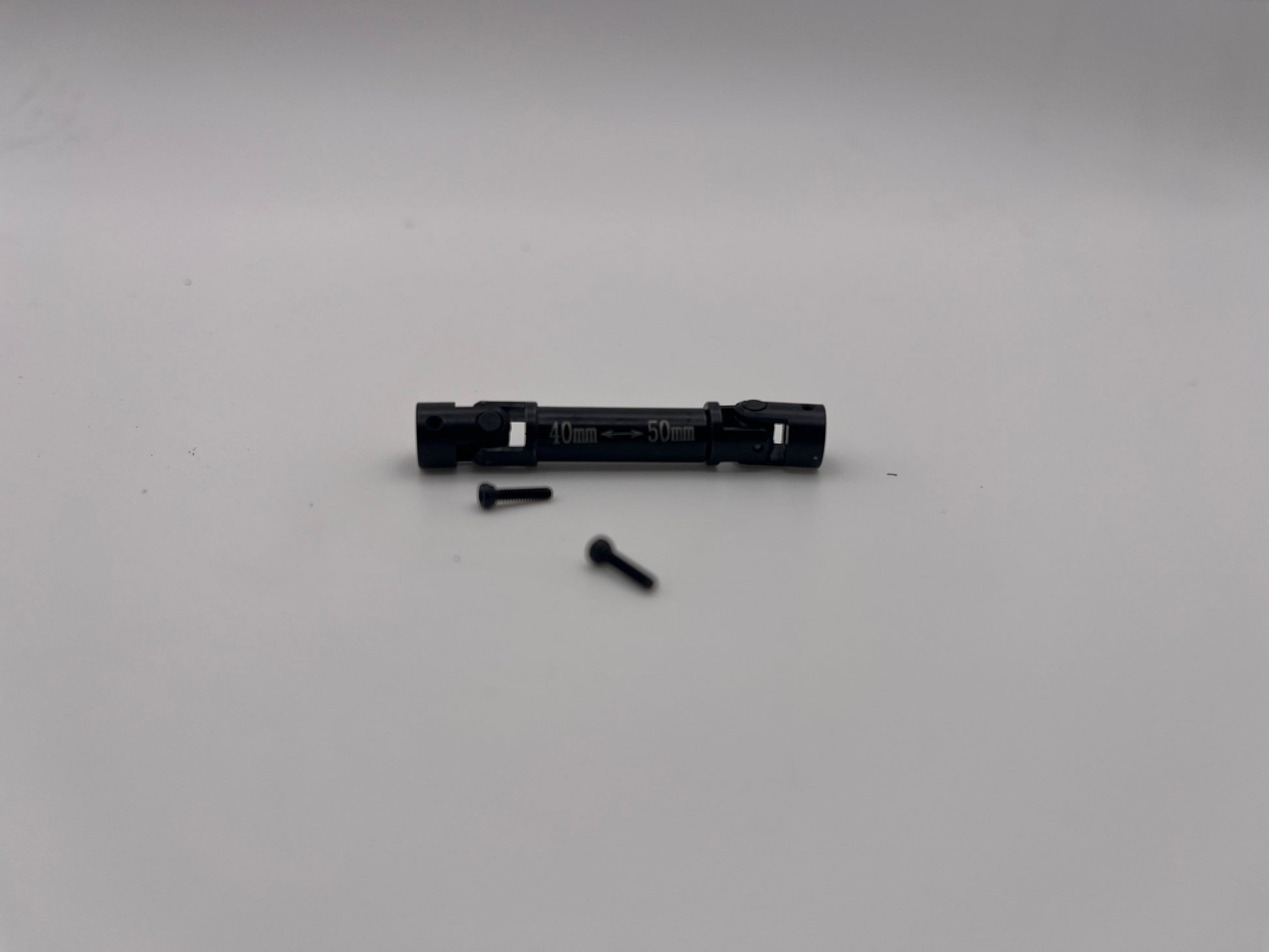

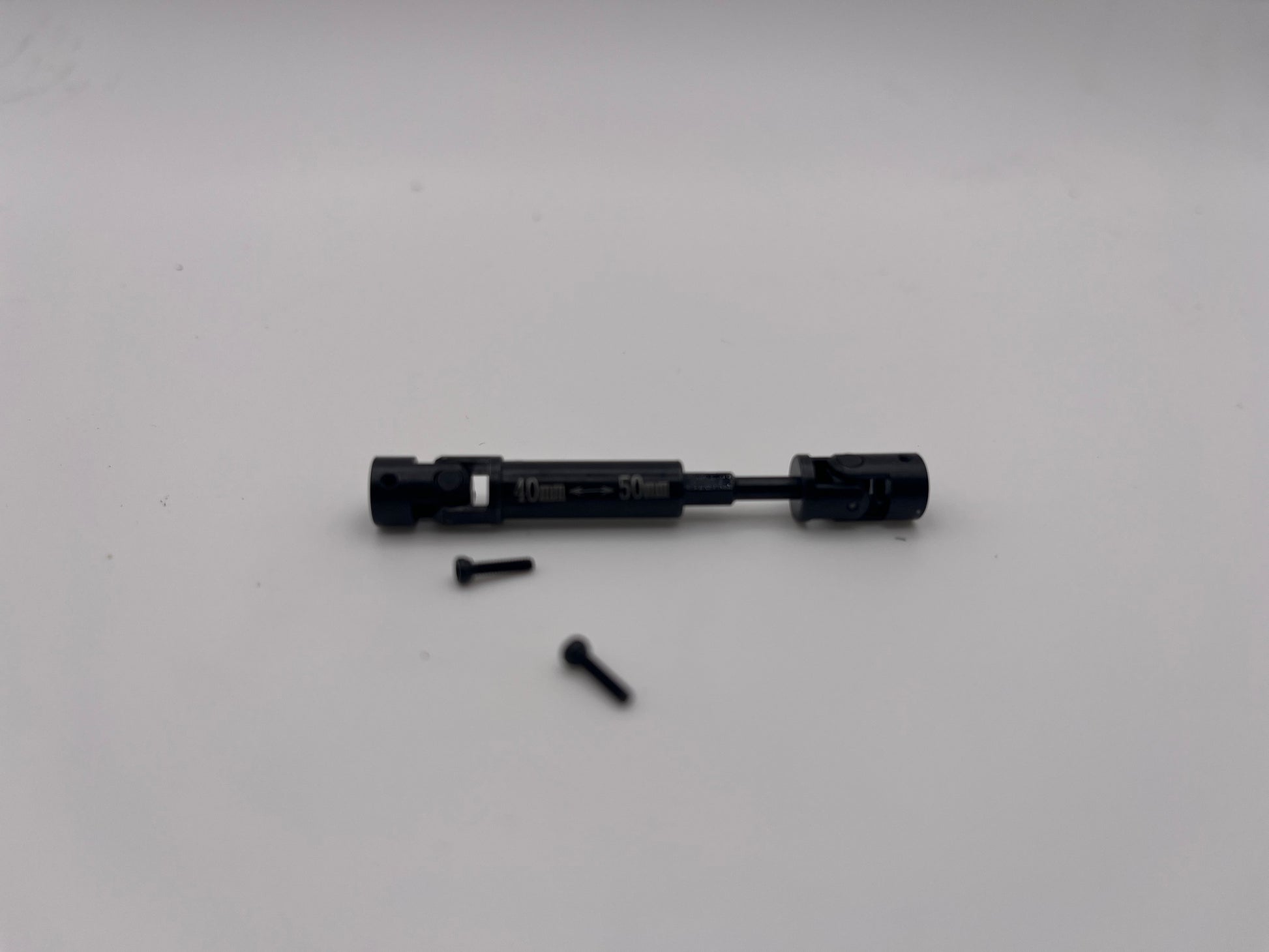

- 1 Center Driveshaft (40mm-50mm)
This chassis kit was designed to resemble and named after the Angler Fish.

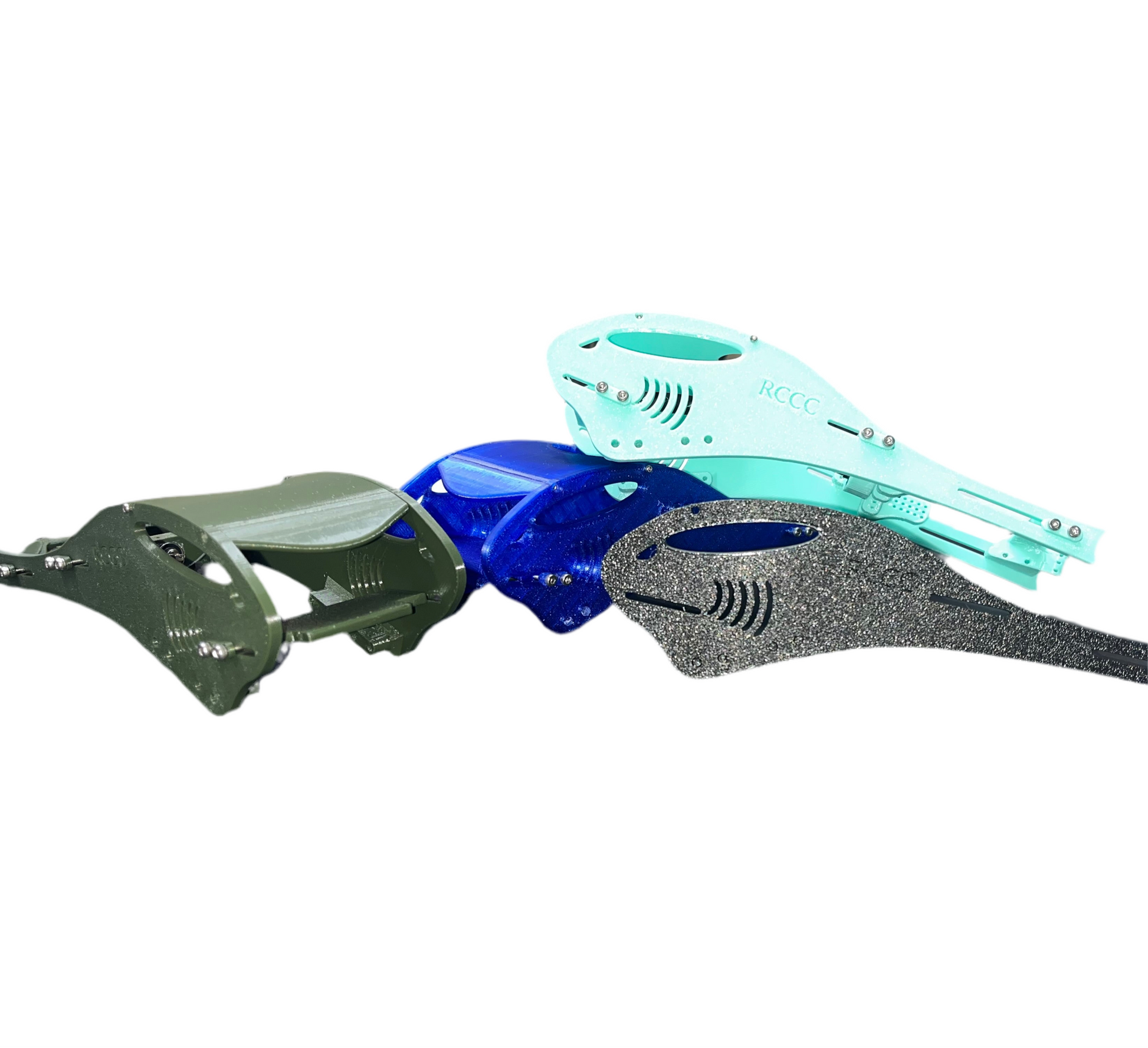

NOTE: Please allow 1-3 days of processing time as some chassis colors may need to be printed and assembled.
NOTE: “CHOKING HAZARD” This chassis assembly comes with small parts and is NOT for children 5 years old and under.
