PLEASE READ!👇👇👇👇

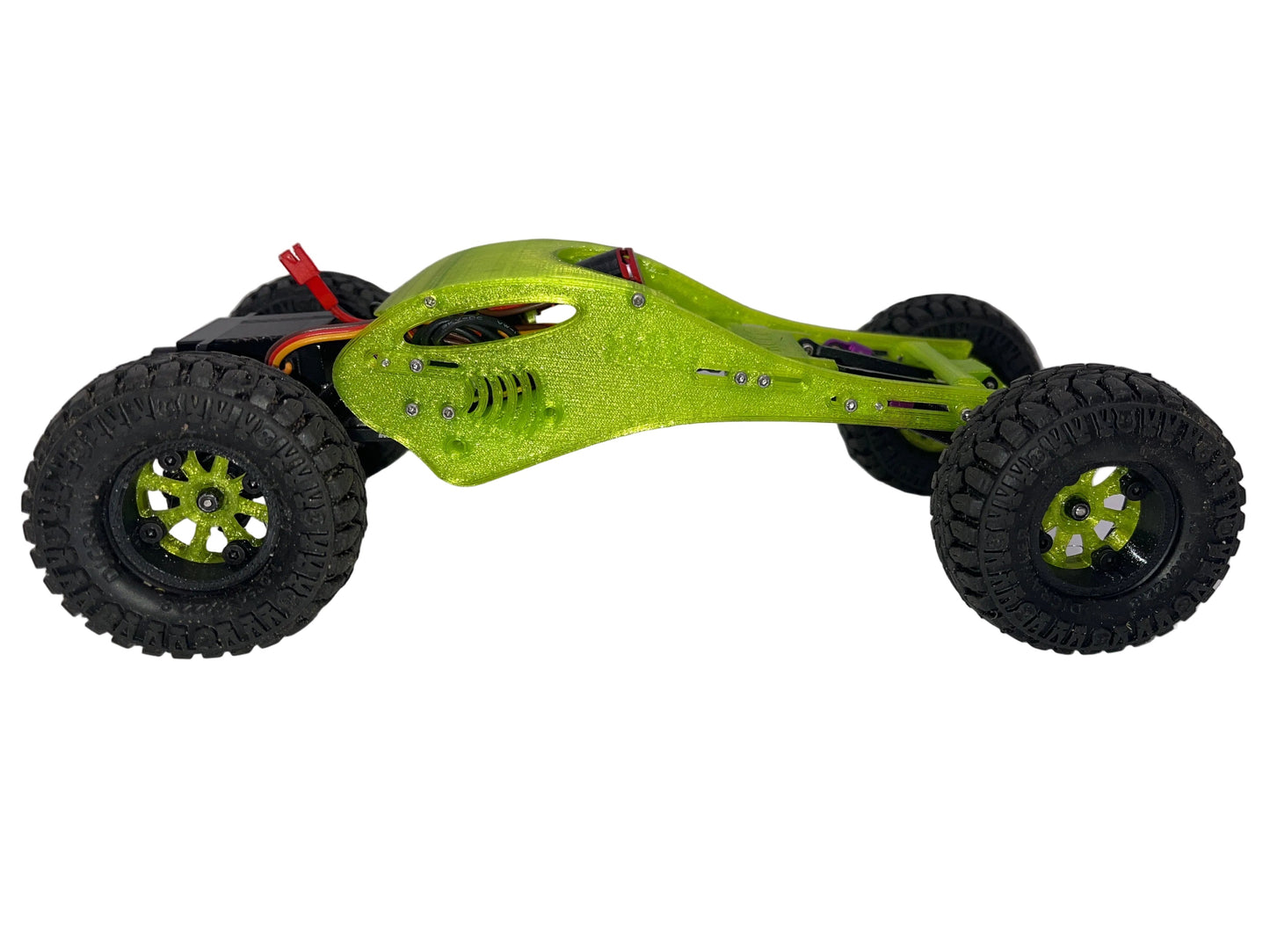

The RCCC Angler 32 for Ascent 32 chassis kit is an Ascent 32 base carrier bearing style platform.
•25° skid angle!Â
•RCCC REAR LINK MOUNT INCLUDED!
•Designed for rear facing motor configuration.Â

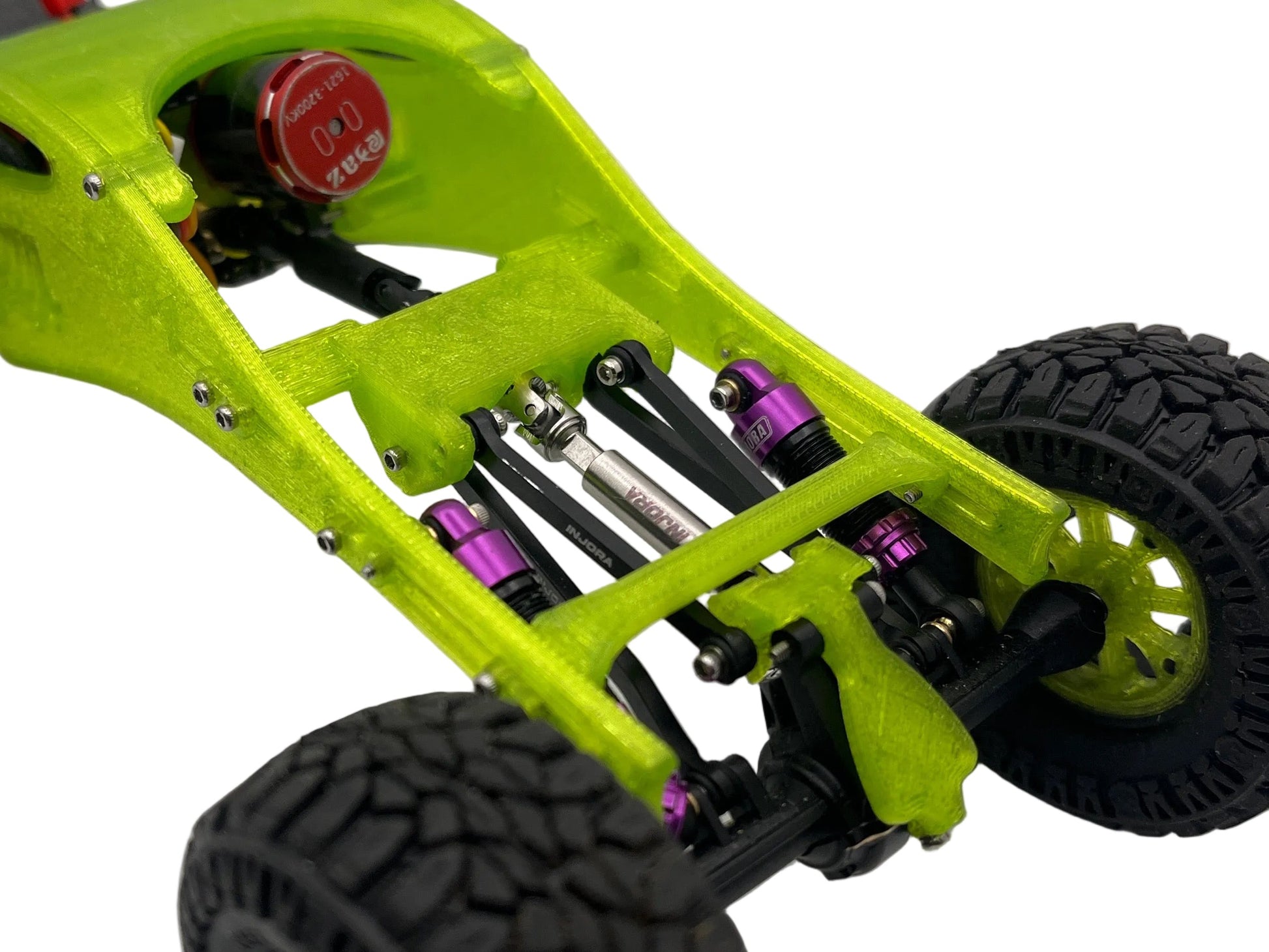

•ADJUSTABLE Front and Rear Shock Mounts! This allows for fine tuning ride height and shock position by sliding the mounts forward and back. The shocks mount on the inside of the chassis providing a clean appearance.Â
• ADJUSTABLE Carrier Bearing/Rear Link Mount! This feature allows for fine tuning your rig’s wheelbase.

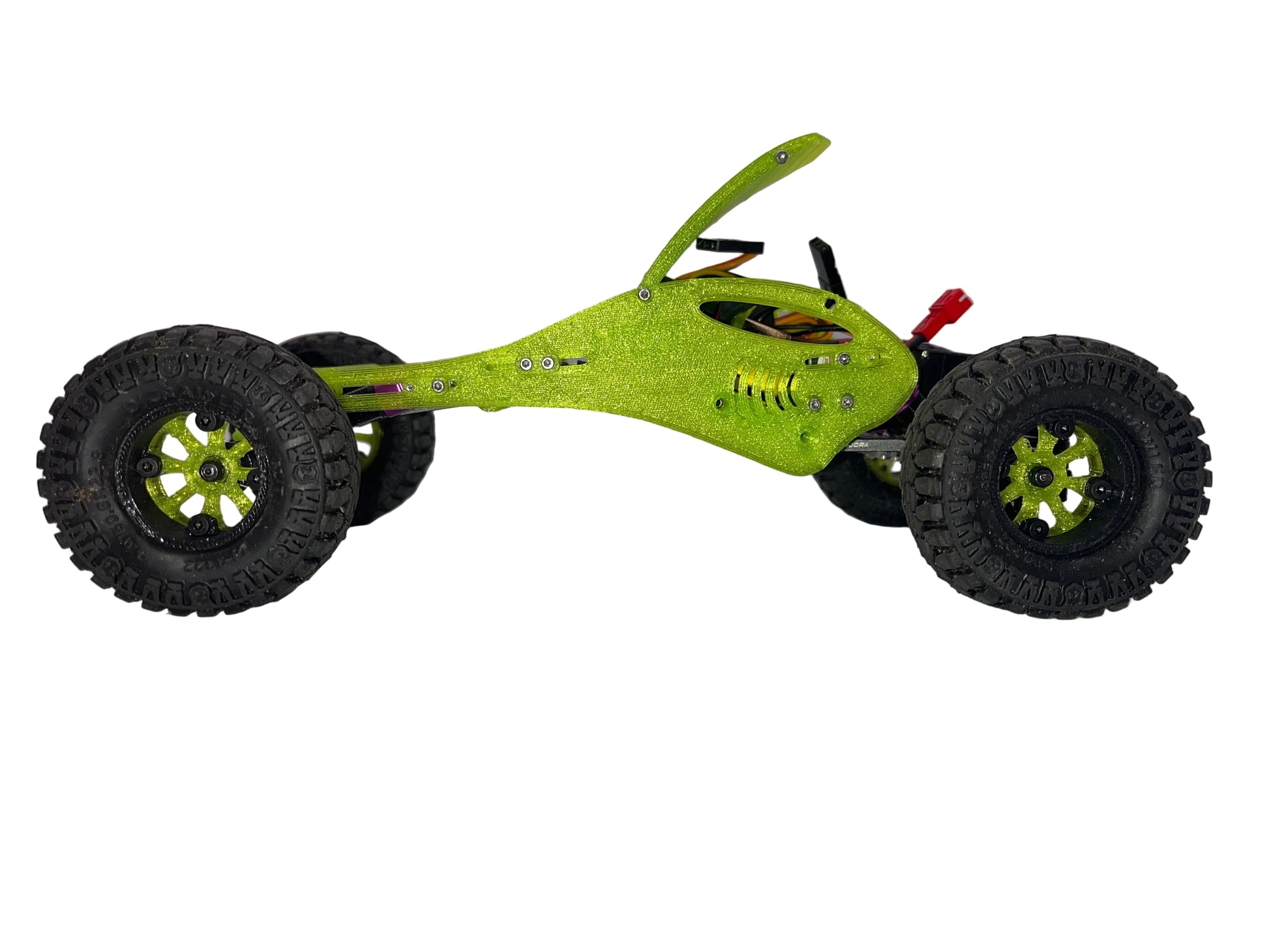

•Roof hinge and secure design! Just 2 bolts toward the rear acting as hinges and the forward most bolts thread directly into the roof while the bolt heads slide into oversized holes in the chassis.Â

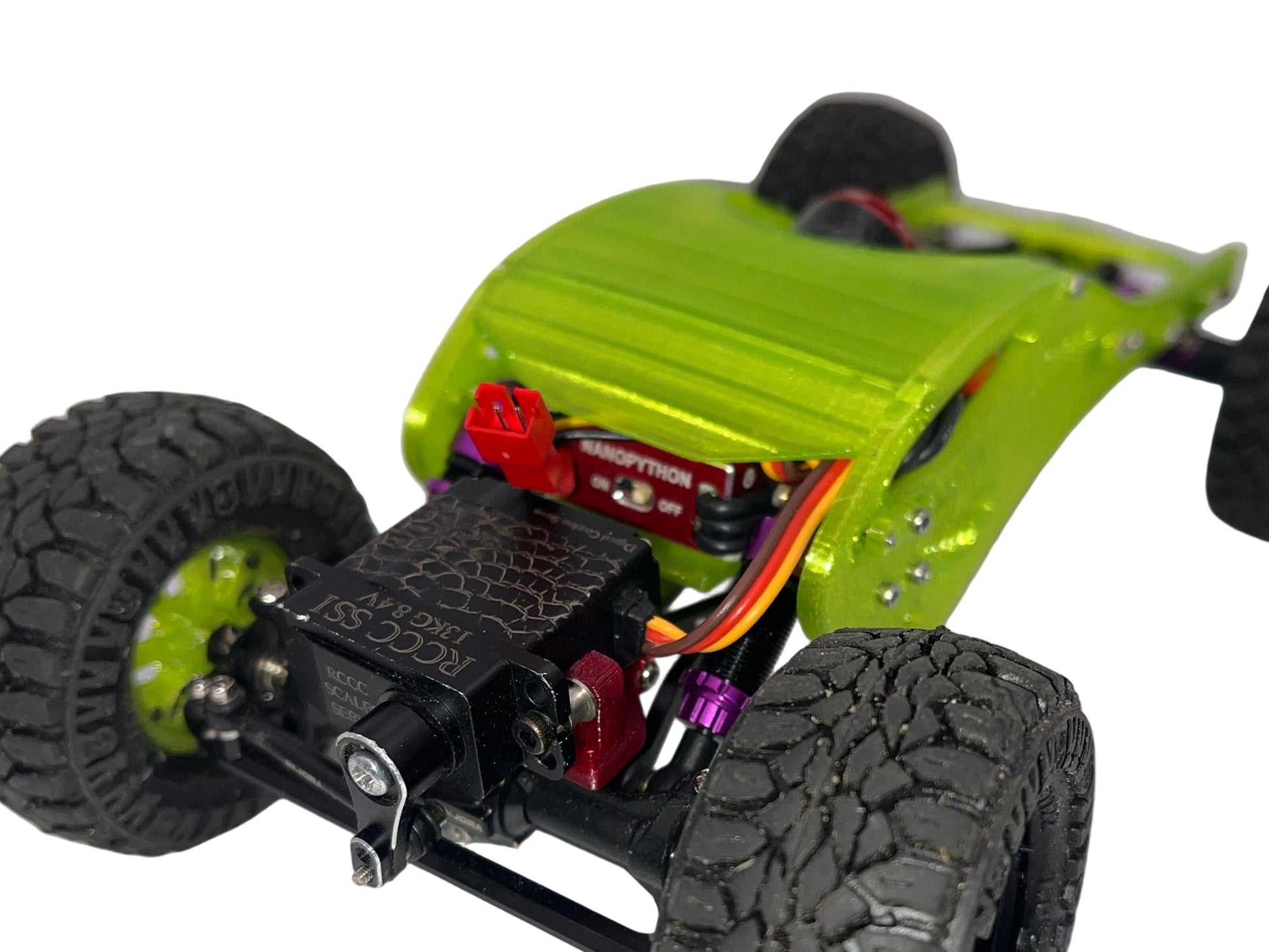

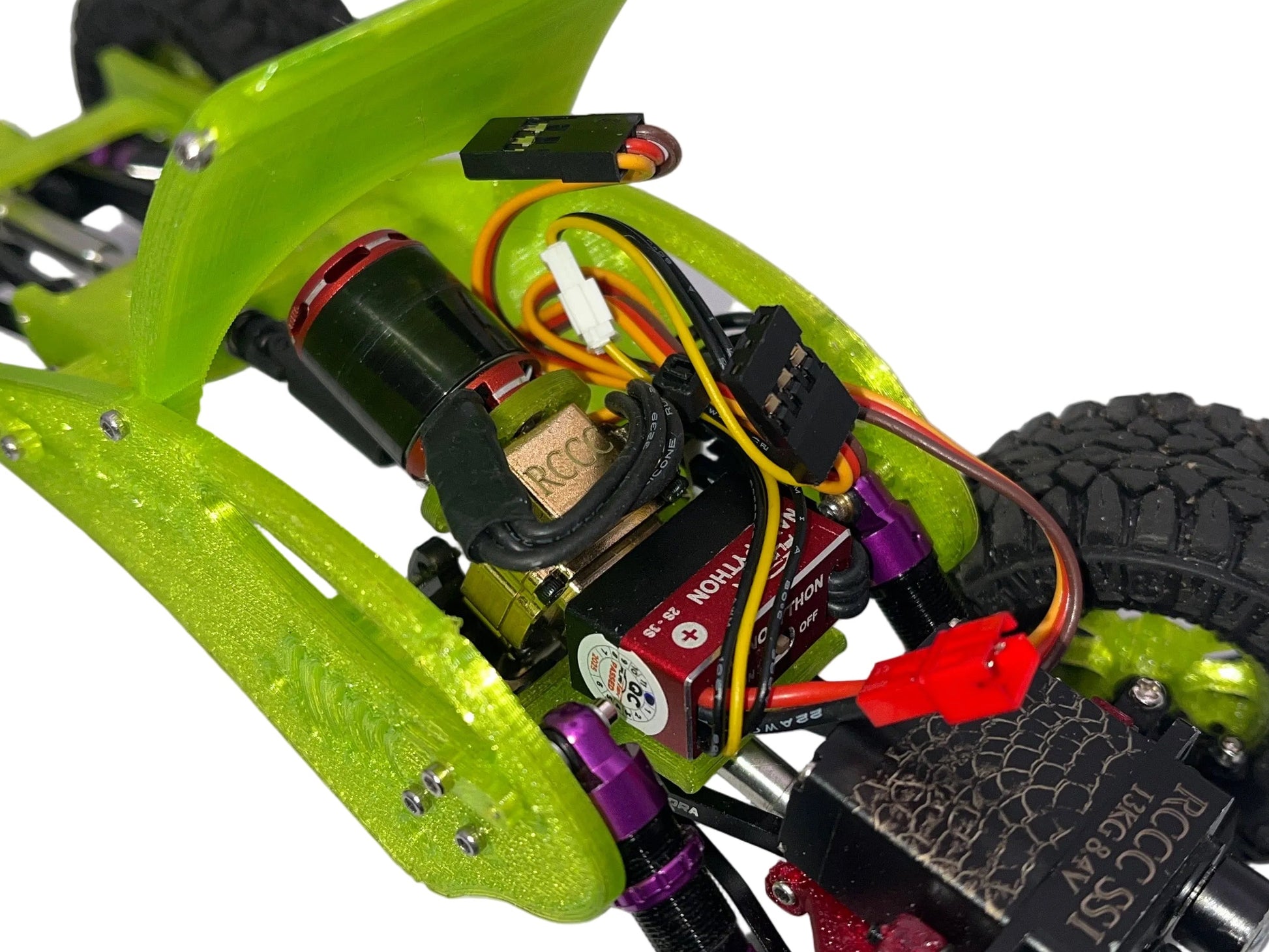

•Electronics! 3 mounting locations: The front plate, and ether side of the motor/transmission assembly. (Depending on your choice of electronics)
•Recommendations for electronics: Furitek Nanopython ESC, Furitek Nano Komodo motor, 100-250mah 2s batteries(the smallest you can find), Furitek Gripor transmitter w/receiver, Â
•Compatible with most Ascent 32 stock components and most aftermarket Ascent 32. (NO SPECIAL LINKS REQUIRED)
NOT COMPATIBLE:Â
• Stock Ascent 32 shocks
Recommend Shocks:Â
• SCX24 35-40mmÂ
Other recommended components:
•RCCC 1.0 8 spoke wheels for A32
•50-55mm tires
•RCCC Big servo mount
•Metal driveshaftsÂ
•Any micro servo
NOT INCLUDED: Center driveshaft(use stock front driveshaftÂ
•Carrier bearing shaft and bearings are included!

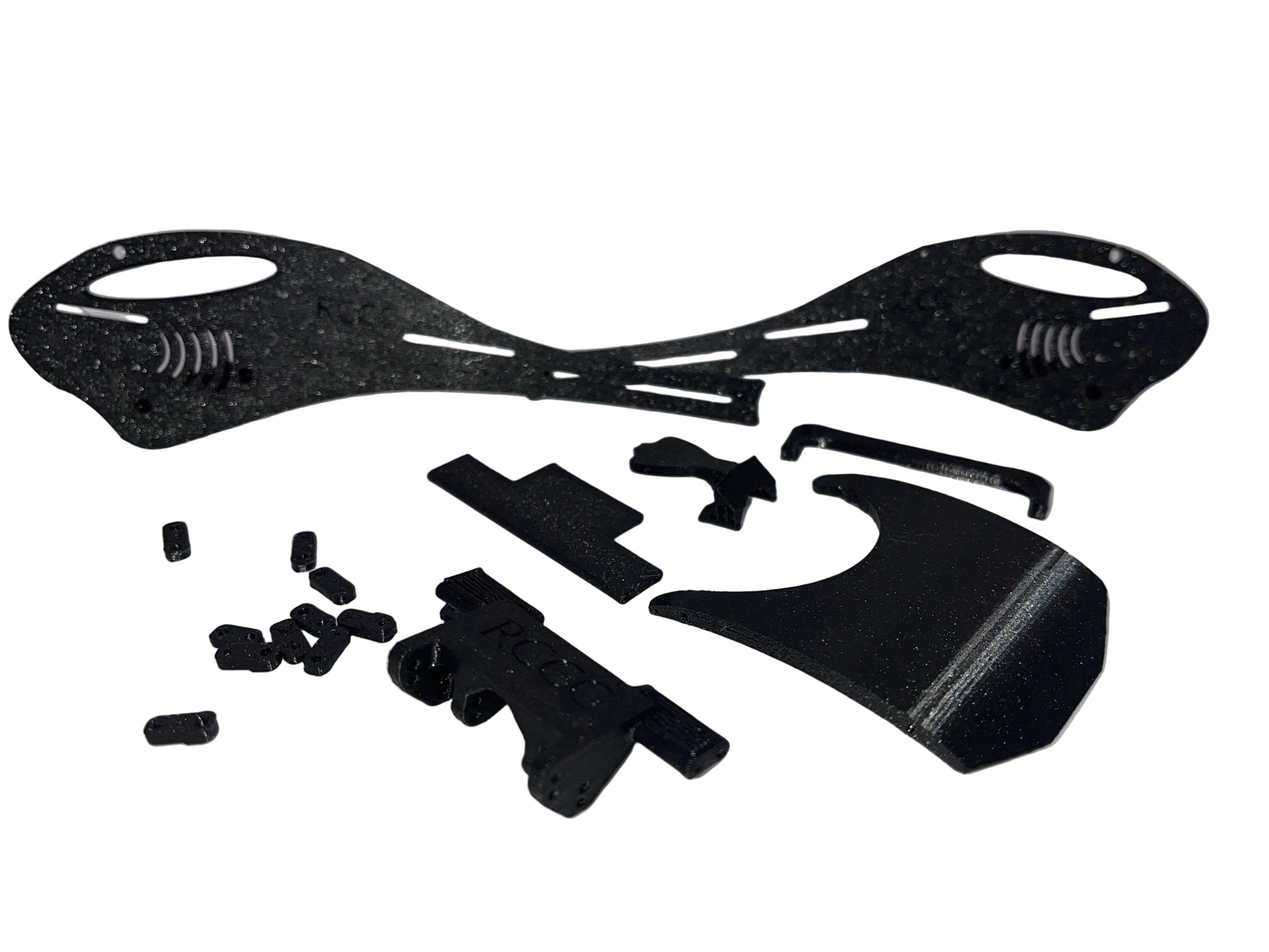

•Package includes:
- 2 Chassis Half’sÂ
- 1 Roof
- 1 Front electronics plate
- 1 Rear chassis brace with bolt flanges
- 4 shock mounts with bolt flanges
- 1 Carrier Bearing/Link Mount with 2 bolt flanges but WITH BEARINGS AND SHAFT!Â
- 20 M1.4x6mm bolts
This chassis kit was designed to resemble and named after the Angler Fish.Â
NOTE: Please allow 1-3 days of processing time as some chassis colors may need to be printed.Â
NOTE: “CHOKING HAZARD” This chassis assembly comes with small parts and is NOT for children 5 years old and under.
