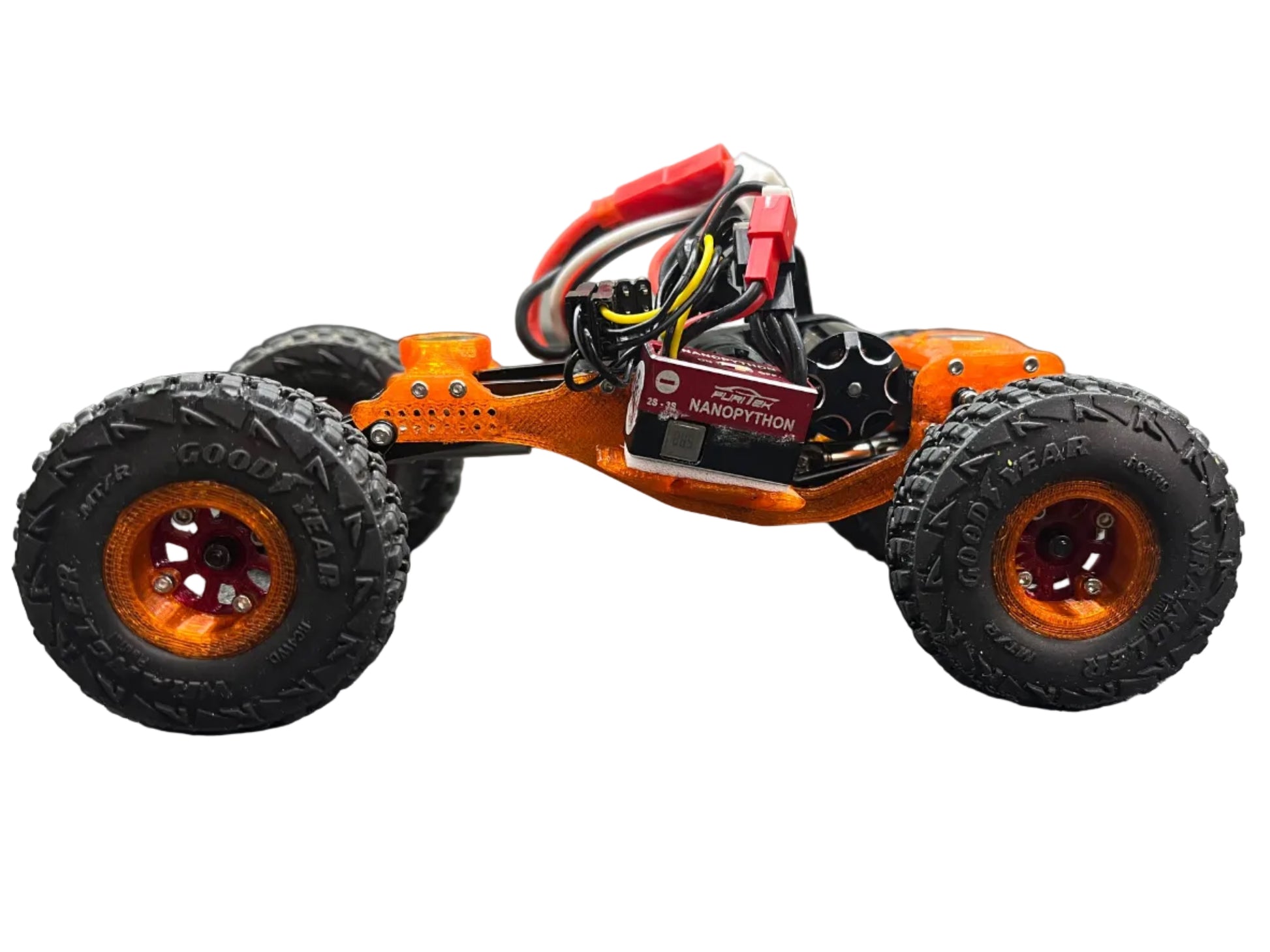

Introducing the RCCC Phoenix chassis for Scx30! 🐦🔥🔥

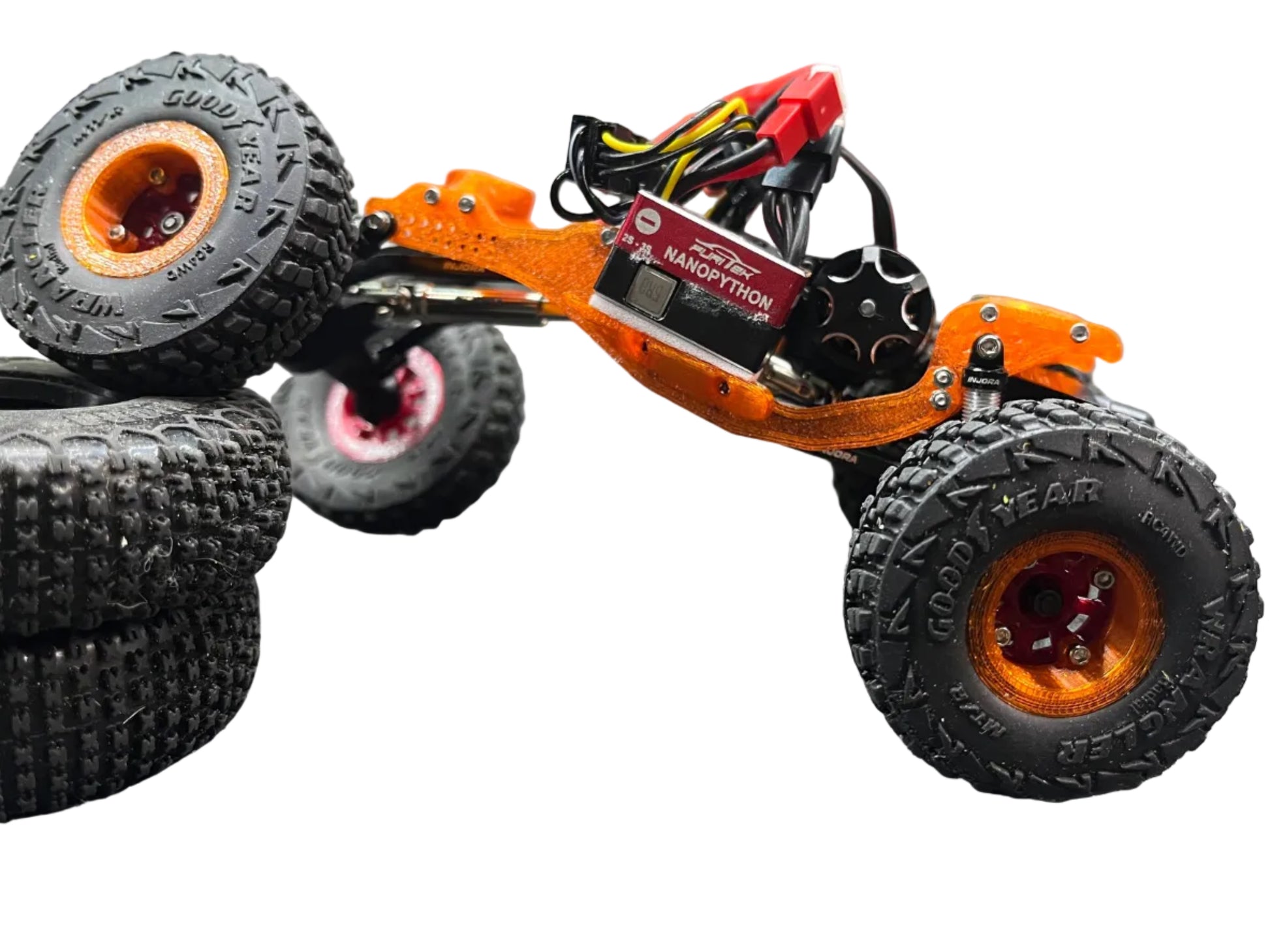

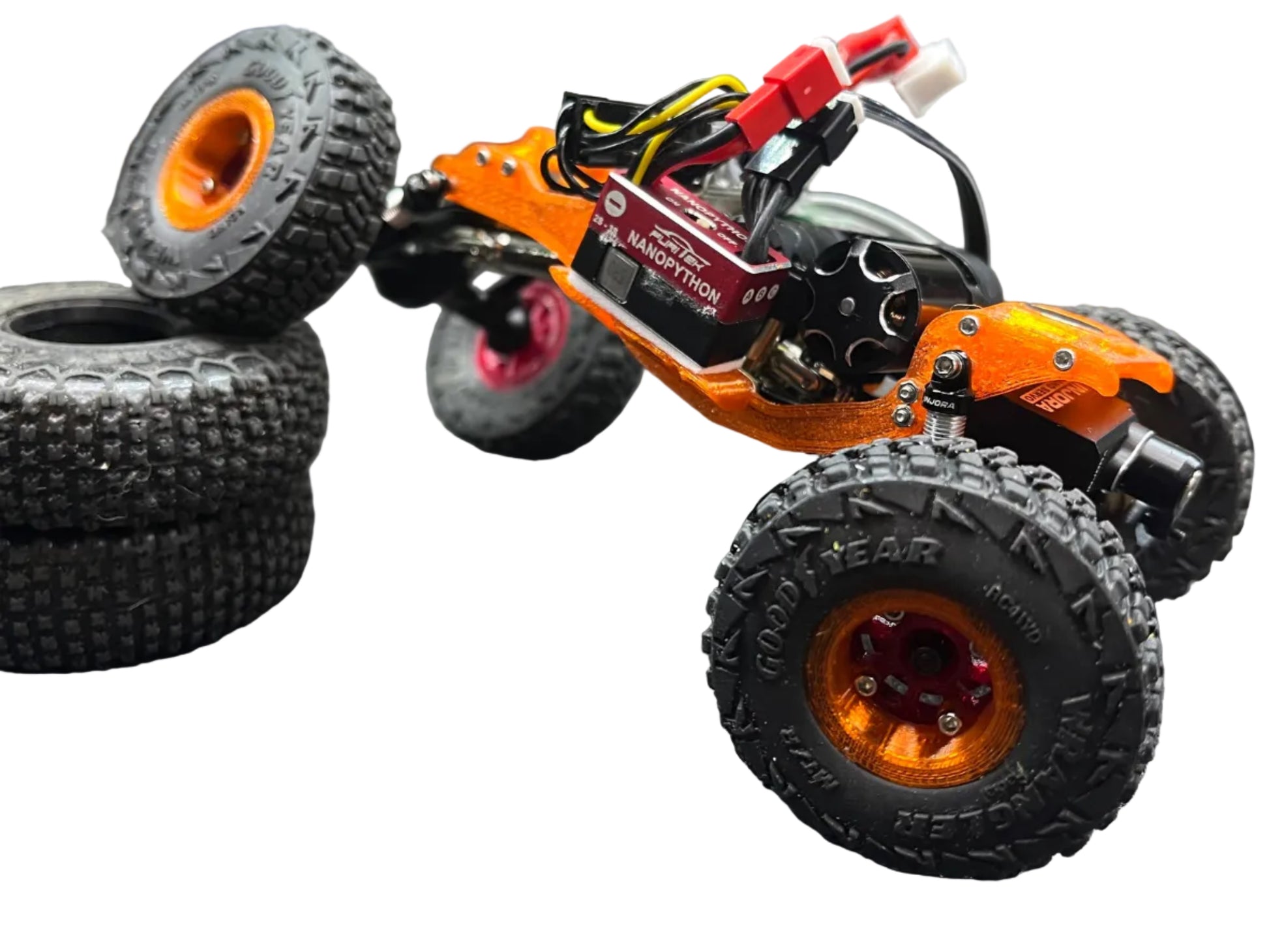

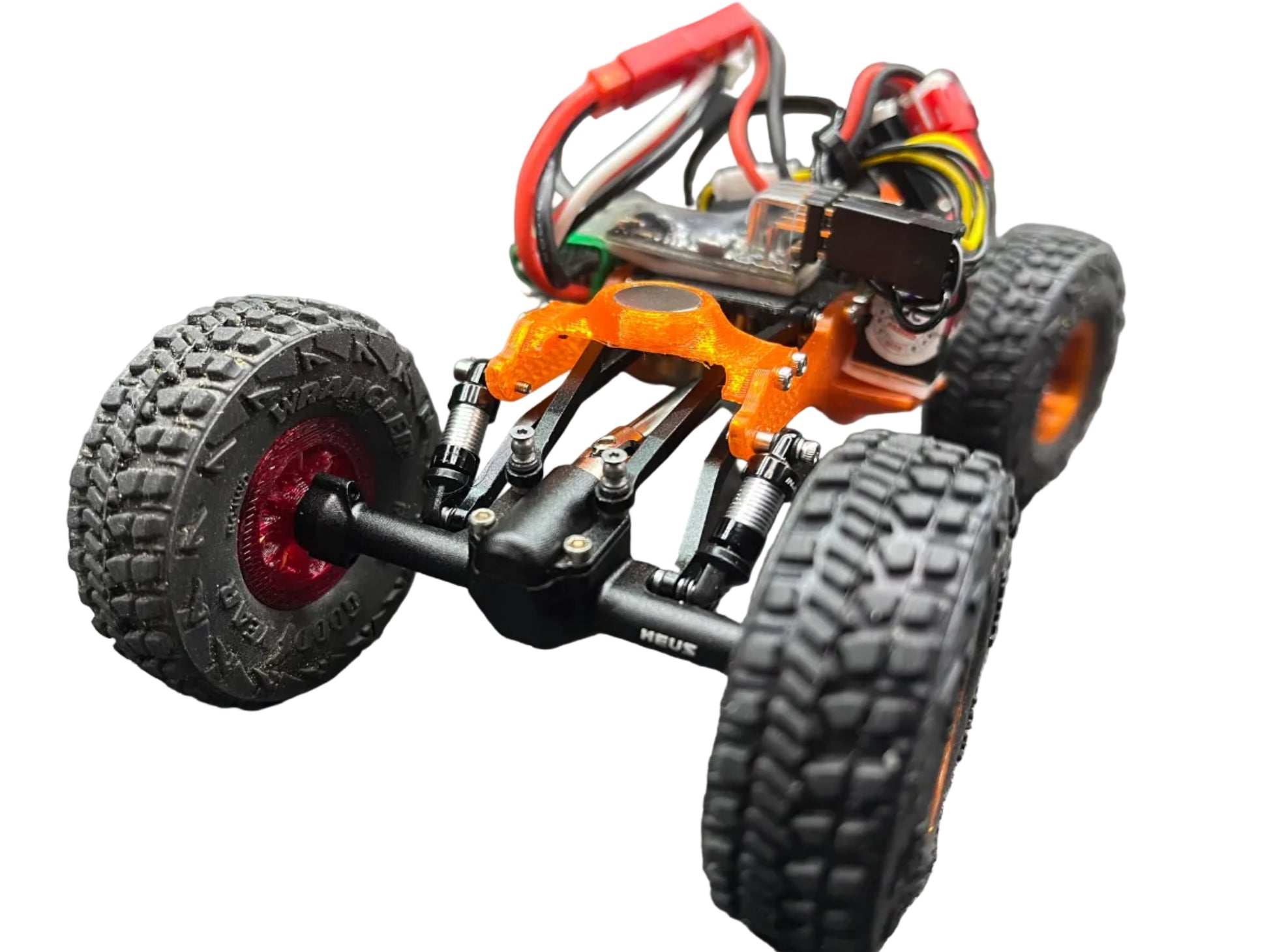

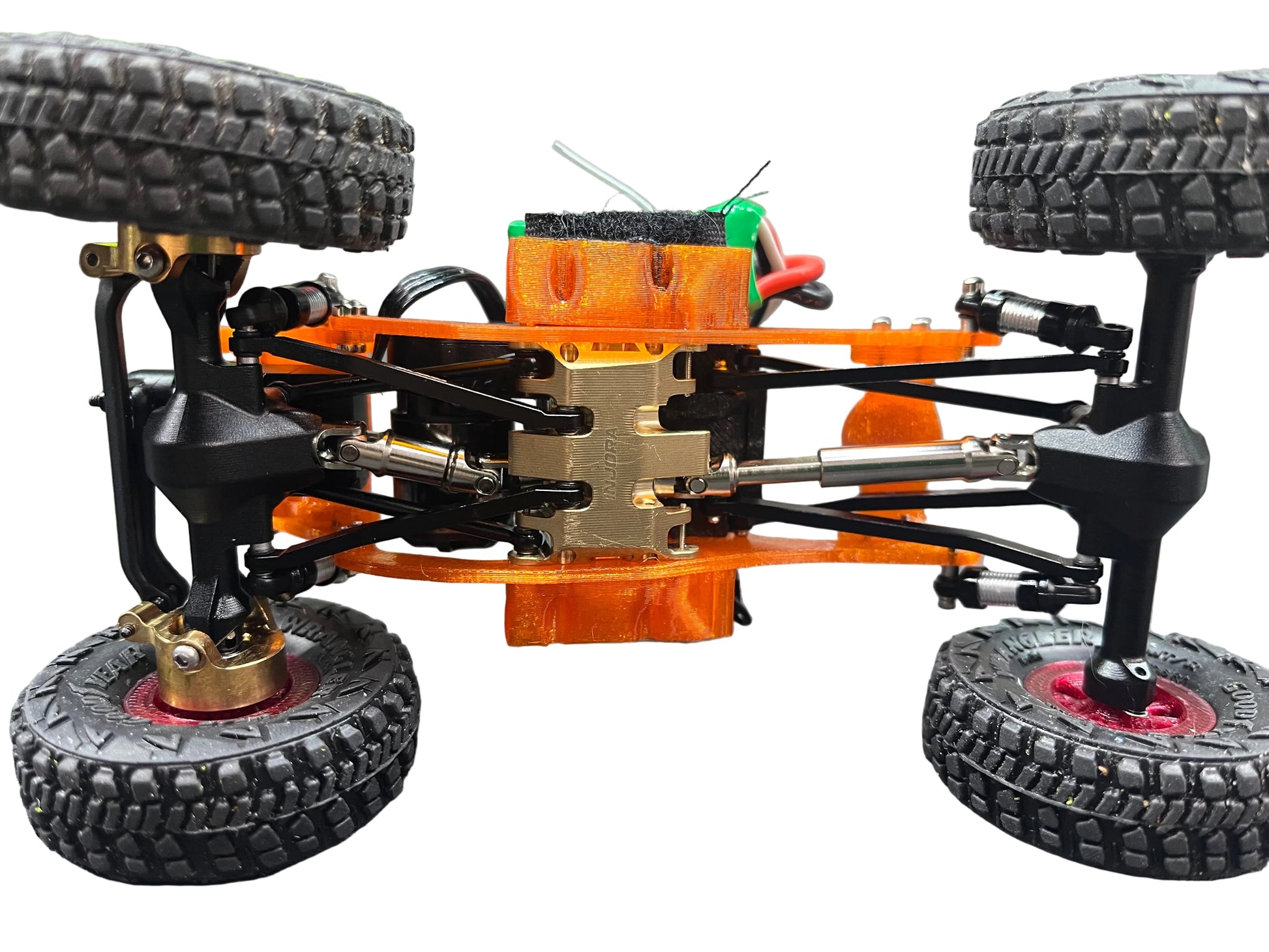

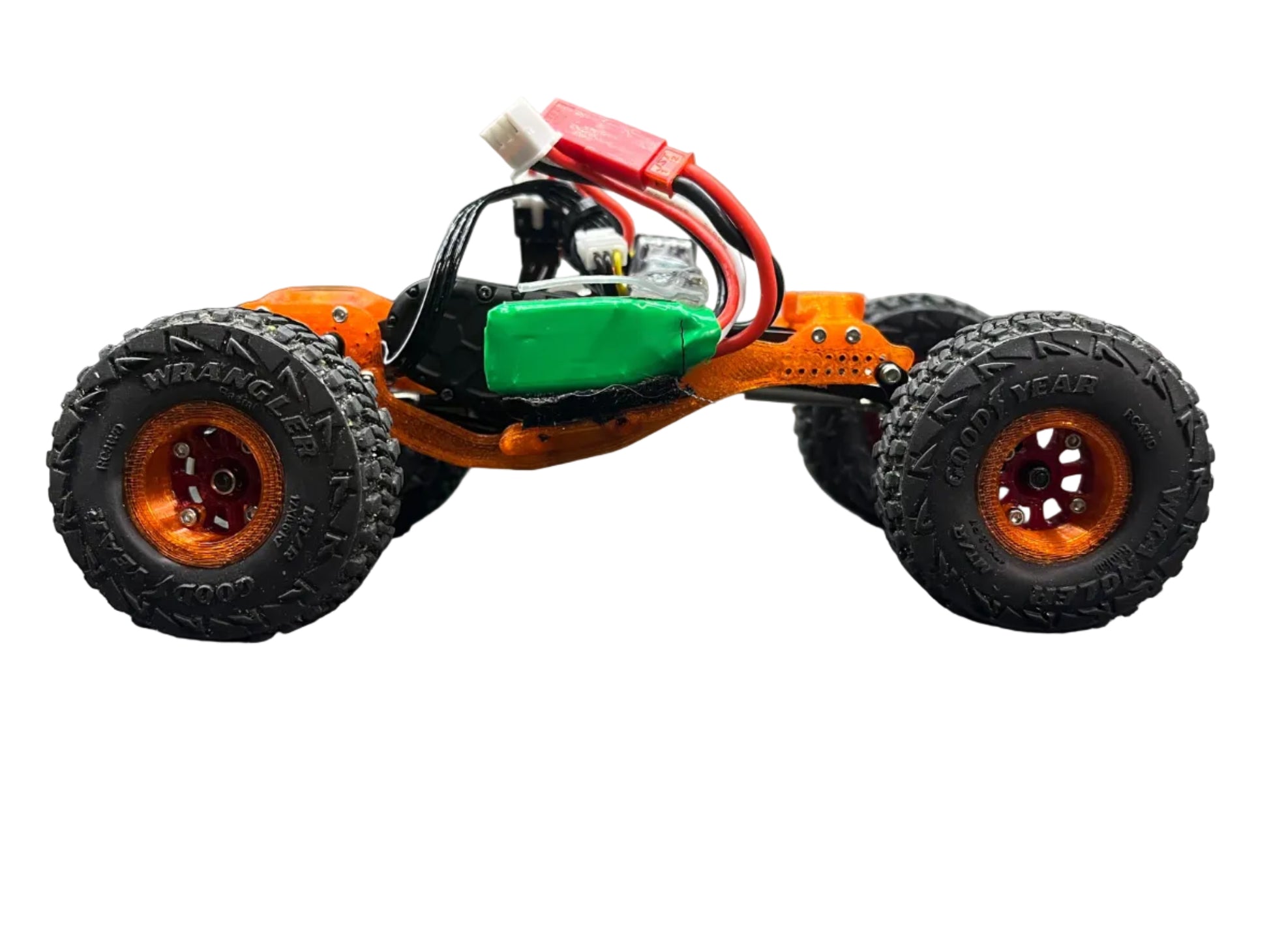

A low center of gravity design with HUGE rear clearance! 3D printed from PRO-PTCG featuring a 13° skid angle, this chassis was built for competition. The rear links mount up high to a separate mount above the driveshaft, allowing for increased break over clearance as well as extended wheelbase. (Rear link mount also acts as an electronics mount). 2 side electronics plates are added for use of aftermarket electronics.
The rear links can be mounted to the skid plate normally however, this defeats the purpose of this chassis.
The wheelbase has been extended 9mm, from 99mm to 108mm. Stock Jeep and Bronco body mounting is currently unavailable. BUT WILL BE SOON! (modifications to the stock Jeep, bronco and C10 Will be required)

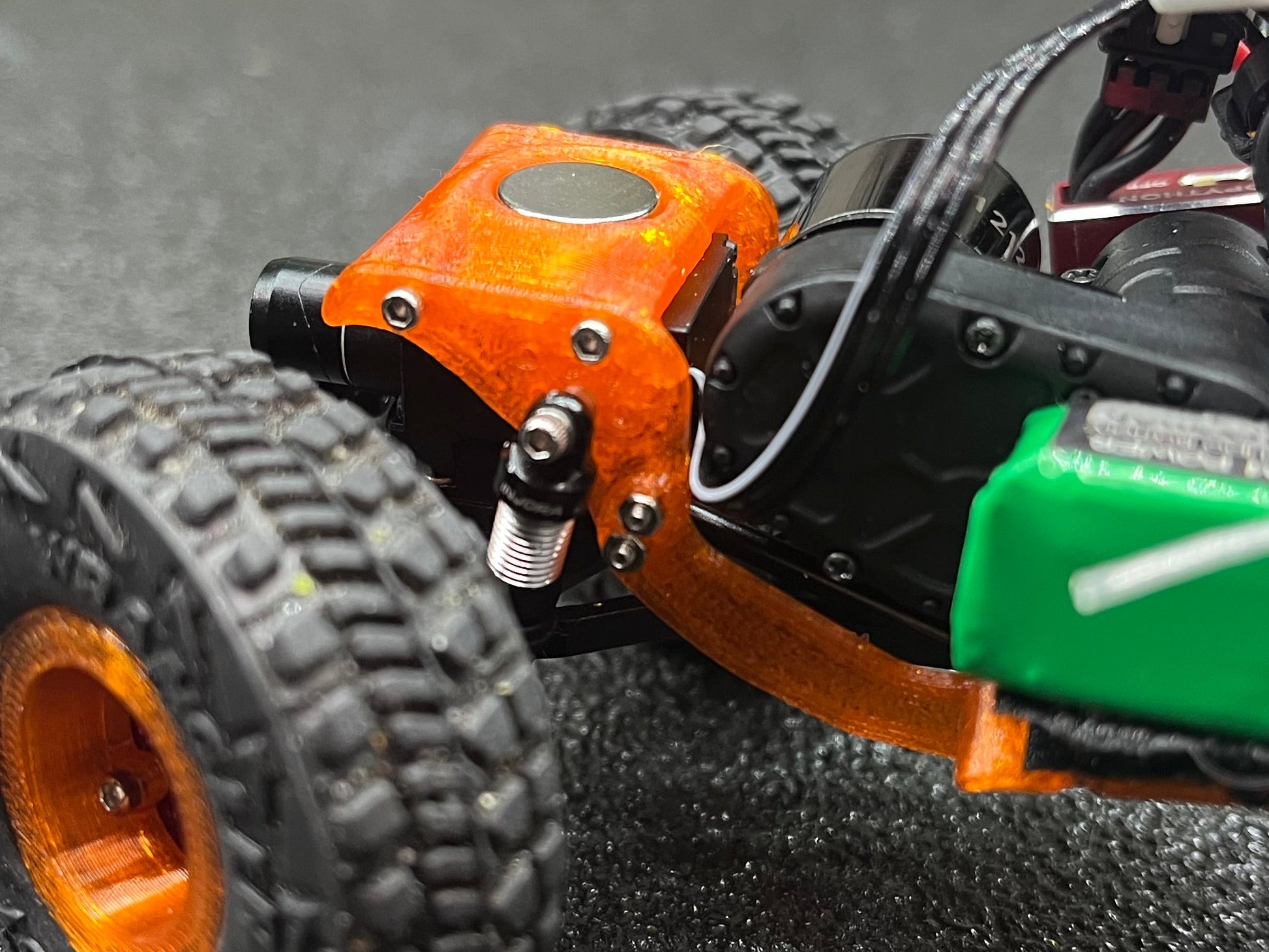

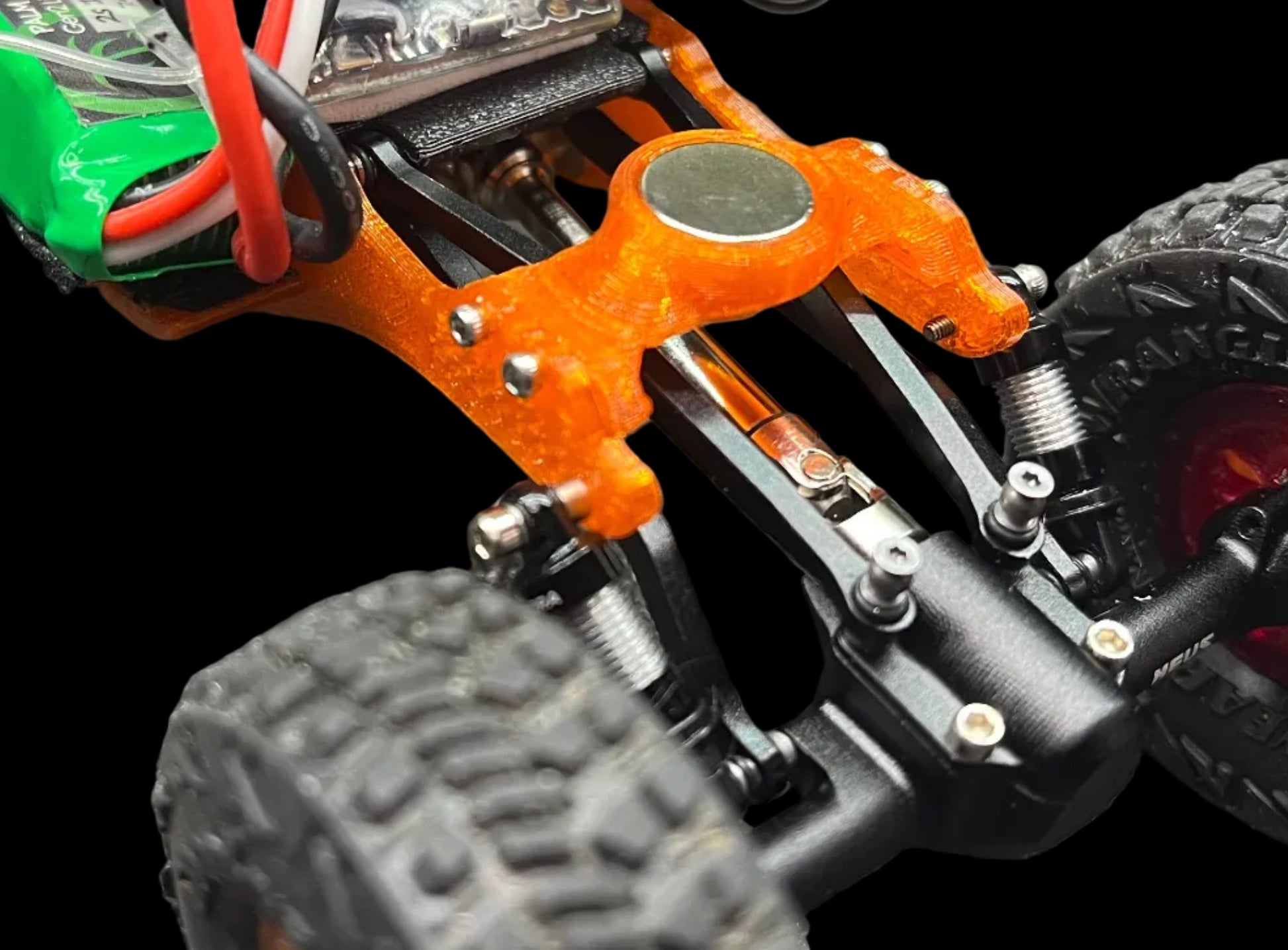

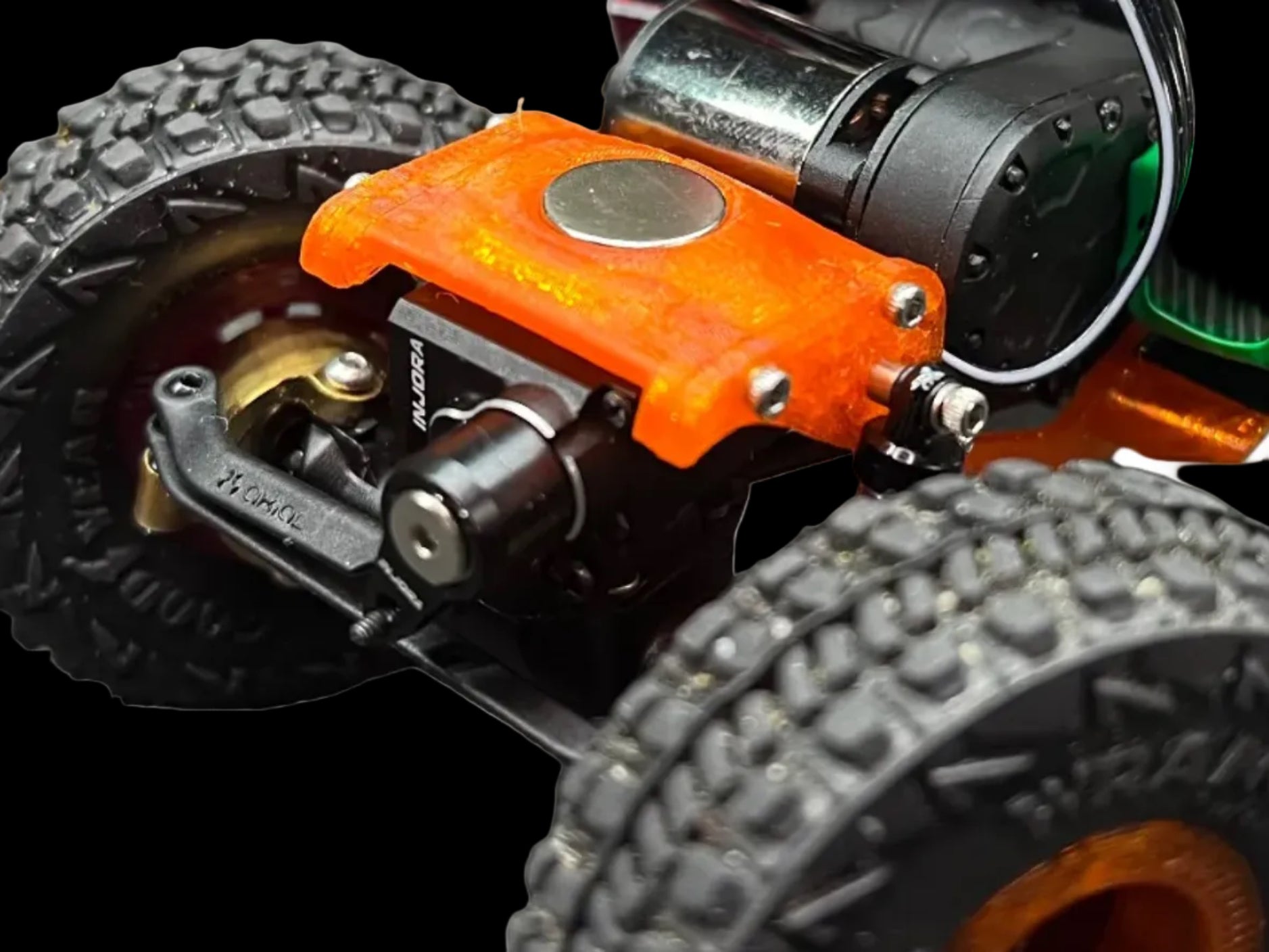

Front and rear magnet mounts have been designed to accommodate most aftermarket (truck) style bodies or whatever else you come up with😏.
How you decide to place or set the magnets on the body you are using is up to you. (Recommendation: Hot glue gun)
The Phoenix chassis is a 2 piece design to achieve the correct front shock vertical position reducing any possible binding. The rear shocks mount at a wider vertical angle, HOWEVER☝️, 2mm shock spacers can be installed on the lower shock position to reduce the wider angle.
Compatible with most aftermarket components as well as stock components. Some modifications may be required for fitment of some components, such as the stock ESC/receiver protruding plastic peace.

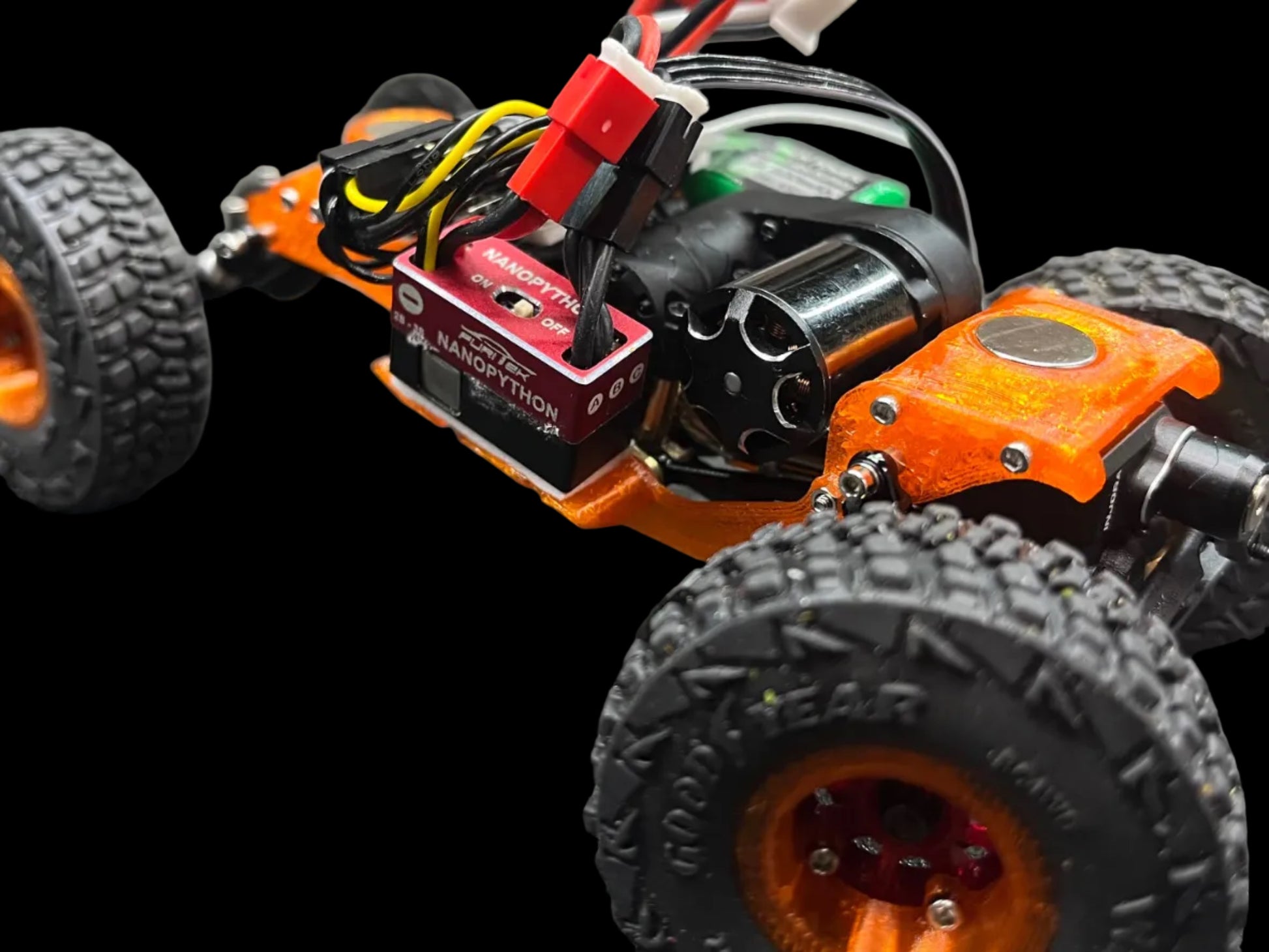

AftermarketElectronics recommendations: Furitek Nanopython, the smallest receiver you can find…
Package list:
2 main chassis rails
2 front chassis (beaks)
1 front magnet mount
1 rear magnet mount
1 rear link/Electro. Mount
2 left/right electronics mounts
16 M1.4x6mm bolts
4 M1.4 nuts
4 10mmx3mm magnets
4 M1x8mm bolts
4 M1x10mm bolts
WARNING: This item comes with very small components, which are considered to be a choking hazard to children under five years old. Please keep away from children.
Warranty: All RCCC 3-D printed products come with a one year warranty free of charge at time of purchase. Any 3-D printed component that breaks (even if you dropped it on accident) Send an email with a picture of the broken component with order number and we will ship you a replacement.
