RCCC PHANTASMA ESC

The RCCC PHANTASMA ESC is a brushless electronic speed controller running ESC32 firmware. It is compatible with sensorless brushless motors and can be programmed using ESC32 software to adjust operating parameters such as throttle response, braking, timing, and BEC voltage.

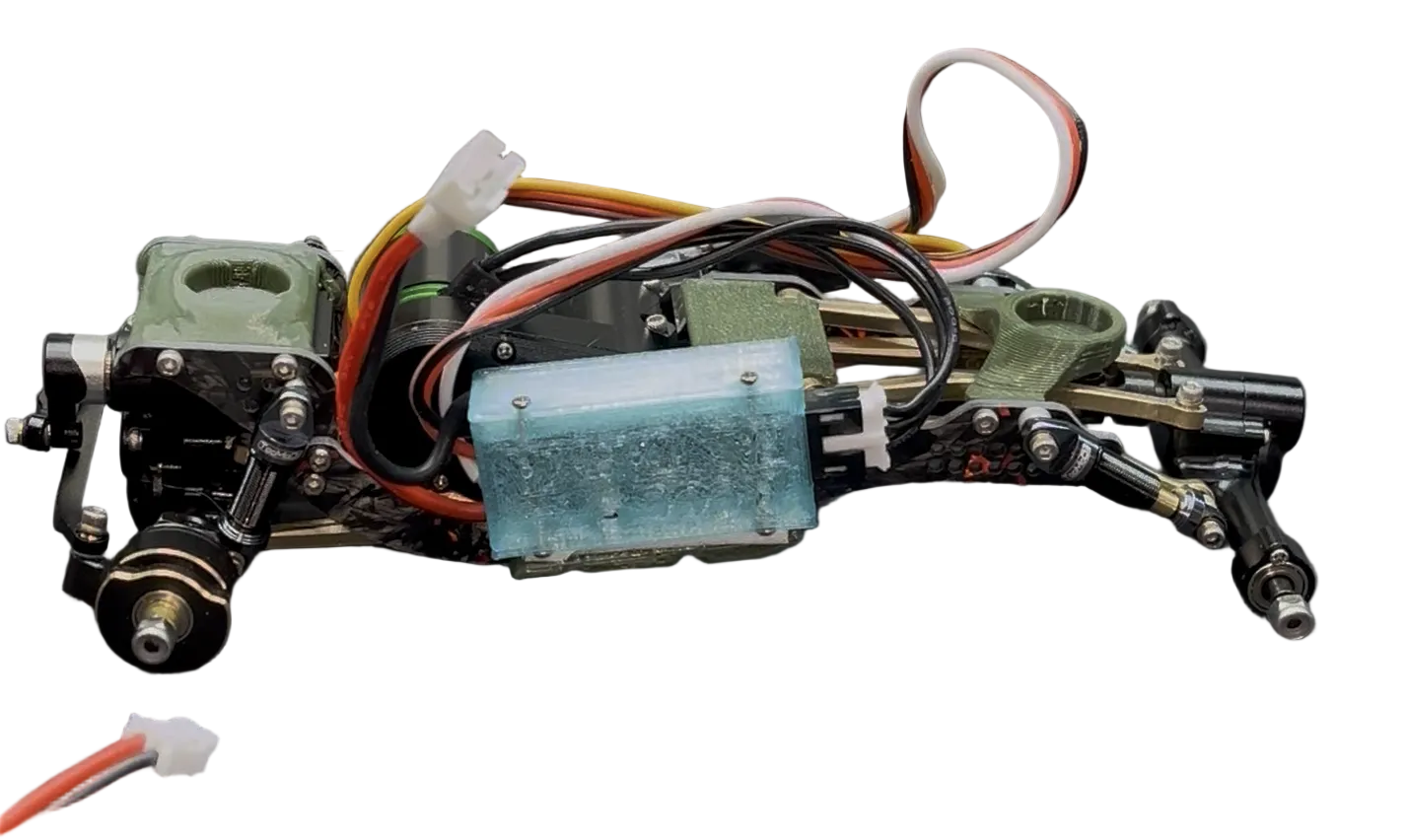

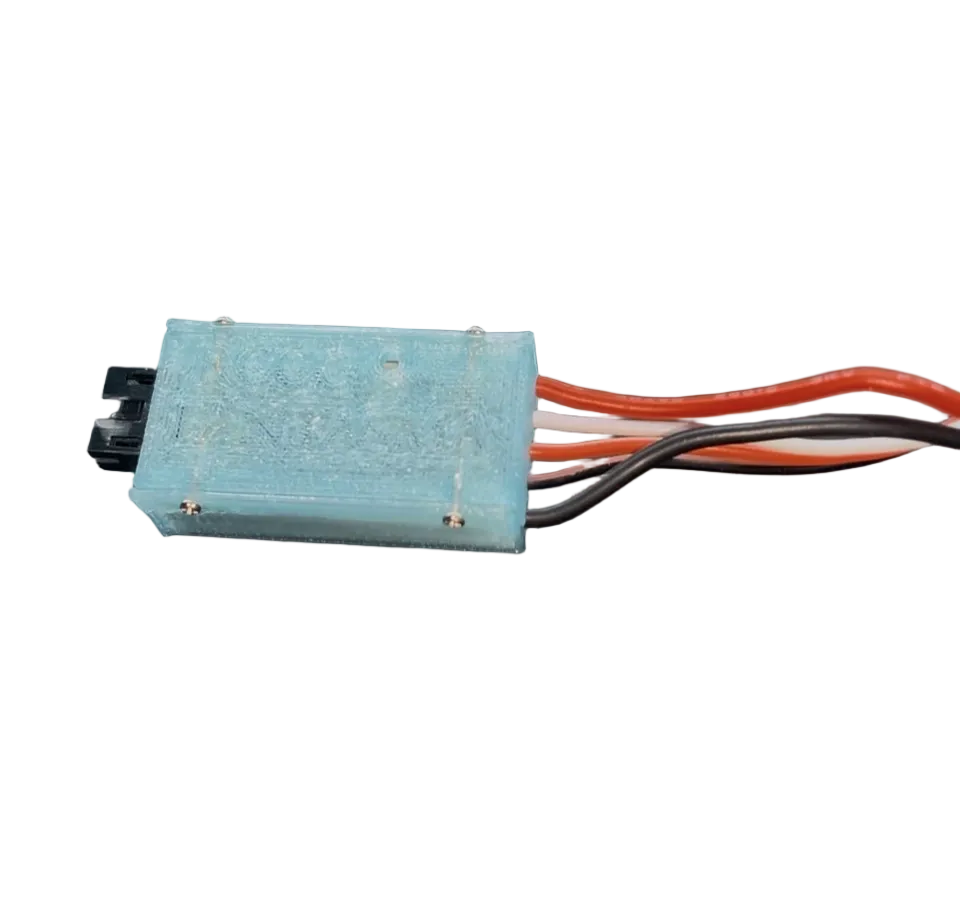

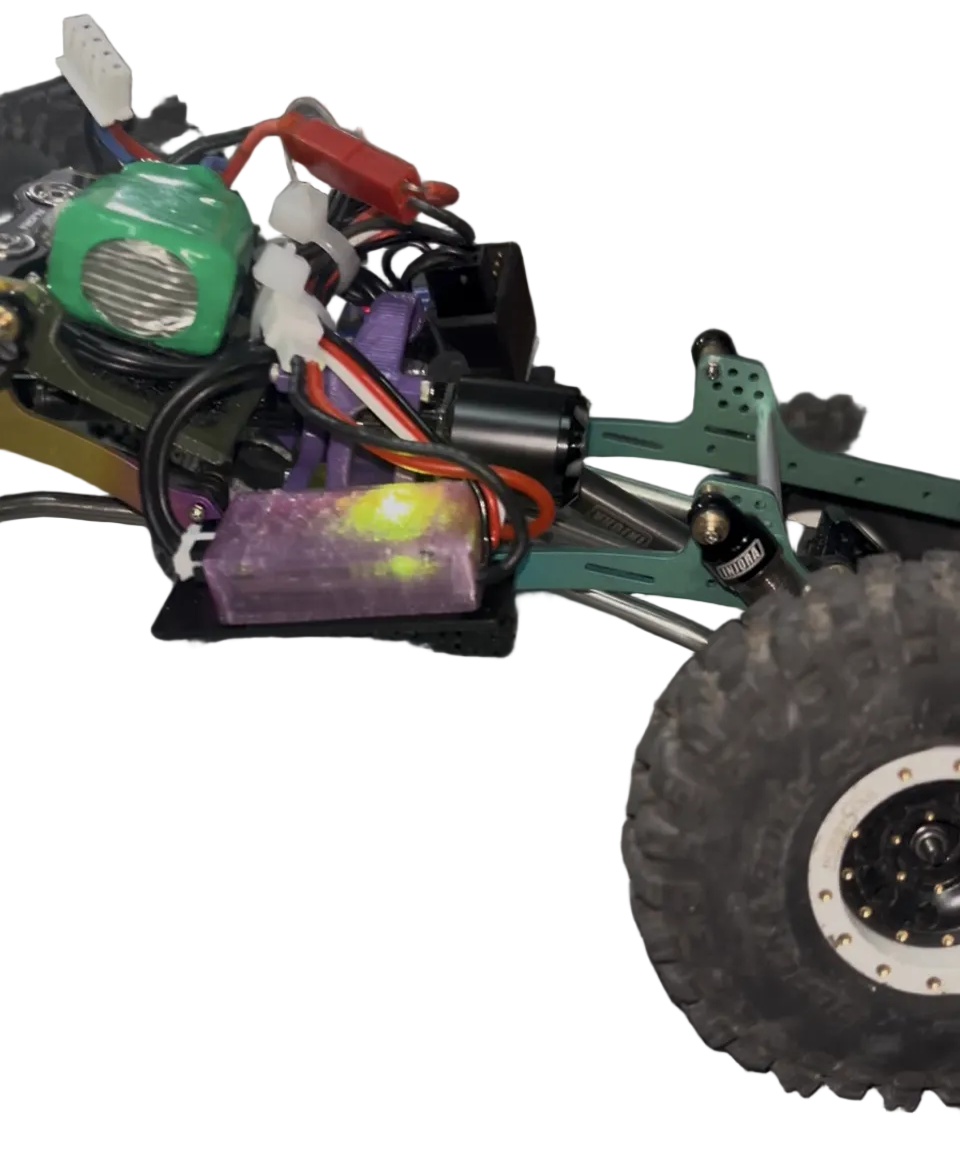

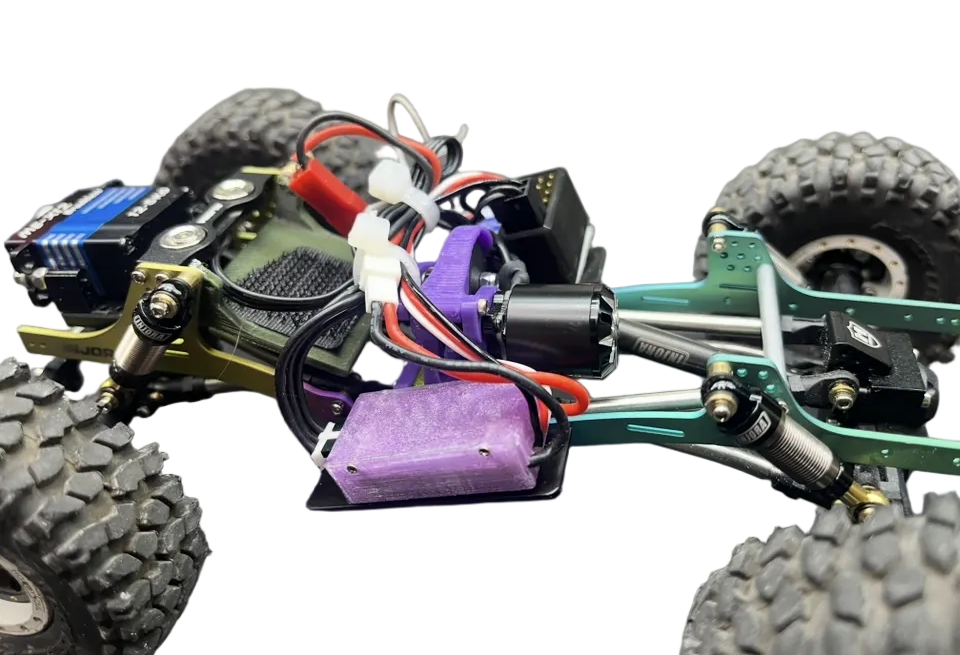

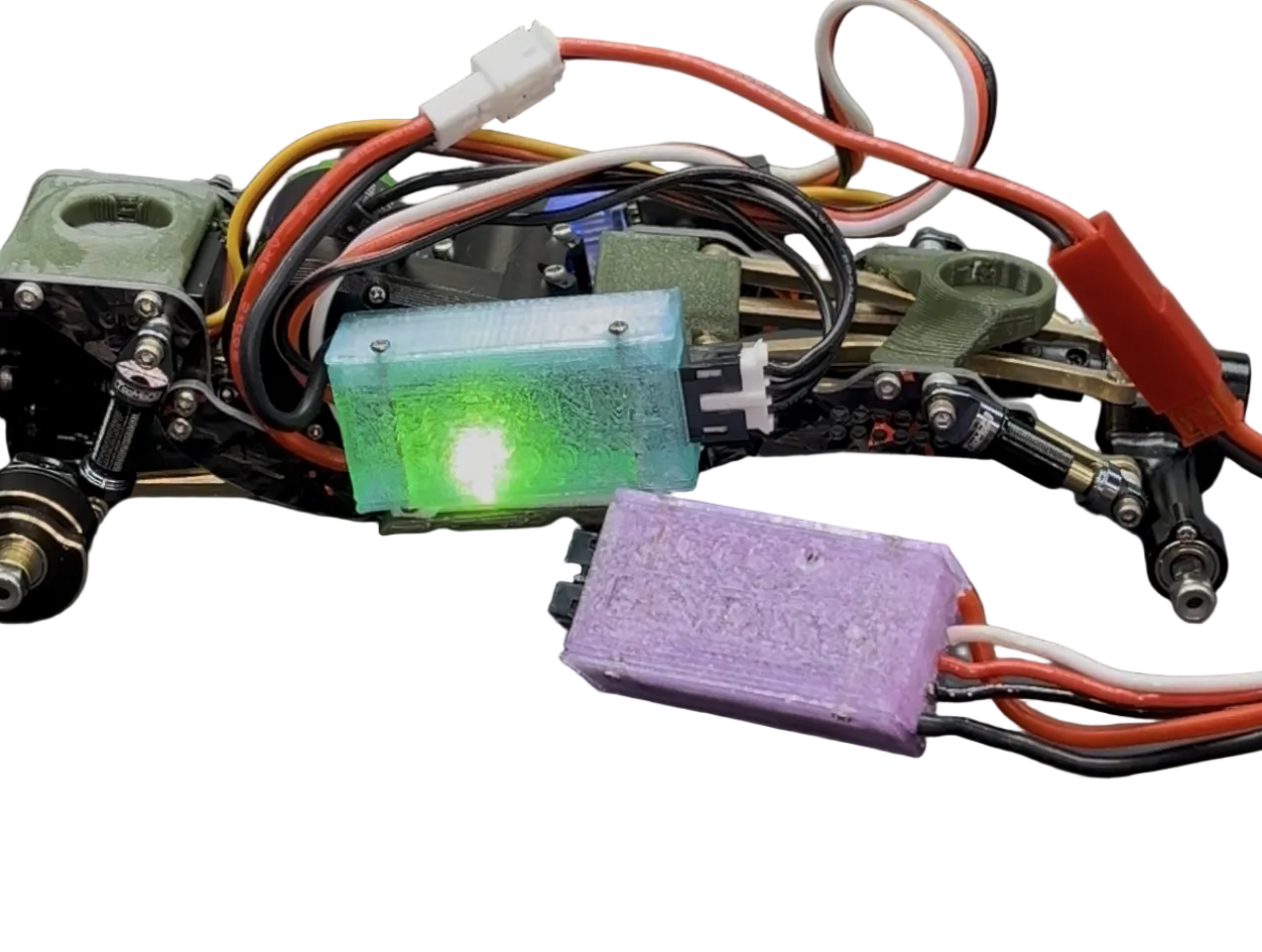

Each ESC is installed in an RCCC-designed two-piece 3D-printed protective case.

 Features

• ESC32 firmware

• Brushless, sensorless operation

• Smart ESC

• Surface mount components

• Compatible with 2S–6S LiPo batteries

• Adjustable BEC output: 5.5V, 6.5V, 7.4V, or 8.4V

• Linear BEC

• Smart Link programming support

• Forward / Reverse / Brake

• Two-piece 3D-printed protective case

PHANTASMA 30 Specifications

• Continuous Current: 30A

• Peak Current: 45A

• BEC Output: 5A continuous / 10A peak

• Dimensions: 28 × 14 mm

• Weight: 2.7 g

• XT60 battery connector

• 120 mm, 16 AWG battery leads

• 3.5 mm female motor bullet connectors

• 120 mm, 16 AWG motor leads

Included

• PHANTASMA ESC (30A)

• Two-piece 3D-printed protective case

WARNING:
This product contains small hardware and components that may present a choking hazard to children under 5 years old. Keep out of reach of small children.

3D PRINTED COMPONENT WARRANTY:
All RC Crawler Craze 3D-printed components include a 1-year free replacement warranty from the original purchase date.

If a 3D-printed component breaks due to accidental drops, crashes, normal use, or assembly damage, simply email us a photo of the damaged component and we will send a replacement free of charge.
